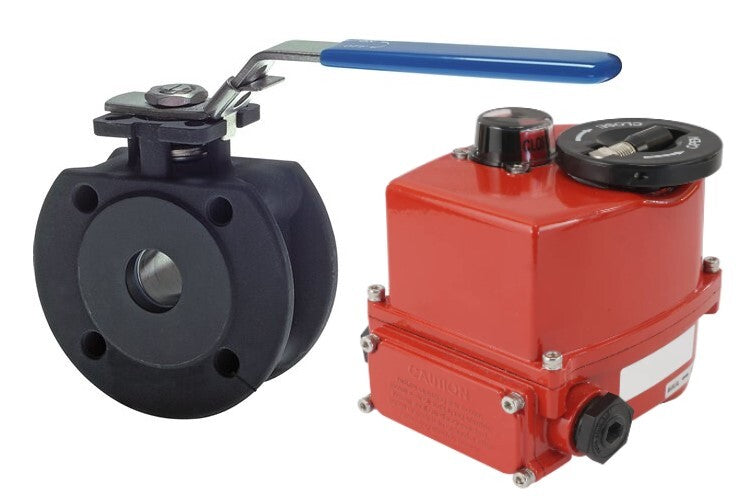

Electrical Actuated Flanged Ball Valve 2-Way DN25 PN40 Steel 100-240 V AC
This electrically actuated 2-way DN 25 flanged ball valve is made of steel with Teflon (PTFE) sealings. The valve is suitable for water, oil, air and fuel up to a maximum pressure of 40 bar (580 psi) and vacuum (max. -0.9 bar or -13 psi). The actuator operates with 3-point control at a voltage of 100-240 V AC. Two limit switches for electric position feedback. The valve operates within a temperature range from -20 to 180 °C (-4 to 356 °F). The coated aluminum actuator has an IP67 rating.
- Regular price
- $574.46
Description

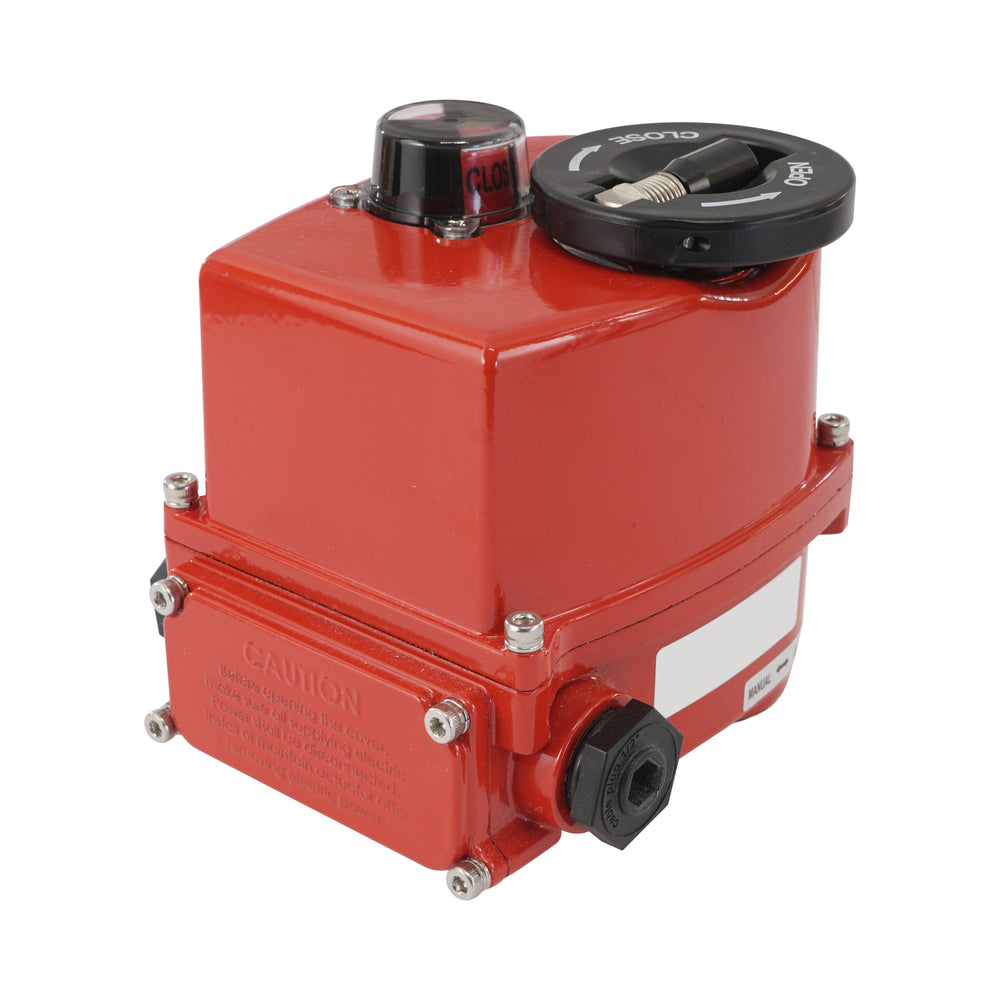

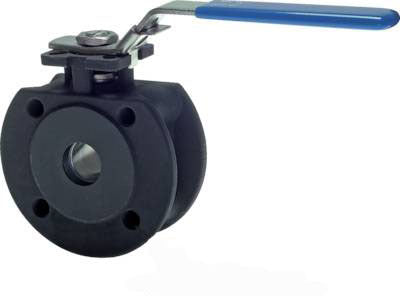

This electrically actuated 2-way DN 25 flanged ball valve with a full bore provides reliable on/off flow control. The valve is suitable for water, oil, air and fuel up to a maximum pressure of 40 bar (580 psi) and vacuum (max. -0.9 bar or -13 psi). The valve operates within a temperature range from -20 to 180 °C (-4 to 356 °F). The actuator can withstand ambient temperatures between -10 and 50 °C (14 and 122 °F), so especially for higher media temperatures make sure that the environment is well ventilated. The valve turns from fully closed to open in 13 seconds. The actuator requires a supply voltage of 100-240 V AC. The actuator features 3-point control. Check the manual for the wiring and installation instructions. The motor can be operated for 30 minutes continuously after which it needs a short resting period to cool down. When the valve reaches an end position, the electric motor is turned off and almost no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator can be mounted on the valve via the ISO 5211 flange. Before connecting the actuator, please read the manual carefully. The actuator has a robust aluminum housing with IP67 rating, provided that an appropriate cable is connected.
Pros:
- Unobstructed flow path thanks to the full bore design
- Easy installation and maintenance thanks to the DN 25/PN 40 flange
- Two extra limit switches for position feedback
- The actuator has a clear visual position indicator
- The valve features a handwheel for manual operation
- Better energy efficiency than a pneumatic actuated valve
Cons:
- The electric actuator is slower than a pneumatic actuator
- The installation length is only 49 mm (±2 mm), making it very compact, but it's not a standard size, so measuring is necessary for replacement
