Belimo Manifold 12 x Zone Valves 24VAC/DC 75s MP-Bus 1Nm IP40 EM-ECQ-12F/CQ24A-MPL

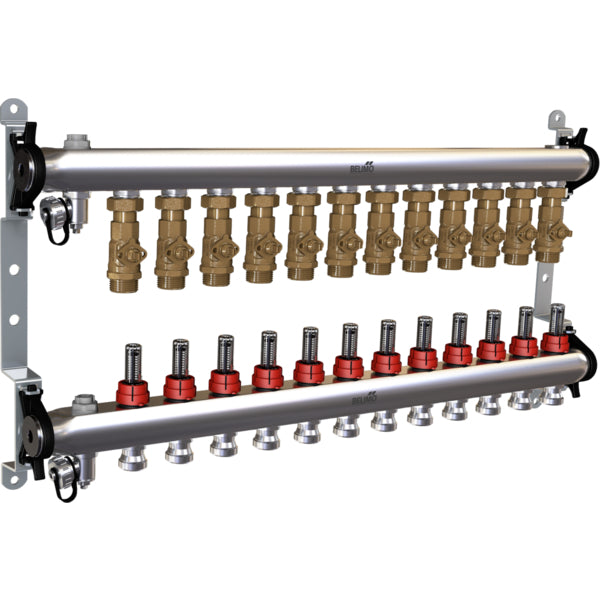

This is an electrical actuated Belimo manifold zone valve with a brass housing and sealing. The bore diameter of the valve is This valve withstands pressure up to 6 bar (87 psi). The valve can operate between 2 to 70 °C (36 to 158 °F). The actuator requires a supply voltage of 24 V AC/DC. The actuator is equipped with MP-Bus control type, enabling seamless integration and efficient management of connected devices in the system, ensuring reliable control and communication capabilities. The actuator opens/closes the valve in 75 seconds. There are 12 valves in a manifold block. The actuator has an IP40 rating.

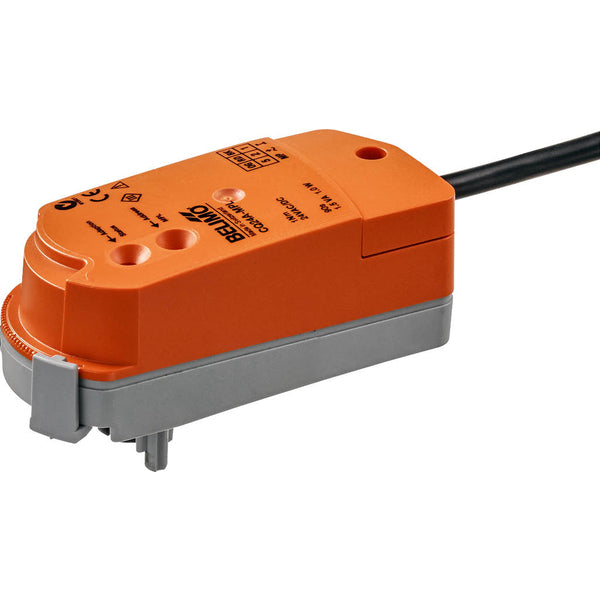

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Remove the actuator by clicking it out, and then use the actuator to rotate the valve spindle. The actuator can be hand-mounted onto the valve without requiring tools. Just ensure only vertical movements (Caution!). The pins should align with the flange holes. The mounting orientation can be configured in 180° increments in relation to the valve. The actuator's rotation angle can be adjusted in increments of 2.5° using a clip. This feature is used for setting the valve's maximum flow rate. The actuator gets its digital control signal from the superior controller via the MP-Bus and moves to the defined position. The MP connection serves as the communication interface and does not offer an analog measuring voltage.

Pros:

• Manual override
• The actuator is overload protected
• Visual position indicator

Cons:

• The time to open/close of 75 s is slow for some applications

Series:

The Belimo EM-ECQ-F series presents an efficient Energy Manifold designed for closed cold and warm water systems. Its snap-assembly actuator ensures easy installation, while the variable flow setting allows precise control. Operating pressure of 6 bar ensures reliable performance. Discover the versatility and reliability of Belimo zone valves as they optimize zone management and enhance system efficiency.
