Belimo Globe Valve DN200 Flange 65mm Stroke Kvs630 24VAC/DC 82s 2-10V 12000N IP65 Terminal H6200+GV12-24-SR-T

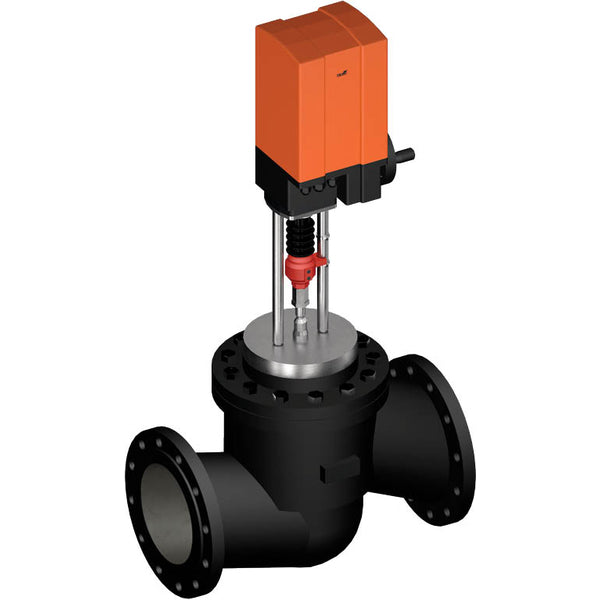

This is a Belimo 2-way globe valve with a cast iron housing and EPDM sealing. The bore diameter of the valve is DN 200 and the flange size is DN 200. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 0.6 bar (8.7 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 630 m3/h, equivalent to a Cv-value of 728.91 gpm. The valve's stroke length is 65 mm. The actuator requires a supply voltage of 24 V AC/DC. The modulating actuator is requires a 2-10 V input and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator opens/closes the valve in 82 seconds. The actuator has an IP65 rating.

The actuator is protected against short circuits, polarity reversal, and overloading. In a de-energized state or when the motor is switched off, upward and downward movements can be performed by pressing and turning the handwheel. The stroke is mechanically indicated on the bracket, and the indicator adjusts itself automatically. The actuator is factory-mounted onto the corresponding valve. The power connection is made with form closure, and power transmission is achieved through a torsion-secured coupling.

Pros:

• Equal percentage flow characteristic, the bypass has a linear characteristic
