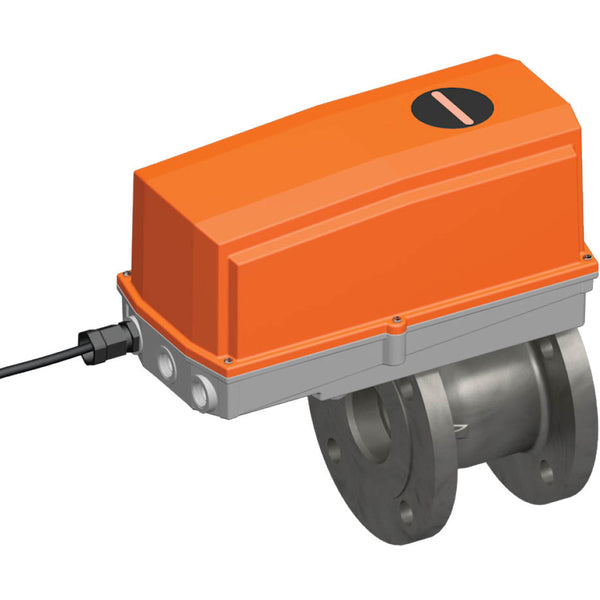

Belimo Characterized Valve DN15 Flange0 Kvs320 100-240VAC 35s 2-point 40Nm IP54 R6150W320-S8/GRC230G-5

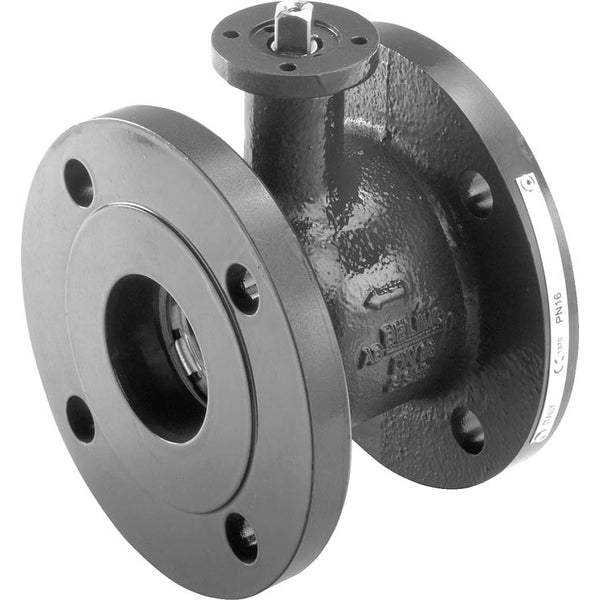

This is a Belimo 2-way characterized ball valve with a cast iron housing and EPDM sealing. The bore diameter of the valve is DN 150 and the flange size is DN 150. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 4 bar (58 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 320 m3/h, equivalent to a Cv-value of 370.24 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point (open-close) control. The actuator opens/closes the valve in 35 seconds. The actuator can be mounted on the valve via the ISO 5211 flange. The actuator has an IP54 rating.

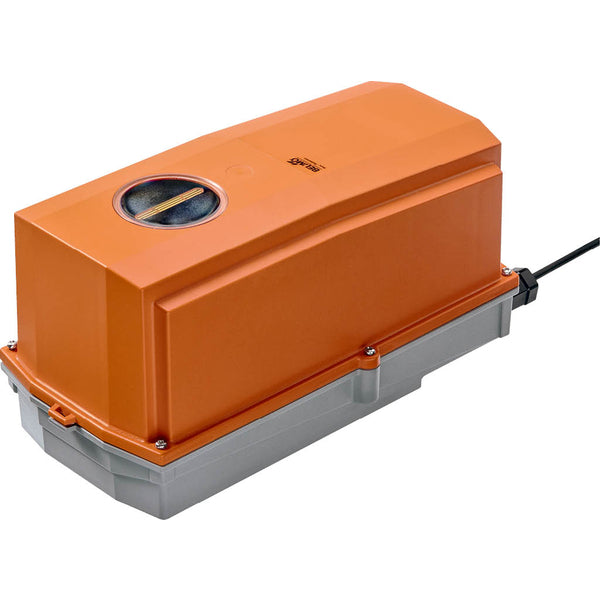

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the rotary or butterfly valve with a mounting flange. The mounting orientation relative to the valve can be selected in 90° increments. The rotation angle can be adjusted with mechanical end stops. The actuator is suitable for outdoor use and is protected against UV radiation, rain/snow, dirt/dust, air humidity, and frequent significant temperature fluctuations. To prevent internal condensation, it's recommended to use the actuator with separately orderable, factory-installed heating. The housing cover must be removed for manual override.

Pros:

• The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
