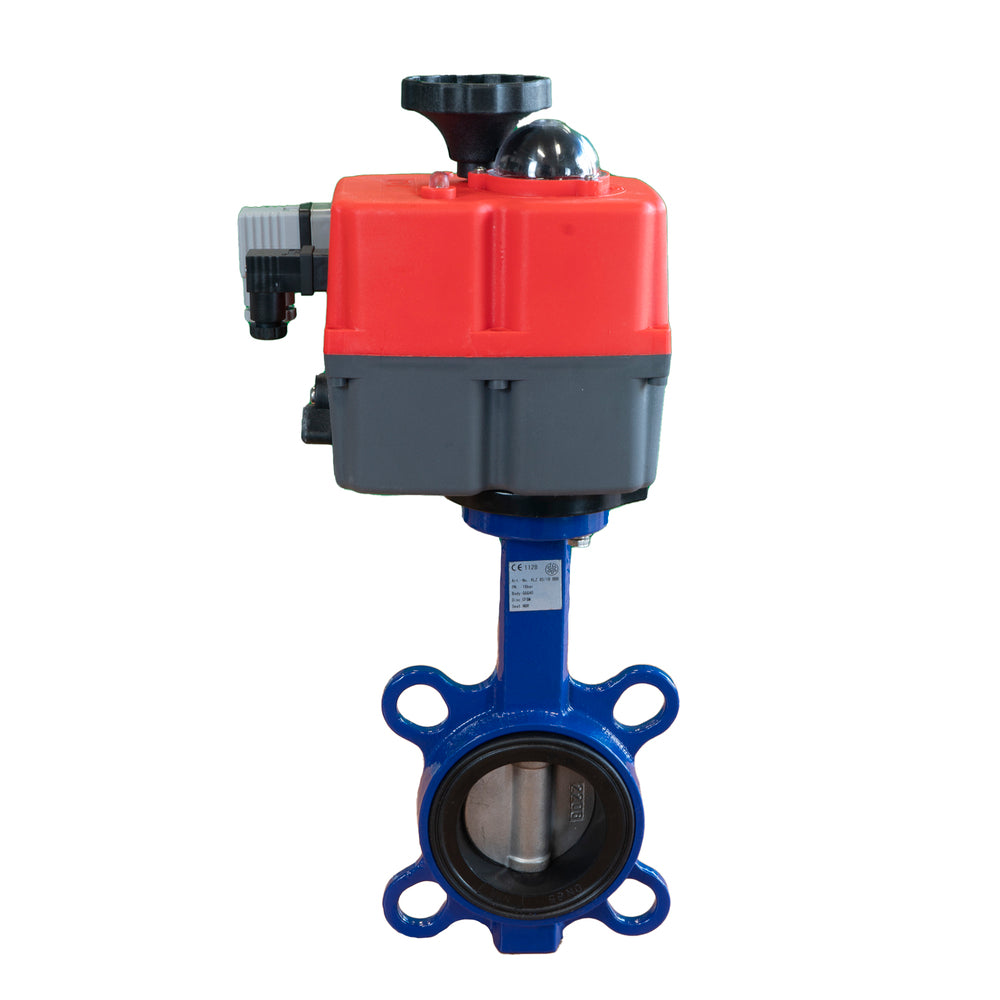

Electric Butterfly Valve DN80 24-240V AC/DC Wafer GGG40 PTFE Silicone J+J

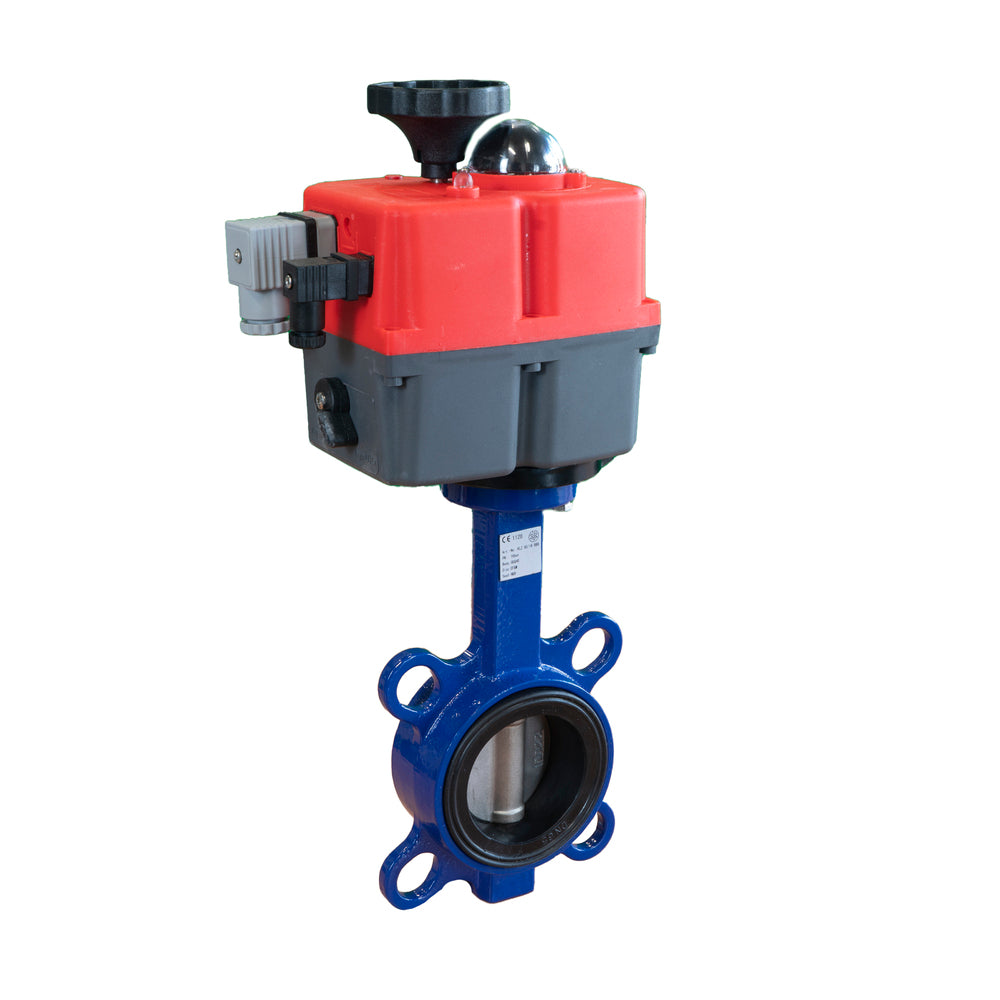

This electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 13 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The butterfly valve has a wafer type flange for connecting it to the piping, a nominal diameter of DN 80, and is rated up to 10 bar (145.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an PTFE (silicone) seal. It is suitable for media temperatures between -40 and 200 °C (-40 and 392 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F).

Pros:

• No risk of water hammer due to slow closing (13 s)
• The components are interchangeable and can be replaced individually if needed
• High Kv-value because the fluid flows in a straight line
