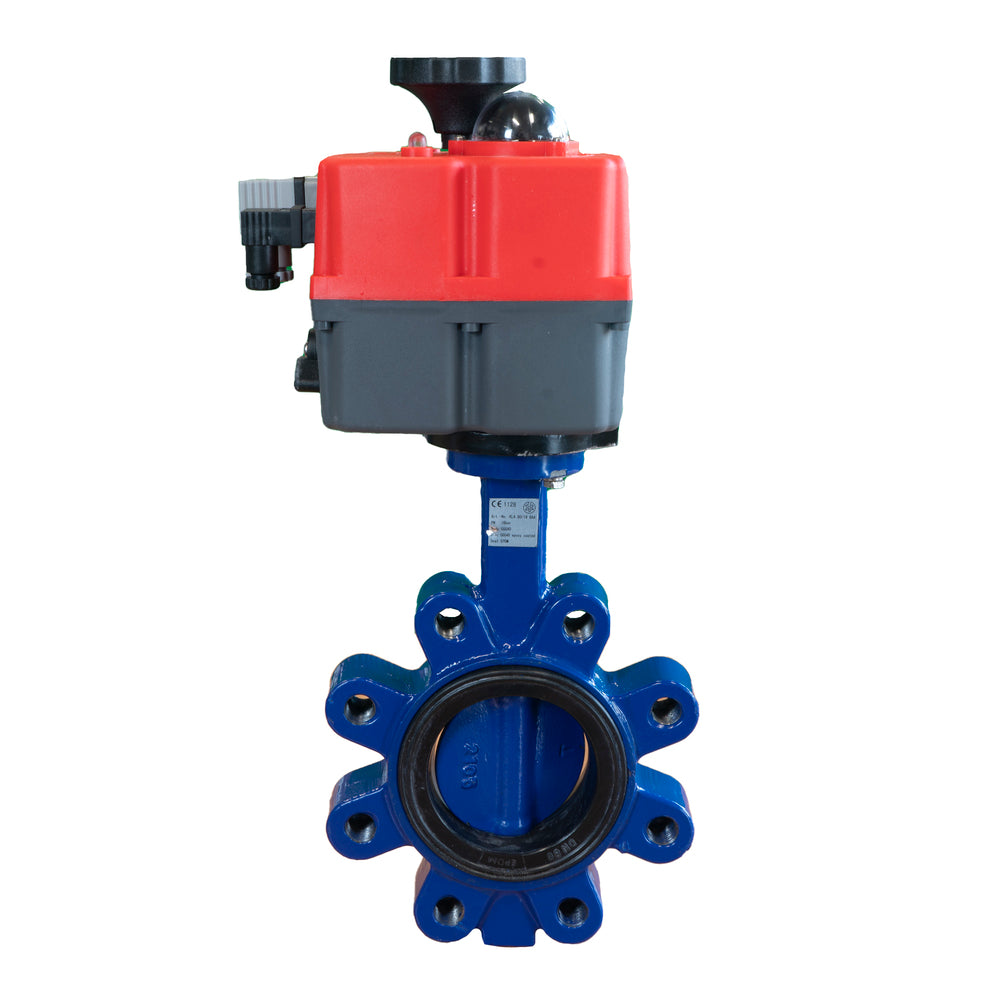

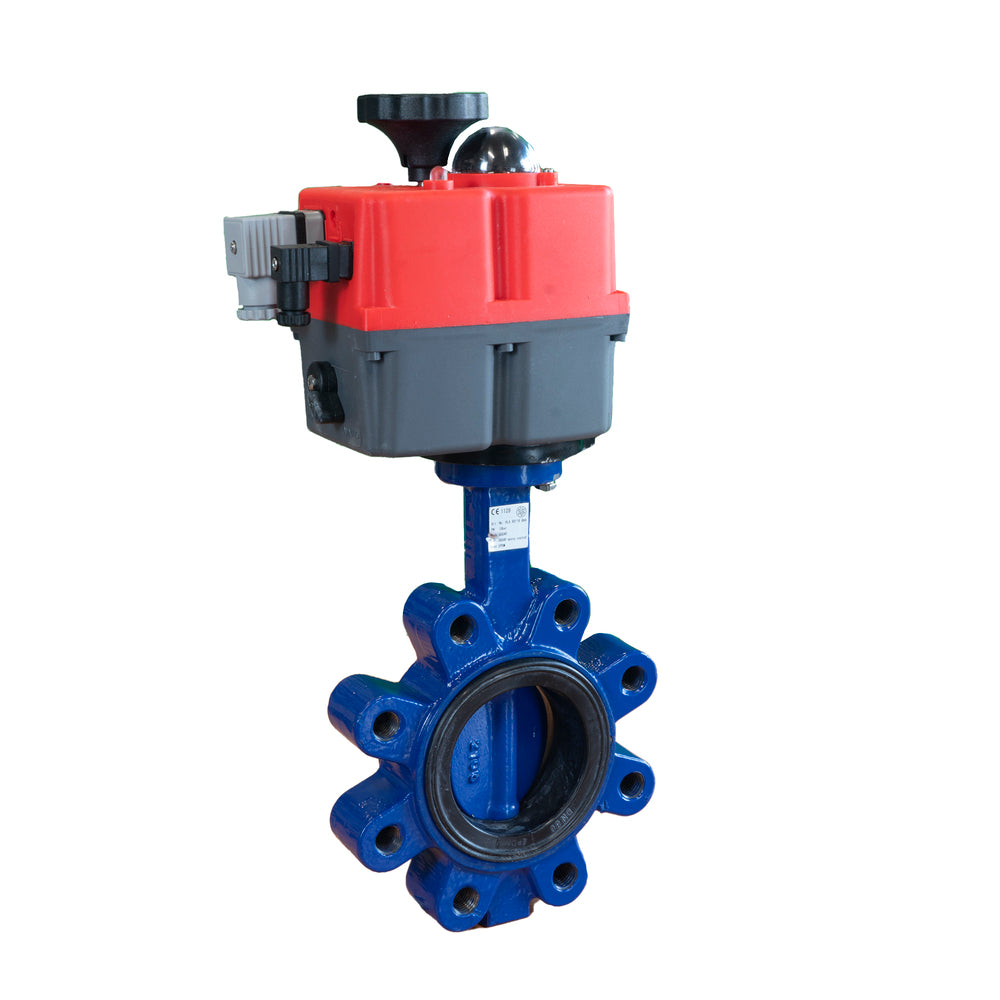

This modulating electrical actuator is offered in combination with a cast iron butterfly valve. The actuator has a digital positioning system (DPS). Actuator requires 24-240 V AC/DC to operate. The butterfly valve has a nominal diameter of 125 mm, suitable for media temperatures between 5 and 180 °C (41 and 356 °F), and max pressure of 6 bar (87.0 psi). Easily connected to your piping with a lug type flange. The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F).

View all
Note: product cannot be returned
$4359.62
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

501 reviews at TrustedShops

Description
Specifications
Downloads

Description

This modulating electrical actuator is offered in combination with a butterfly valve. It can turn the valve from 0-90 degrees in a time of 34 seconds. It requires a supply voltage of 24-240 V AC/DC has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. As a modulating actuator, it is equipped with a digital positioning system (DPS) meaning it can position the valve anywhere between 0-90 degrees. It requires a control signal of 4-20 mA/0-10 V for positioning. The butterfly valve has a lug type flange for connecting it to the piping, a nominal diameter of DN 125, and is rated up to 6 bar (87.0 psi) for non-hazardous fluids. Please note that the maximum pressure may deviate based on the medium type, so carefully check the datasheet. The butterfly valve has a cast iron GGG 40 housing, stainless steel disc and an FKM seal. It is suitable for media temperatures between 5 and 180 °C (41 and 356 °F). The actuator has a IP67 degree of protection and is suitable for an environmental temperature of -20 to 70 °C (-4 and 158 °F).

Pros:

  • No risk of water hammer due to slow closing (34 s)
  • The components are interchangeable and can be replaced individually if needed
  • High Kv-value because the fluid flows in a straight line
  • The actuator has a digital positioning system (DPS)

Downloads

Manual BFL
pdf
Download
Manual J4C-H140 (EN)
pdf
Download
Mounting Instructions DPS Kit
pdf
Download

Specifications

Nominal inner diameter
DN 125
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
24 V AC, 24 V DC, 120 V AC, 230 V AC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Cast iron
Seal material
The choice for sealing materials mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart for substance compatibility.
FKM (FPM)
Operation
The way the valve works. For example via an electric actuator, a pinch wheel or a pneumatic actuator.
Electric motor
Connections
Lug type
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
Cast iron GGG 40
Control signal
Open / close control is for example 2-point (1 control signal) or 3-point (2 control signals). Position control is for example 4-20 mA (recommended), 0-10 V, 2-10 V or 0-5 V.
0-10 V, 4-20 mA (modulating)
Max pressure difference at 20 °C (bar)
6
Position feedback
Open & close limit switch, 4-20 mA
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
5
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
180
Max pressure difference as end valve (bar)
6
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Duty cycle
75%
Article compression class
PN 6
ISO 5211 Flange type
Standard flange design to mount an actuator, the size is expressed in F-xx. Note that not every valve is suitable to directly mount an actuator, sometimes an adapter is required.
Flange F07
ISO 5211 Square head size (mm)
Size of the valve's square head according to ISO 5211.
14
Bore (mm)
125
Disc material
Stainless steel
Temperature (°C)
-20 °C to 70 °C
Manual override
Yes
Operating time (s)
34
Max actuator torque (Nm)
The maximum rotary force that the actuator can deliver. Always choose a large safety factor, because the moment can increase strongly after (long) standstill or with dry media.
140
End contacts
2
Spindle material
Stainless steel
Material quality spindle
Stainless steel 420 (1.4034)
Spindle seal material
Teflon (PTFE)
Valve design
Centric
Peak power (VA)
A guideline of this maximum value is determined by multiplying the voltage by the amperage.
105.6
Regulation type on/off
No
