Belimo 3-Way Globe Valve DN65 Flange 18mm Stroke Kvs58 100-240VAC 150s 2/3-point 1500N IP54 H764N/SV230A-TPC

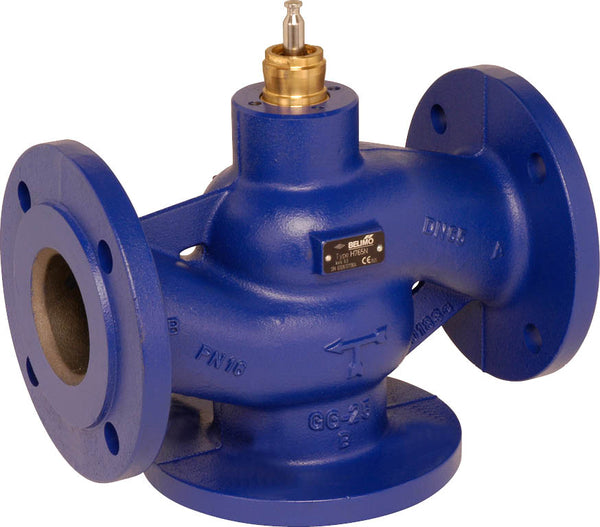

This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 58 m3/h, equivalent to a Cv-value of 67.11 gpm. The valve's stroke length is 18 mm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.
- Regular price
- $1,777.94 USD
Description
This is a Belimo 3-way globe valve with a coated cast iron housing and EPDM sealing. The bore diameter of the valve is DN 65 and the flange size is DN 65. The valve cone features an equipercentual characteristic according to VDI/VDE 2173, optimized within its opening range. The maximum pressure differential is 2.8 bar (40.6 psi). The valve can operate between 5 and 120 °C (41 to 248 °F). The Kv value of the valve is 58 m3/h, equivalent to a Cv-value of 67.11 gpm. The valve's stroke length is 18 mm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 150 seconds. The actuator has an IP54 rating.

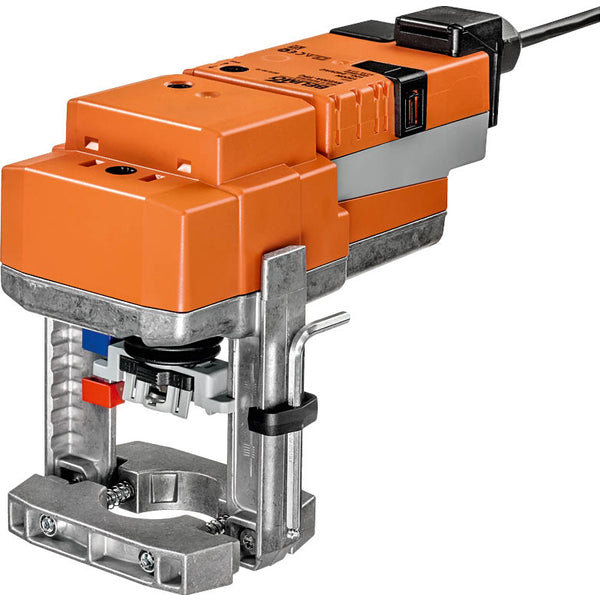

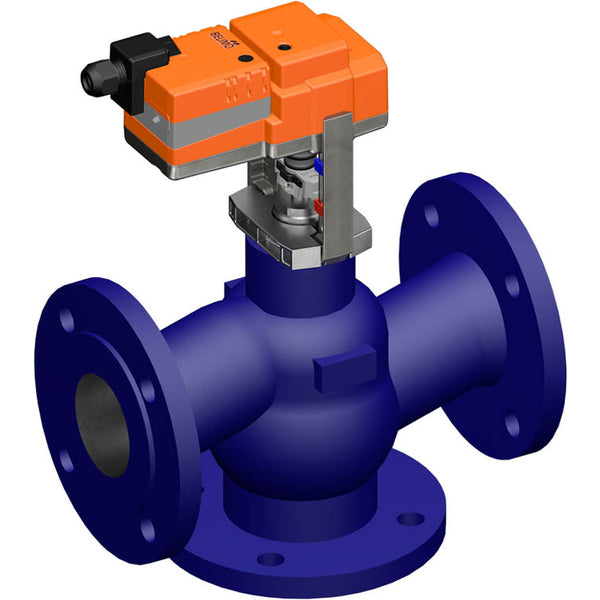

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible with a push-button, which disengages the gear train for as long as the button is pressed or locked. The stroke can be adjusted using a 4mm hexagon socket screw key inserted at the actuator's top, with the stroke shaft extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The default factory setting retracts the actuator stem.
Pros:
- Equal percentage flow characteristic, the bypass has a linear characteristic
