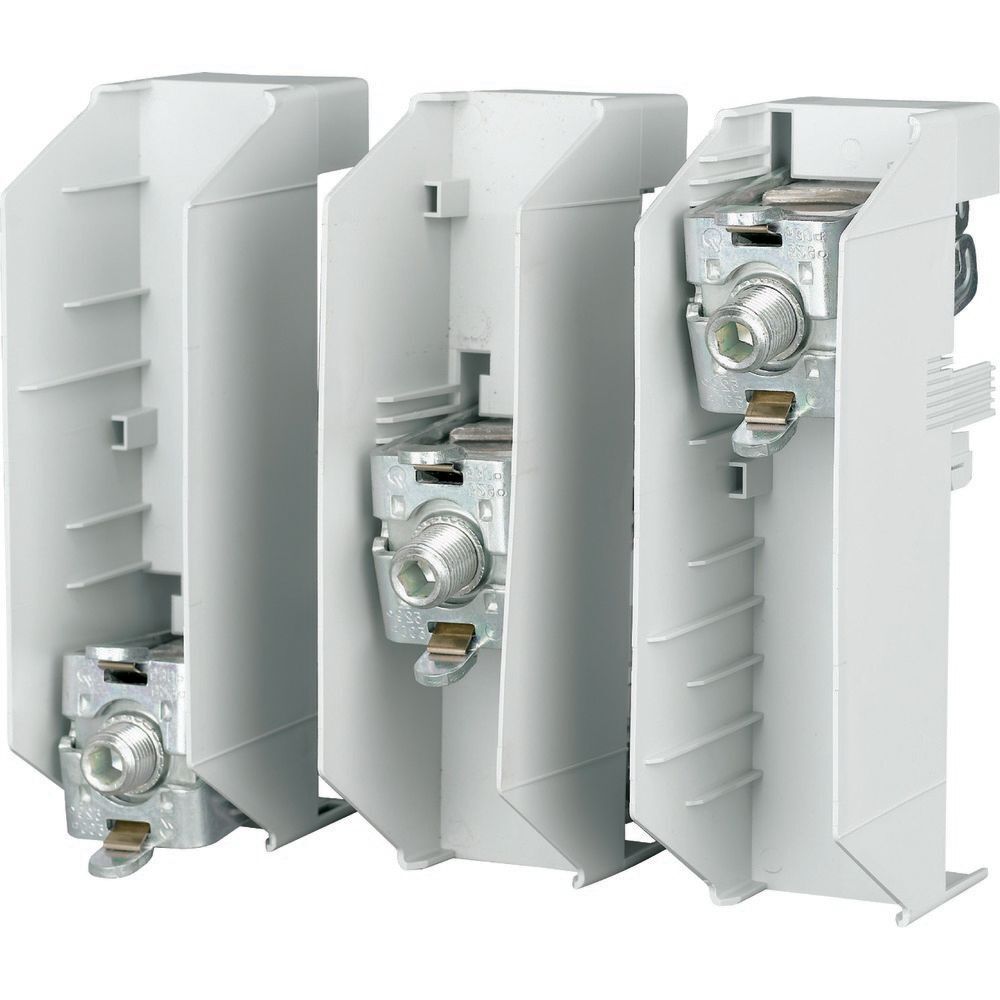

Eaton Terminal Plate 3P 95-300mm2 560A BBA-TP3/300 - 107185
The Eaton Industries XEffect connection kit is suitable for a rail system of 60mm with 3 poles and an adjustable pole pitch. It features a terminal capacity of 95-300mm² MCM 300-MCM 600, a nominal operational current Ie of 560A, and a width of 180-240mm. It can accommodate rail sizes of 20x5/10, 25x5/10, and 30x5/10 with a rail thickness of 5-10mm and a rail width of 12-30mm. The kit includes a shroud with adjustable width and can be used for double T profile connections, but passing through is not possible. It's silicone- and chlorine-free, self-extinguishing to UL 94, and temperature resistant up to 120°C. The track resistance is CTI 200.
- Regular price
- $159.53 USD
We sell only to registered businesses
Description
The Eaton Industries XEffect connection kit is suitable for a rail system of 60mm with 3 poles and an adjustable pole pitch. It features a terminal capacity of 95-300mm² MCM 300-MCM 600, a nominal operational current Ie of 560A, and a width of 180-240mm. It can accommodate rail sizes of 20x5/10, 25x5/10, and 30x5/10 with a rail thickness of 5-10mm and a rail width of 12-30mm. The kit includes a shroud with adjustable width and can be used for double T profile connections, but passing through is not possible. It's silicone- and chlorine-free, self-extinguishing to UL 94, and temperature resistant up to 120°C. The track resistance is CTI 200.
