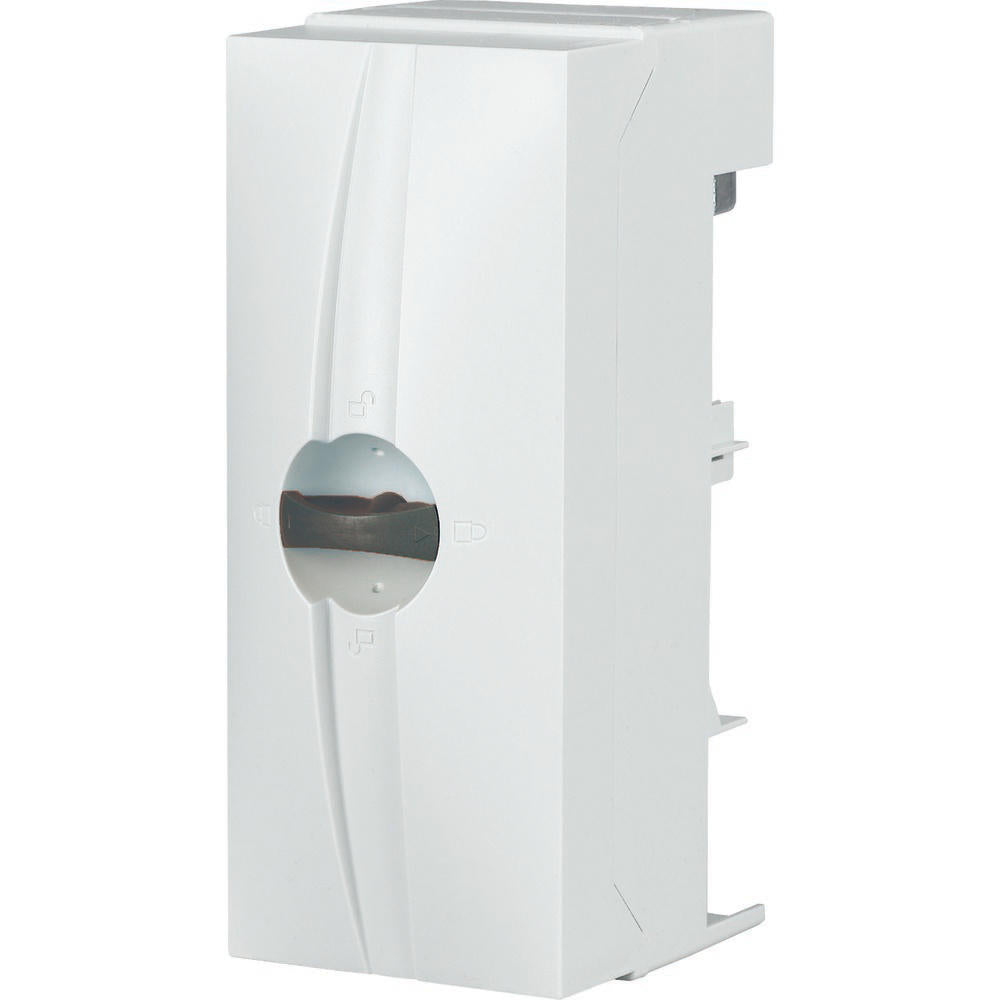

Eaton Terminal Plate 3P 35-120mm BBA-TP3/120 Rail Adapter - 107184
The Eaton Industries XEffect connection terminal board is used for a 60mm system with 3 poles and screw terminals. Suitable for rail measurements of 12x5/10 to 30x5/10, a double T profile and with a width of 81mm. It accepts a terminal capacity of 35 up to 120mm² or AWG2-MCM250 or 10x16x0.8, with a maximum nominal operating current of 440A. The terminal can be removed for the connection of uncut conductors, it is silicon and chlorine free, self-extinguishing to UL 94 and offers a track resistance of CTI 200. It withstands temperatures up to 120°C. However, passing through is not possible.
- Regular price
- $70.15 USD
We sell only to registered businesses
Description
The Eaton Industries XEffect connection terminal board is used for a 60mm system with 3 poles and screw terminals. Suitable for rail measurements of 12x5/10 to 30x5/10, a double T profile and with a width of 81mm. It accepts a terminal capacity of 35 up to 120mm² or AWG2-MCM250 or 10x16x0.8, with a maximum nominal operating current of 440A. The terminal can be removed for the connection of uncut conductors, it is silicon and chlorine free, self-extinguishing to UL 94 and offers a track resistance of CTI 200. It withstands temperatures up to 120°C. However, passing through is not possible.
