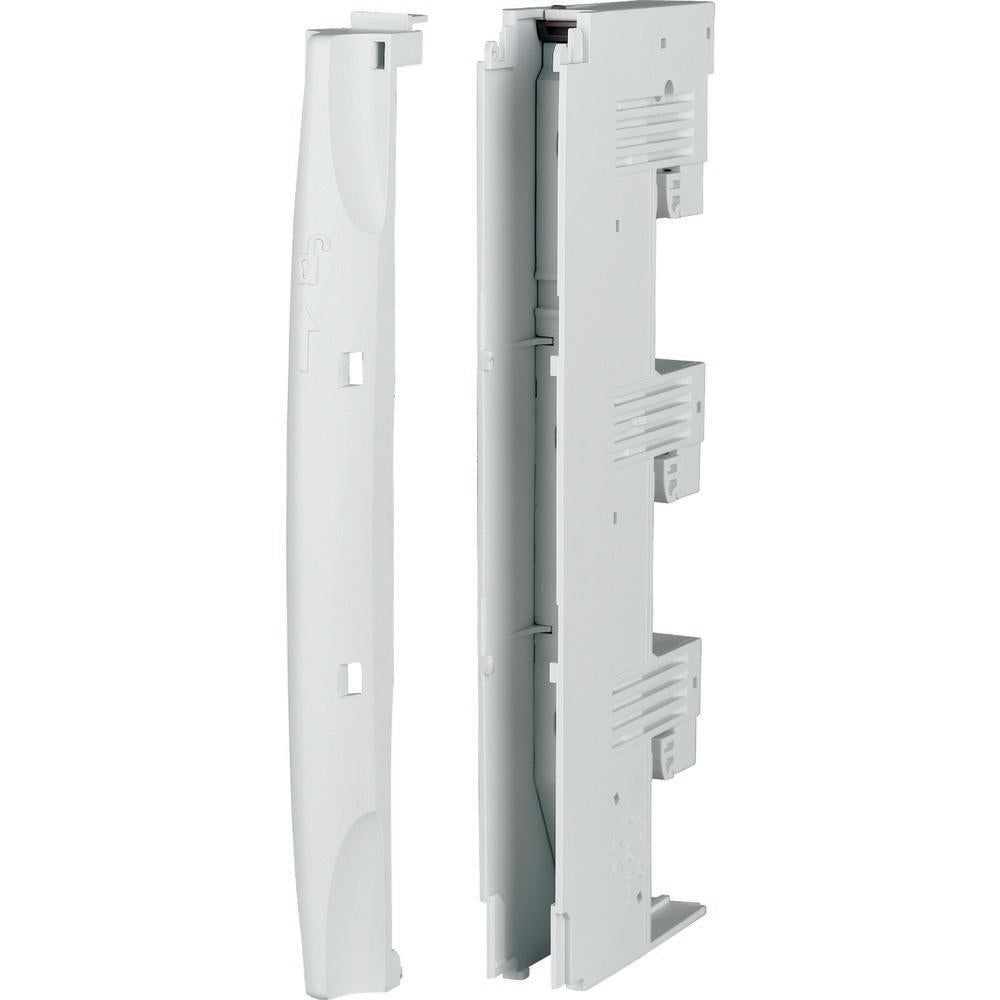

Eaton Terminal Module 3P 1.5-16mm 20mm BBA-TP3/16 - 107205
Notice: This product will be discontinued in the future
The Eaton Industries XEffect connection terminal board, built for a 60mm system and featuring three poles, has a spring-loaded terminal. Its terminal capacity ranges from 1.5mm² up to 16mm², or AWG16-AWG6, while nominal operating current (Ie) is 80A and its width measures 20mm. It can be fitted for a rail size 12x5/10 to 30x5/10, including a double T profile. Manufacturing attributes include silicon-free, chlorine-free and self-extinguishing properties according to UL 94, track resistance CTI 200 and heat resistance up to 120 °C. It can be fixed directly onto busbars.
Notice: This product will be discontinued in the future
Description
The Eaton Industries XEffect connection terminal board, built for a 60mm system and featuring three poles, has a spring-loaded terminal. Its terminal capacity ranges from 1.5mm² up to 16mm², or AWG16-AWG6, while nominal operating current (Ie) is 80A and its width measures 20mm. It can be fitted for a rail size 12x5/10 to 30x5/10, including a double T profile. Manufacturing attributes include silicon-free, chlorine-free and self-extinguishing properties according to UL 94, track resistance CTI 200 and heat resistance up to 120 °C. It can be fixed directly onto busbars.
