Eaton T0 8-Pole 20A Surface Mount Main Switch - 207164

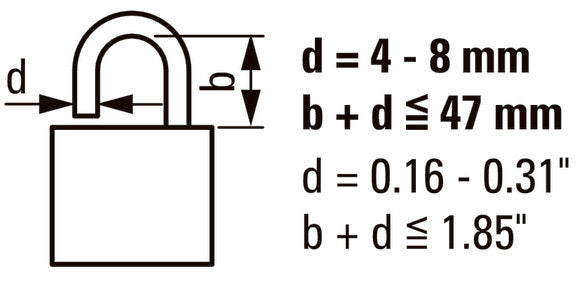

Industrial-grade 8-pole main switch with 20A rated continuous current and IP65 protection. Features 90° switching angle with black rotary handle and locking ring. Supports 5.5 kW motor rating at AC-23A (400V 50-60Hz). Includes STOP function and lock-out capability in OFF position. Compliant with IEC/EN 60947-3 standards for switch-disconnectors. Includes 4 contact units for versatile installation.
- Regular price
- $109.89 USD
We sell only to registered businesses
Description
Industrial-grade 8-pole main switch with 20A rated continuous current and IP65 protection. Features 90° switching angle with black rotary handle and locking ring. Supports 5.5 kW motor rating at AC-23A (400V 50-60Hz). Includes STOP function and lock-out capability in OFF position. Compliant with IEC/EN 60947-3 standards for switch-disconnectors. Includes 4 contact units for versatile installation.
Pros:
- IP65 protection rating for harsh environments
- Lockable in OFF position for enhanced safety
- Supports high 5.5 kW motor rating at 400V
- Surface mounting for easy installation
