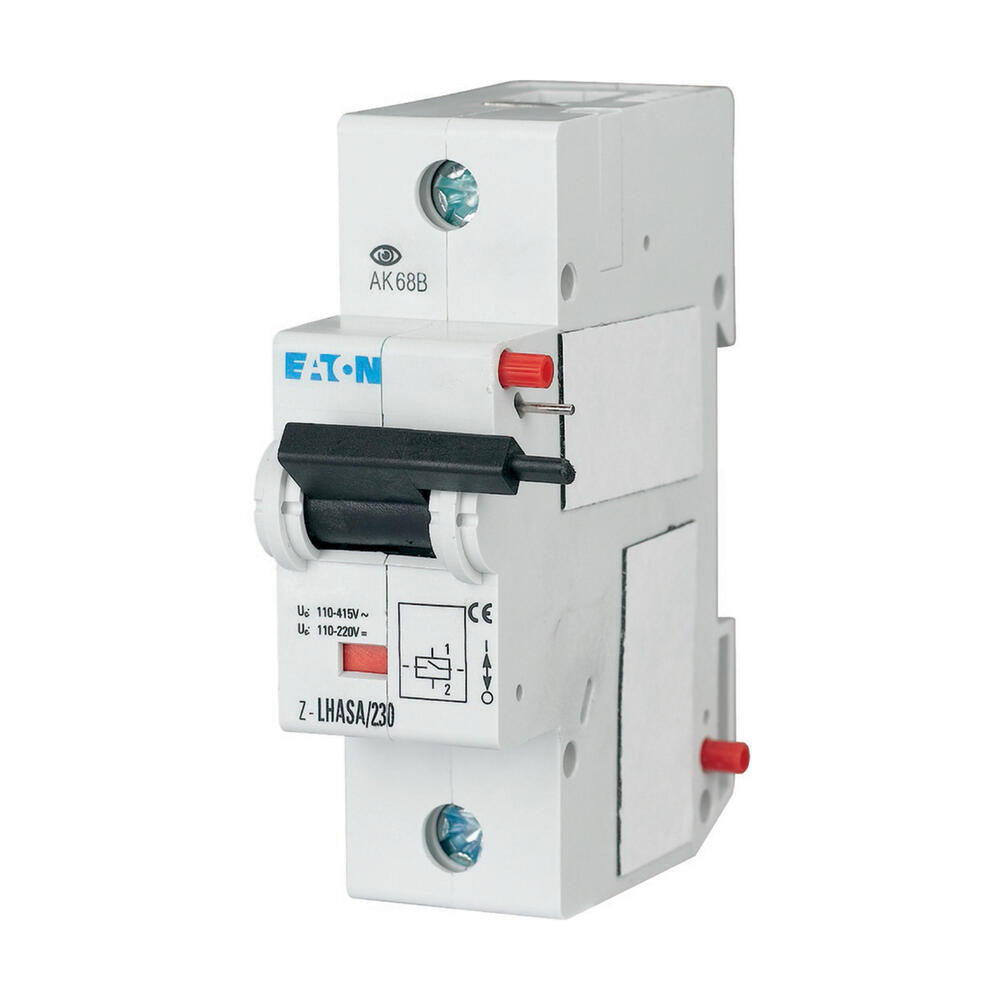

Eaton Shunt Release Z-LHASA/230 110-415V 1.5HP Up To 125A - 248442

Eaton Shunt Release Z-LHASA/230 110-415V 1.5HP Up To 125A - 248442
Eaton Shunt Release Z-LHASA/230 110-415V 1.5HP Up To 125A - 248442
Image may vary slightly
See specifications for accurate information.
Reference: E3DSA
Brand: EATON INDUSTRIES
Mfr. Part: 248442

The Eaton Industries Xpole auxiliary device is a modular, shunt release device designed for MCB up to 125A with a voltage range of 110-415V AC. It has a maximum current consumption at switch-on time Un of 2 A and operates at a frequency of 50/60hz. The device can be retrofitted, has a standard front dimension of 45 mm and a mounting width of 1.5 space units (27mm). It also features top-hat rail mounting and a terminal cross-section of 1–25 mm² for secure installation and operation.

View all
Note: product cannot be returned
$72.74
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 34 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries Xpole auxiliary device is a modular, shunt release device designed for MCB up to 125A with a voltage range of 110-415V AC. It has a maximum current consumption at switch-on time Un of 2 A and operates at a frequency of 50/60hz. The device can be retrofitted, has a standard front dimension of 45 mm and a mounting width of 1.5 space units (27mm). It also features top-hat rail mounting and a terminal cross-section of 1–25 mm² for secure installation and operation.

Downloads

Specifications

Device fitting
Miniature circuit breaker (MCB)
Additional equipment
Shunt release (for power circuit breaker)
Installed at the factory
No
Width in number of modular spacings
1.5
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Number of fault-signal switches
0
Rated switch current (A)
2
Rated voltage (V)
230
Voltage type for actuating
AC
With auto test for earth leakage function
No
Suitable for max. number of poles main contact unit (total)
1
Suitable for max. current main contact unit (A)
2
