Eaton Screw Connection NZM3 4P Standard Size 3 - 266780
Notice: This product will be discontinued in the future

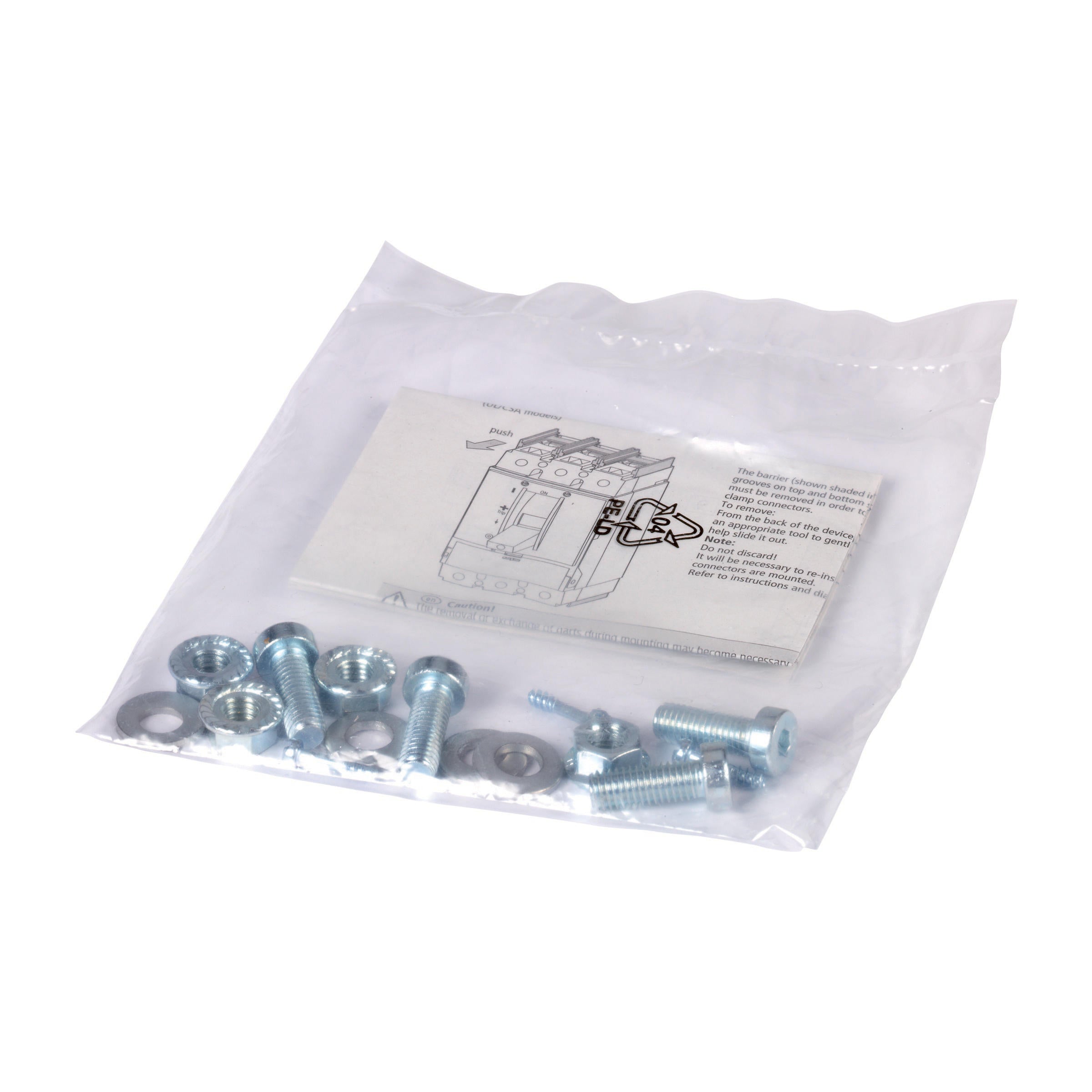

This MCCB wiring set by Eaton Industries offers various application options for global use, thanks to its wide range of optional accessories for the NZM circuit-breaker series. It has a flexible and easy mounting system due to its modular function groups. The part number contains parts for a terminal located at the top or bottom for 3 or 4-pole switches. It's standard for all NZM3, PN3, and N3 circuit-breakers. This also includes a conversion kit for circuit-breakers with a box terminal. For connection, use the special narrow version cable lug situated within the switch housing. If you're using a busbar, 400mm insulation heat-shrink tubing and a cover NZM3(-4)-XKSA are required. It is suitable for use where U e ≧ 525 VAC . For all other connection types, a cover NZM3(-4)-XKSA is required. It can be used for NZM3(-4), PN3(-4), N(N/O)3(-4).
Notice: This product will be discontinued in the future
Description
This MCCB wiring set by Eaton Industries offers various application options for global use, thanks to its wide range of optional accessories for the NZM circuit-breaker series. It has a flexible and easy mounting system due to its modular function groups. The part number contains parts for a terminal located at the top or bottom for 3 or 4-pole switches. It's standard for all NZM3, PN3, and N3 circuit-breakers. This also includes a conversion kit for circuit-breakers with a box terminal. For connection, use the special narrow version cable lug situated within the switch housing. If you're using a busbar, 400mm insulation heat-shrink tubing and a cover NZM3(-4)-XKSA are required. It is suitable for use where U e ≧ 525 VAC . For all other connection types, a cover NZM3(-4)-XKSA is required. It can be used for NZM3(-4), PN3(-4), N(N/O)3(-4).
