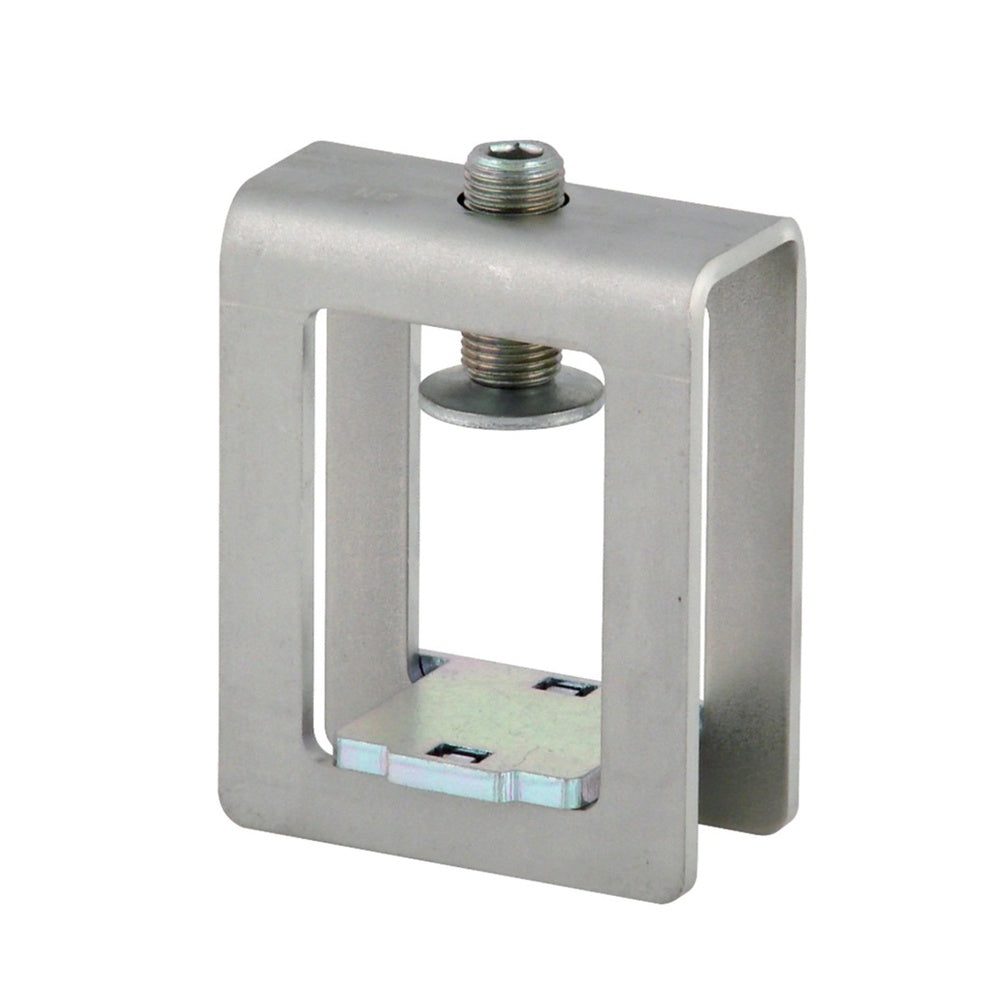

Eaton Profile Terminal 51x28mm AKP750 Power Rail Connector - 138364 [3 Pieces]
![Eaton Profile Terminal 51x28mm AKP750 Power Rail Connector - 138364 [3 Pieces]](http://tameson.com/cdn/shop/files/e3k69-00.2adce662.jpg?v=1721195505)
![Eaton Profile Terminal 51x28mm AKP750 Power Rail Connector - 138364 [3 Pieces]](http://tameson.com/cdn/shop/files/e3k69-00.2adce662.jpg?height=232&v=1721195505&width=232)
This Eaton Industries terminal is designed for connecting to busbars without the need for drilling. It features a clamp width of 82mm and is suitable for double T profile and systems of 60mm and 185mm. It is crucial to place a spacer between laminated copper busbars when connecting in parallel. With a maximum nominal operational current (Ie) of 1600A, it can also accommodate a maximum conductor cross-section of 750mm² and features a terminal area of 51x5-28. This component is specifically designed for applications involving a busbar thickness of 40mm and a busbar width of 30mm.
Contains 3 pieces
- Regular price
- $244.46 USD
We sell only to registered businesses
Description
This Eaton Industries terminal is designed for connecting to busbars without the need for drilling. It features a clamp width of 82mm and is suitable for double T profile and systems of 60mm and 185mm. It is crucial to place a spacer between laminated copper busbars when connecting in parallel. With a maximum nominal operational current (Ie) of 1600A, it can also accommodate a maximum conductor cross-section of 750mm² and features a terminal area of 51x5-28. This component is specifically designed for applications involving a busbar thickness of 40mm and a busbar width of 30mm.
Contains 3 pieces
