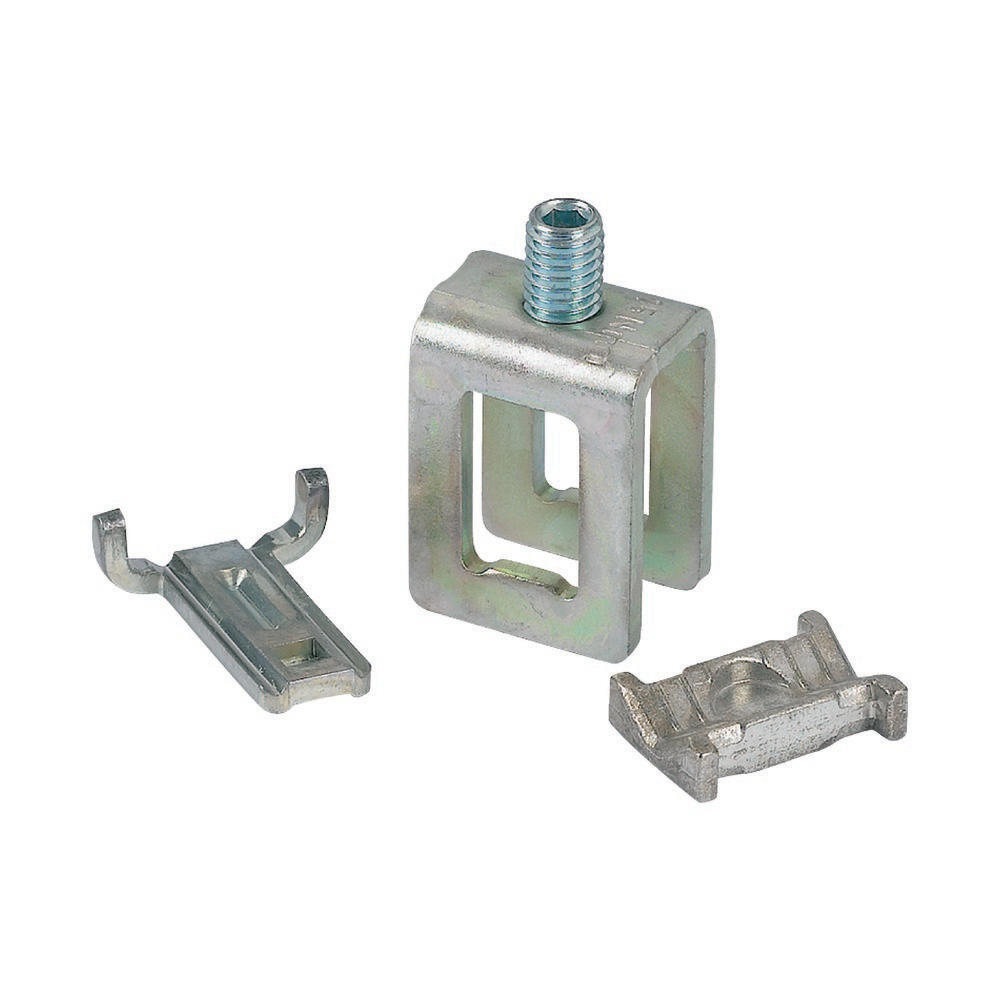

Eaton Power Rail Clamp For Cu 12X5 K12X5-1 - 002281 [10 Pieces]

Eaton Power Rail Clamp For Cu 12X5 K12X5-1 - 002281 [10 Pieces]
Eaton Power Rail Clamp For Cu 12X5 K12X5-1 - 002281 [10 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3DR9-X10
Brand: EATON INDUSTRIES
Mfr. Part: 002281

The Eaton Industries XEnergy terminal clamp for busbar is specified for busbar thickness of 5mm and busbar width of 12mm. The clamp itself has a width of 25mm. It is suitable for connecting flat conductors and round conductors. It can accommodate a maximum conductor cross-section of 35mm² and is capable of carrying a maximum nominal operational current (Ie) of up to 100A.

Contains 10 pieces

View all
Note: product cannot be returned
$108.58
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XEnergy terminal clamp for busbar is specified for busbar thickness of 5mm and busbar width of 12mm. The clamp itself has a width of 25mm. It is suitable for connecting flat conductors and round conductors. It can accommodate a maximum conductor cross-section of 35mm² and is capable of carrying a maximum nominal operational current (Ie) of up to 100A.

Contains 10 pieces

Downloads

Specifications

Busbar thickness (mm)
5 mm to 5 mm
Busbar width (mm)
12 mm to 12 mm
Suitable for
Flat rail
Width clamp (mm)
25
Max. conductor cross section (mm²)
35
Max. rated operation current Ie (A)
100
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
No
Suitable for strip conductor connection
Yes
