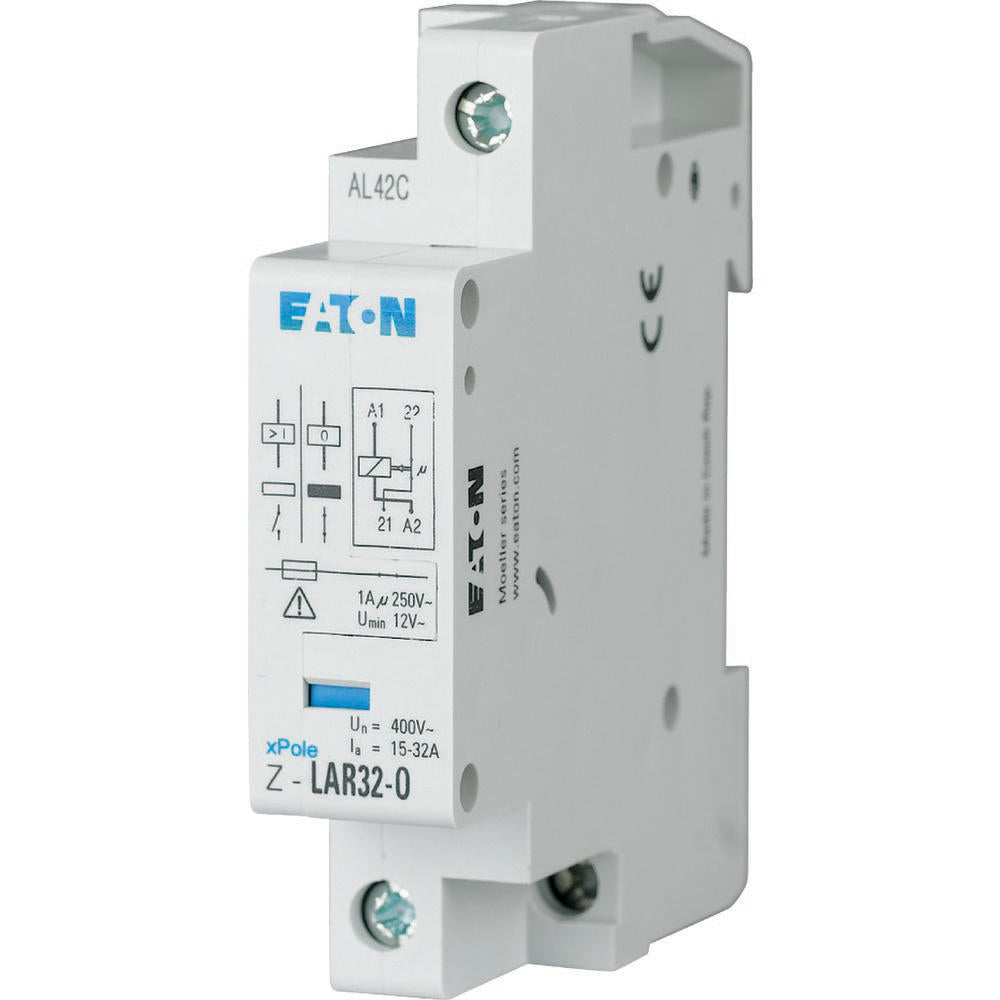

Eaton Power Disconnect Relay Z-LAR32-O 250 AC 15-32A 1V - 248258

Eaton Power Disconnect Relay Z-LAR32-O 250 AC 15-32A 1V - 248258
Eaton Power Disconnect Relay Z-LAR32-O 250 AC 15-32A 1V - 248258
Image may vary slightly
See specifications for accurate information.
Reference: E3DT3
Brand: EATON INDUSTRIES
Mfr. Part: 248258

The Eaton Industries Xpole is a load shedding relay with a rated current range of 15-32A. It comes with an integrated auxiliary contact of 1 N/C. It operates at a rated voltage of 250V, has an insulation voltage of 440V and can withstand an impulse voltage of 4 kV. It has a standard front dimension of 45 mm and a mounting width of 1 SU (17.5mm). It can be conveniently mounted on a top-hat rail. The terminal cross-section of the main circuit is 2x10 mm², and that of the auxiliary circuit is 2x2.5 mm².

View all
Note: product cannot be returned
$67.80
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 41 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries Xpole is a load shedding relay with a rated current range of 15-32A. It comes with an integrated auxiliary contact of 1 N/C. It operates at a rated voltage of 250V, has an insulation voltage of 440V and can withstand an impulse voltage of 4 kV. It has a standard front dimension of 45 mm and a mounting width of 1 SU (17.5mm). It can be conveniently mounted on a top-hat rail. The terminal cross-section of the main circuit is 2x10 mm², and that of the auxiliary circuit is 2x2.5 mm².

Downloads

Specifications

Rated voltage (V)
250
Rated current Iu (A)
15 A to 32 A
Just-operate current (A)
15 A to 32 A
Max. time-delayed switch-off (ms)
0
Max. continuous current (A)
32
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Rated current (control contacts) (A)
1
Max. switching voltage (control contacts) (V)
250
Max. switching power (control contacts) (VA)
7.36
Electrical lifespan (control contacts) (c (contacts))
100000
Mechanical lifetime (control contacts) (c (contacts))
0
Max. electrical switching cycles (c/h)
3600
Voltage-type
AC
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth (mm)
60
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
