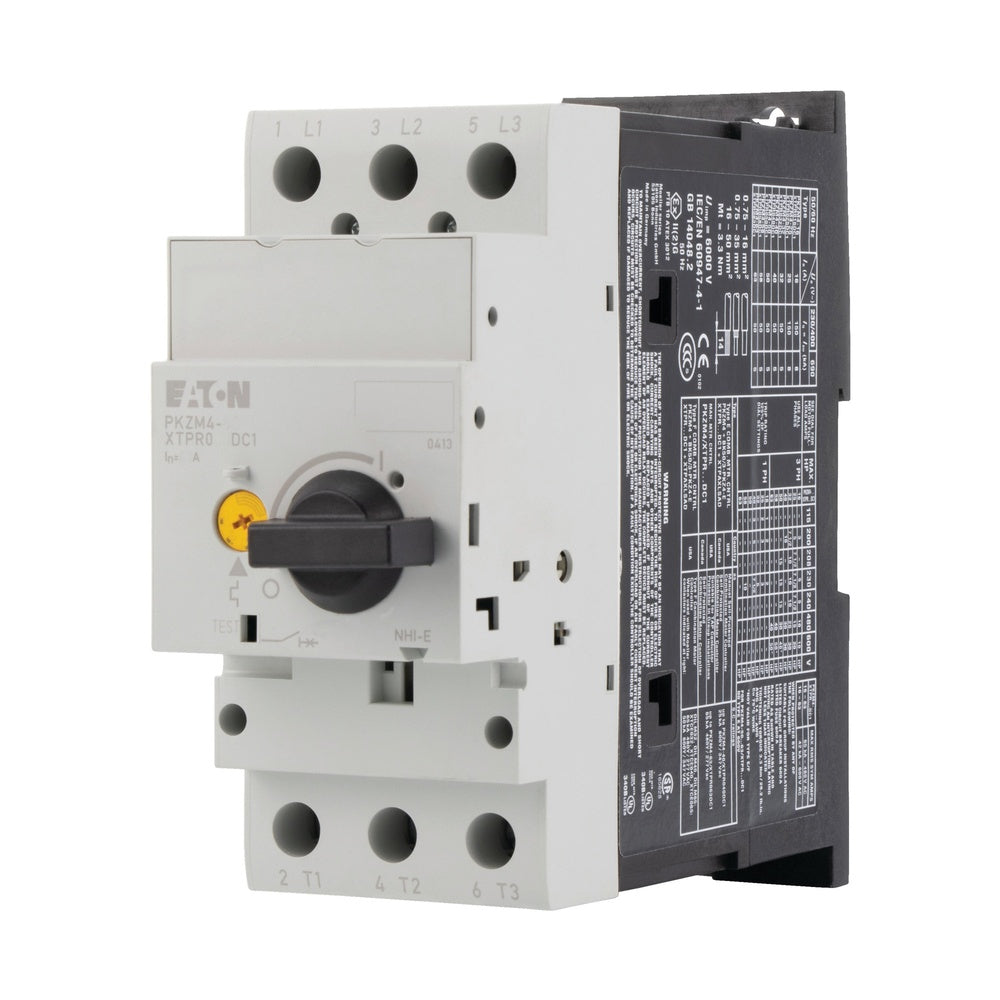

Eaton PKZM4-40 Motor Protection Circuit Breaker 32-40A - 222354
Three-pole motor protection circuit breaker with adjustable overload and non-delayed short-circuit release. Features phase failure sensitivity, screw terminals, and snap fitting capability. Rated for 690V operating voltage with IP20 protection. Compliant with IEC/EN60947 standards and VDE 0106 T.100 finger-proof requirements. Compatible with auxiliary contact and voltage release accessories.
- Regular price
- $268.26 USD
We sell only to registered businesses
Description
Three-pole motor protection circuit breaker with adjustable overload and non-delayed short-circuit release. Features phase failure sensitivity, screw terminals, and snap fitting capability. Rated for 690V operating voltage with IP20 protection. Compliant with IEC/EN60947 standards and VDE 0106 T.100 finger-proof requirements. Compatible with auxiliary contact and voltage release accessories.
Pros:
- Wide adjustment range of 32-40A
- Phase failure protection for enhanced motor safety
- Multiple mounting options with screw and snap fitting
- High operating voltage rating of 690V
