Reference: E3VEN
Brand: EATON INDUSTRIES
Mfr. Part: 286082

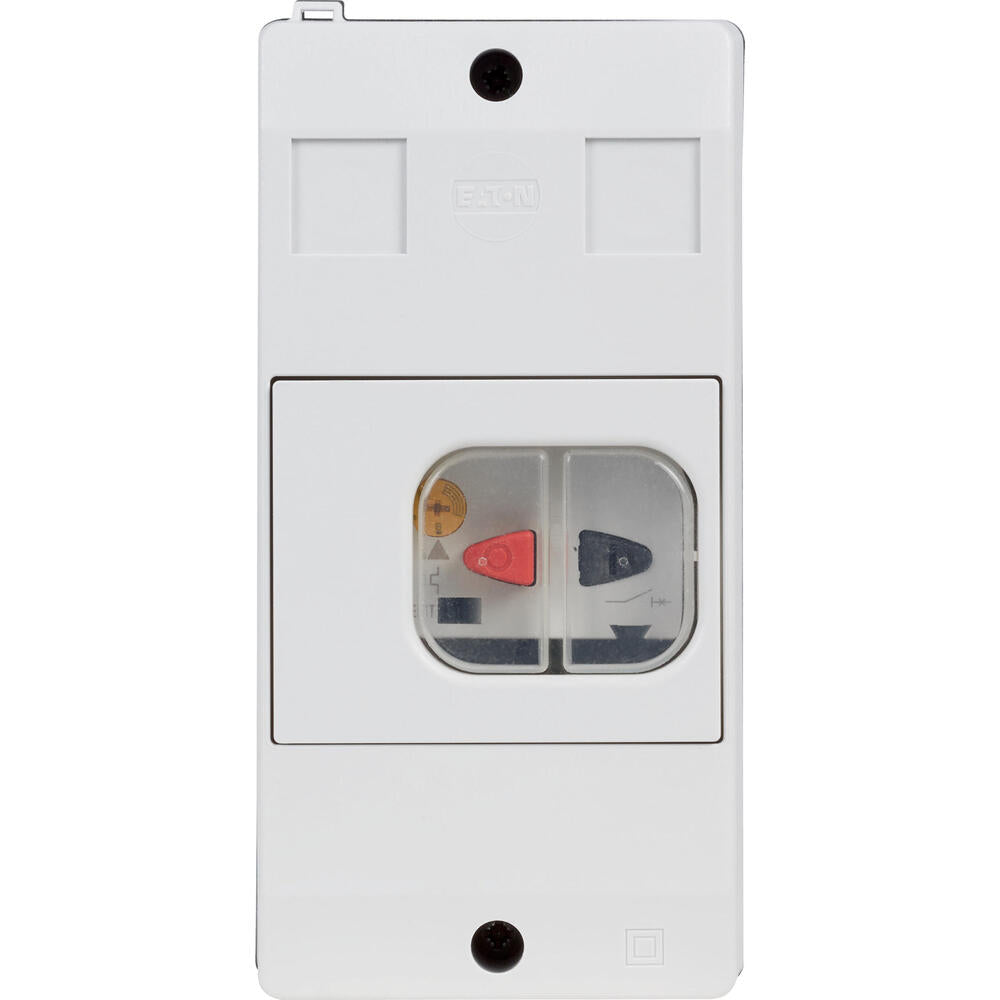

Pre-assembled 3-pole motor protection circuit breaker housed in protective enclosure, rated for 0.63-1A current range with push-button operation. Designed for 440V systems with 0.55kW power rating and IP20 protection class. Features complete assembly for efficient installation with reduced setup time.

View all
$101.46 USD
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 18 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 5 - 6 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

Pre-assembled 3-pole motor protection circuit breaker housed in protective enclosure, rated for 0.63-1A current range with push-button operation. Designed for 440V systems with 0.55kW power rating and IP20 protection class. Features complete assembly for efficient installation with reduced setup time.

Pros:

  • Pre-assembled design reduces installation time
  • Protected housing with IP20 rating
  • Precise current adjustment range 0.63-1A
  • Push-button operation for enhanced user control

Downloads

Brochure (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Overload release current setting
0.63..1 A
Adjustment range undelayed short-circuit release
15.5..15.5 A
With thermal protection
No
Phase failure sensitive
Yes
Switch off technique
Thermomagnetic
Rated operating voltage
440..440 V
Rated permanent current Iu
1 A
Rated operation power at AC-3, 230 V
0.12 kW
Rated operation power at AC-3, 400 V
0.25 kW
Type of electrical connection of main circuit
Screw connection
Type of control element
Push button
Device construction
Complete device in housing
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, AC
50 kA

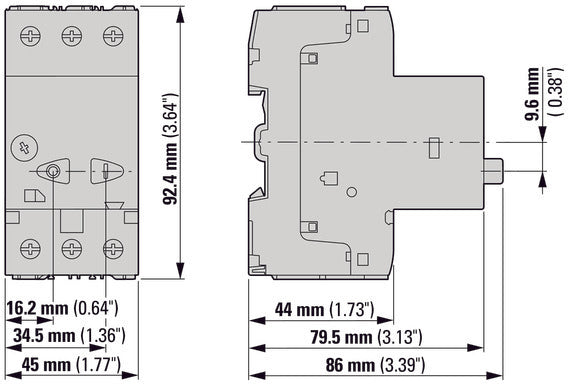

Depthi
158 mm
