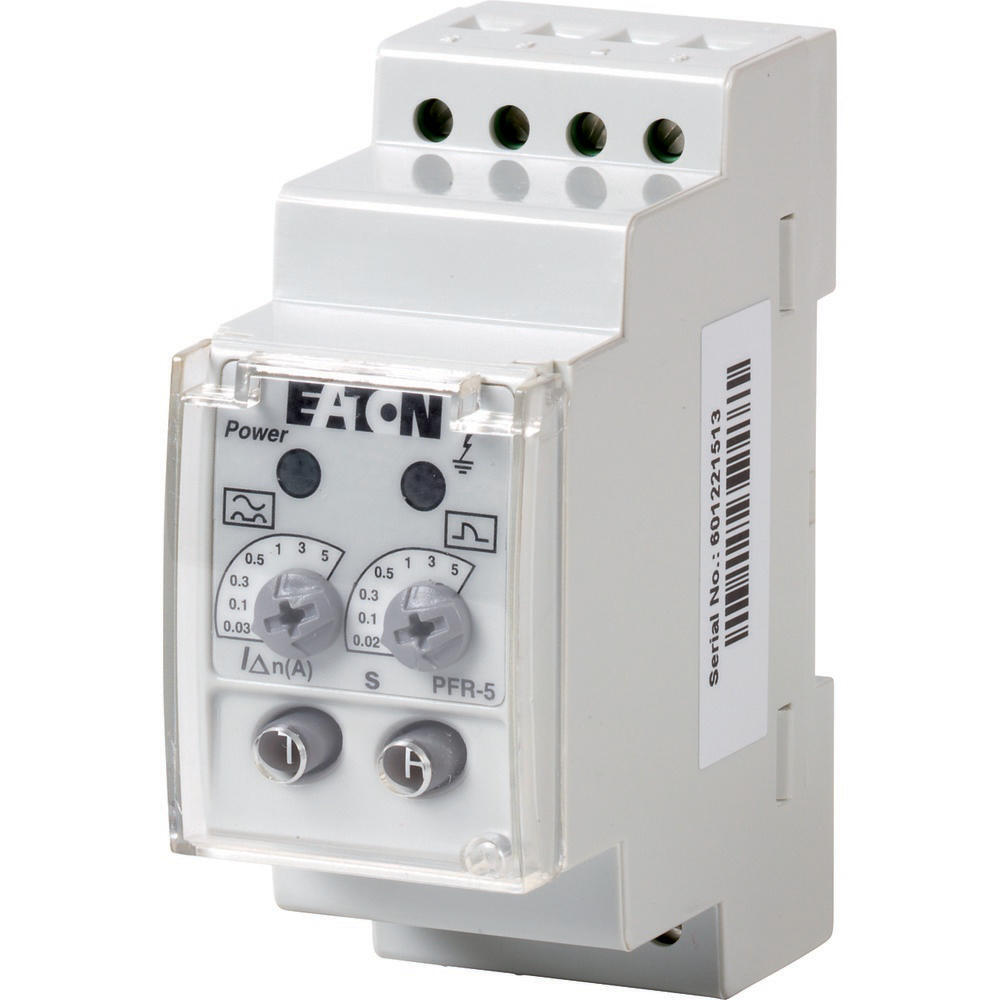

Eaton PFR-5 Earth-Leakage Circuit-Breaker 30mA-5A - 285557
Notice: This product will be discontinued in the future
The Eaton Industries MCCB residual current relay is an optional accessory for the circuit-breaker series NZM with global application possibilities. It offers modular functional groups for flexible and simple mounting. The device is sensitive to pulsed current, with a rated control voltage of Vs = 230 VAC (50/60 Hz). It has an integrated auxiliary contact (1 C/O) and requires a ring-type transformer, which is not included. The device is not UL/CSA approved. It provides adjustable fault current and delay time settings, as well as a red LED for fault current early warnings. The fault current is settable to 0.03, 0.1, 0.3, 0.5, 5 A, and the delay time is adjustable to 0.02, 0.1, 0.3, 0.5, 5 s. It is compatible with NZM1, NZM1-4, N1, N1-4, NZM2, NZM2-4, N2, N2-4, NZM3, NZM3-4, N3, N3-4, NZM4, NZM4-4, N4-4 circuit-breakers.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB residual current relay is an optional accessory for the circuit-breaker series NZM with global application possibilities. It offers modular functional groups for flexible and simple mounting. The device is sensitive to pulsed current, with a rated control voltage of Vs = 230 VAC (50/60 Hz). It has an integrated auxiliary contact (1 C/O) and requires a ring-type transformer, which is not included. The device is not UL/CSA approved. It provides adjustable fault current and delay time settings, as well as a red LED for fault current early warnings. The fault current is settable to 0.03, 0.1, 0.3, 0.5, 5 A, and the delay time is adjustable to 0.02, 0.1, 0.3, 0.5, 5 s. It is compatible with NZM1, NZM1-4, N1, N1-4, NZM2, NZM2-4, N2, N2-4, NZM3, NZM3-4, N3, N3-4, NZM4, NZM4-4, N4-4 circuit-breakers.
