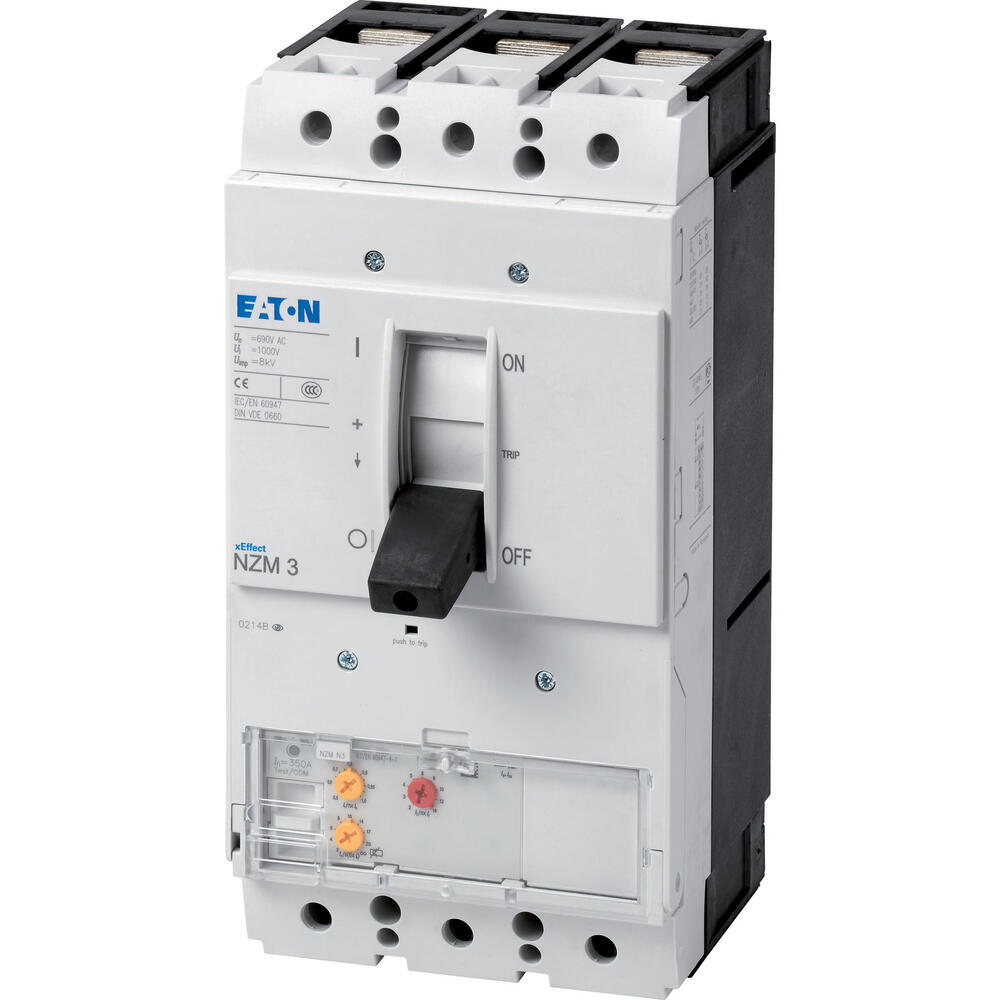

Eaton NZMN3-ME450 Circuit Breaker 3P 350A-450A - 284468
The Eaton Industries MCCB Motor Protection Circuit Breaker measures 140x166x275mm and features an overload protection setting range of 225-450A. The device, constructed for embedded installation, has a nominal continuous current of 450A and a screw connection for the main circuit. It utilizes electronic switch-off technology. Additionally, the NZM..-ME series circuit breakers fit various applications with just four compact sizes and are ideal for the IEC market. The versatile mounting is facilitated by modular function groups. Equipped with an electronic release for motor protection with phase failure sensitivity, these circuit breakers also include IEC/EN 60947-4-1, IEC/EN 60947-2, RMS value measurement and thermal memory. It features an adjustable time delay setting to manage current peaks tr:2-20 at 6xIr as well as infinity (without overload release).
- Regular price
- $2,779.50 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB Motor Protection Circuit Breaker measures 140x166x275mm and features an overload protection setting range of 225-450A. The device, constructed for embedded installation, has a nominal continuous current of 450A and a screw connection for the main circuit. It utilizes electronic switch-off technology. Additionally, the NZM..-ME series circuit breakers fit various applications with just four compact sizes and are ideal for the IEC market. The versatile mounting is facilitated by modular function groups. Equipped with an electronic release for motor protection with phase failure sensitivity, these circuit breakers also include IEC/EN 60947-4-1, IEC/EN 60947-2, RMS value measurement and thermal memory. It features an adjustable time delay setting to manage current peaks tr:2-20 at 6xIr as well as infinity (without overload release).
