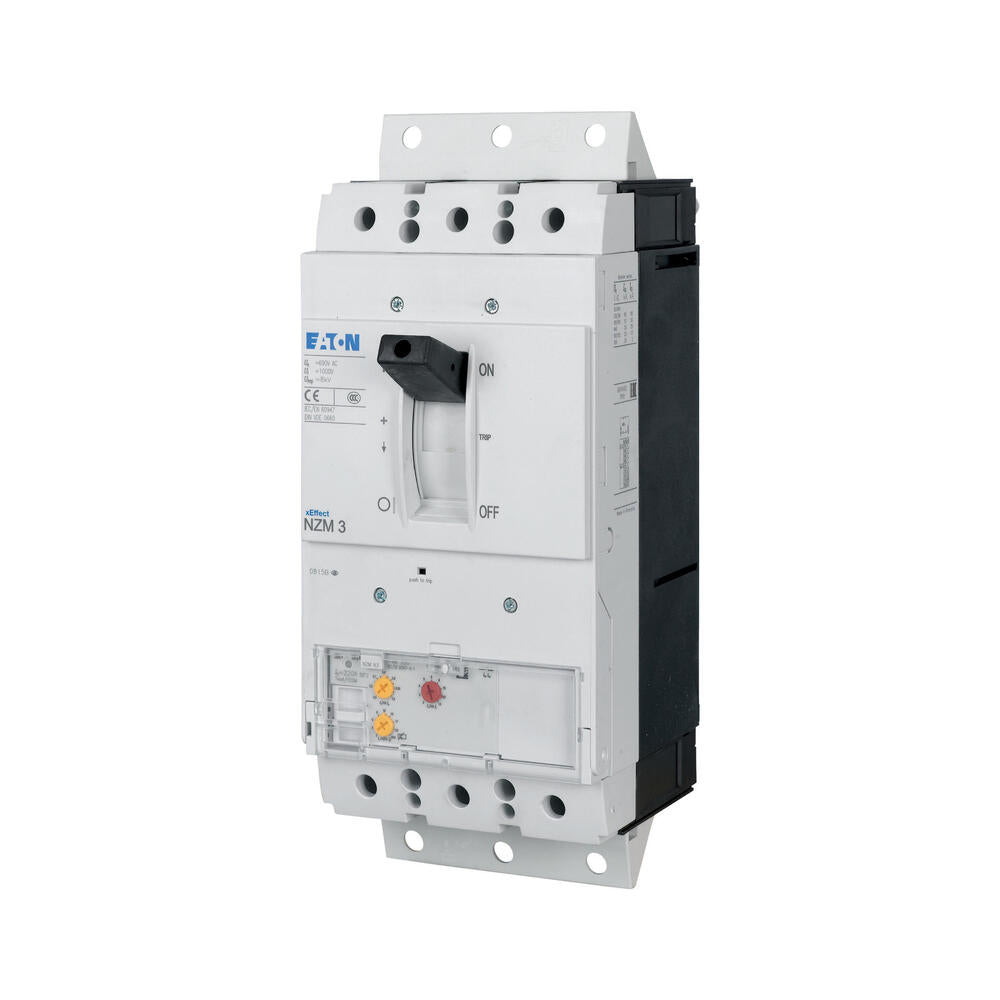

Eaton NZMN3-ME220-SVE 3P 220A Circuit Breaker Plug-In Module - 168483
The Eaton Industries MCCB motor protection circuit breaker has dimensions of 140x335x215.2mm and an overload protection range of 110 - 220A. The device is a plug-in style, with a nominal continuous current Iu of 220A. It features a screw connection for the main circuit and uses electronic shutdown technology. Part of the NZM..-ME series, this protection breaker has a flexible mounting system due to modular function groups. It features an electronic release for motor protection with phase failure sensitivity. Compliant with IEC/EN 60947-4-1 and 60947-2 standards, it utilizes r.m.s. value measurement and thermal memory. The device allows adjustable time delay setting to manage tr:2-20 at 6xIr current peaks as well as infinity without overload release.
- Regular price
- $2,130.12 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection circuit breaker has dimensions of 140x335x215.2mm and an overload protection range of 110 - 220A. The device is a plug-in style, with a nominal continuous current Iu of 220A. It features a screw connection for the main circuit and uses electronic shutdown technology. Part of the NZM..-ME series, this protection breaker has a flexible mounting system due to modular function groups. It features an electronic release for motor protection with phase failure sensitivity. Compliant with IEC/EN 60947-4-1 and 60947-2 standards, it utilizes r.m.s. value measurement and thermal memory. The device allows adjustable time delay setting to manage tr:2-20 at 6xIr current peaks as well as infinity without overload release.
