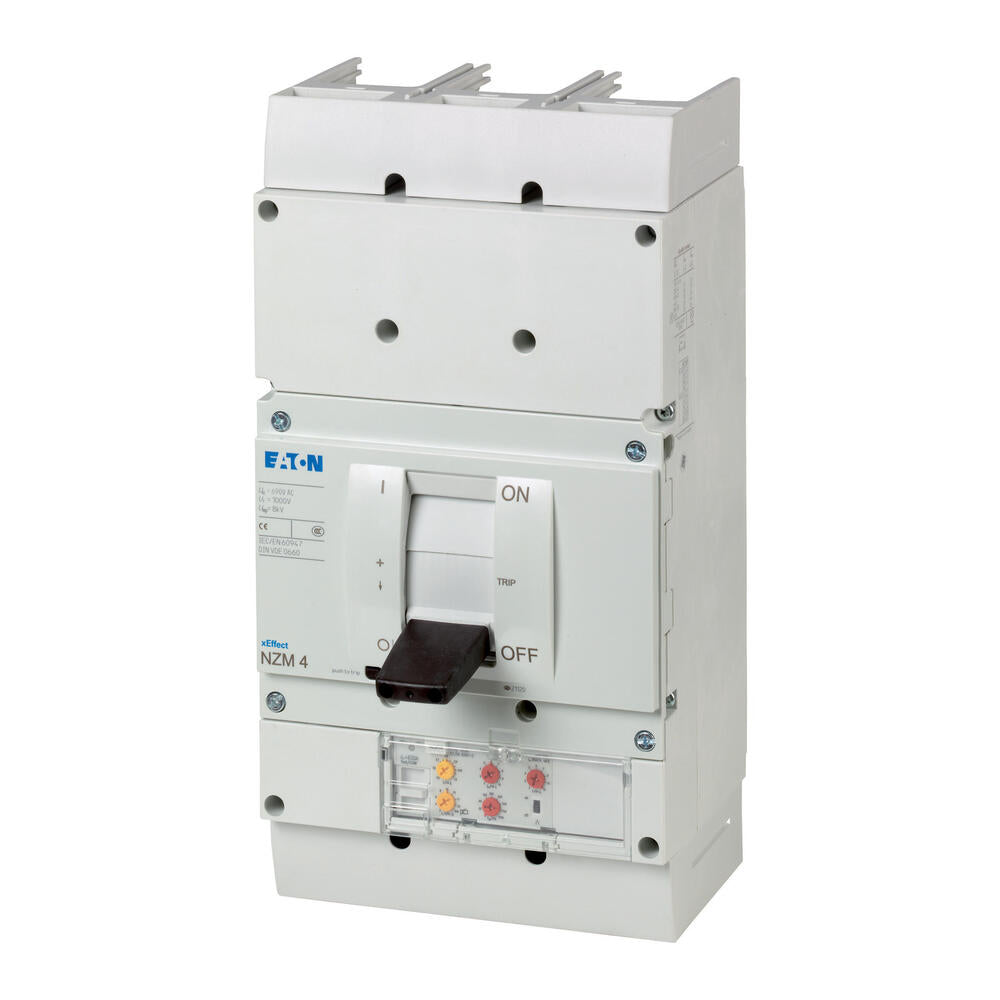

Eaton NZML4-VE800 Circuit Breaker 3P 800A 80kA at 690V IEC - 283214
Notice: This product will be discontinued in the future
The Eaton Industries MCCB power switch is rated for a nominal continuous current of 800A and a nominal voltage of 690V. It has a nominal breaking capacity (Icu) at 400V 50kA, an overload protection range of 400 - 800A, a transient delay adjustment range of 800 - 8000A, and an instantaneous short circuit range of 1600 - 9600A. The NZM4 circuit-breaker has 3 poles, a rated current equal to the rated uninterrupted current of 800A, and a switching capacity of 400/415 V 50 Hz with an Icu of 100 kA. It has a fixed installation style and a screw connection in compliance with IEC standards. It serves for system, cable, selectivity, and generator protection.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB power switch is rated for a nominal continuous current of 800A and a nominal voltage of 690V. It has a nominal breaking capacity (Icu) at 400V 50kA, an overload protection range of 400 - 800A, a transient delay adjustment range of 800 - 8000A, and an instantaneous short circuit range of 1600 - 9600A. The NZM4 circuit-breaker has 3 poles, a rated current equal to the rated uninterrupted current of 800A, and a switching capacity of 400/415 V 50 Hz with an Icu of 100 kA. It has a fixed installation style and a screw connection in compliance with IEC standards. It serves for system, cable, selectivity, and generator protection.
