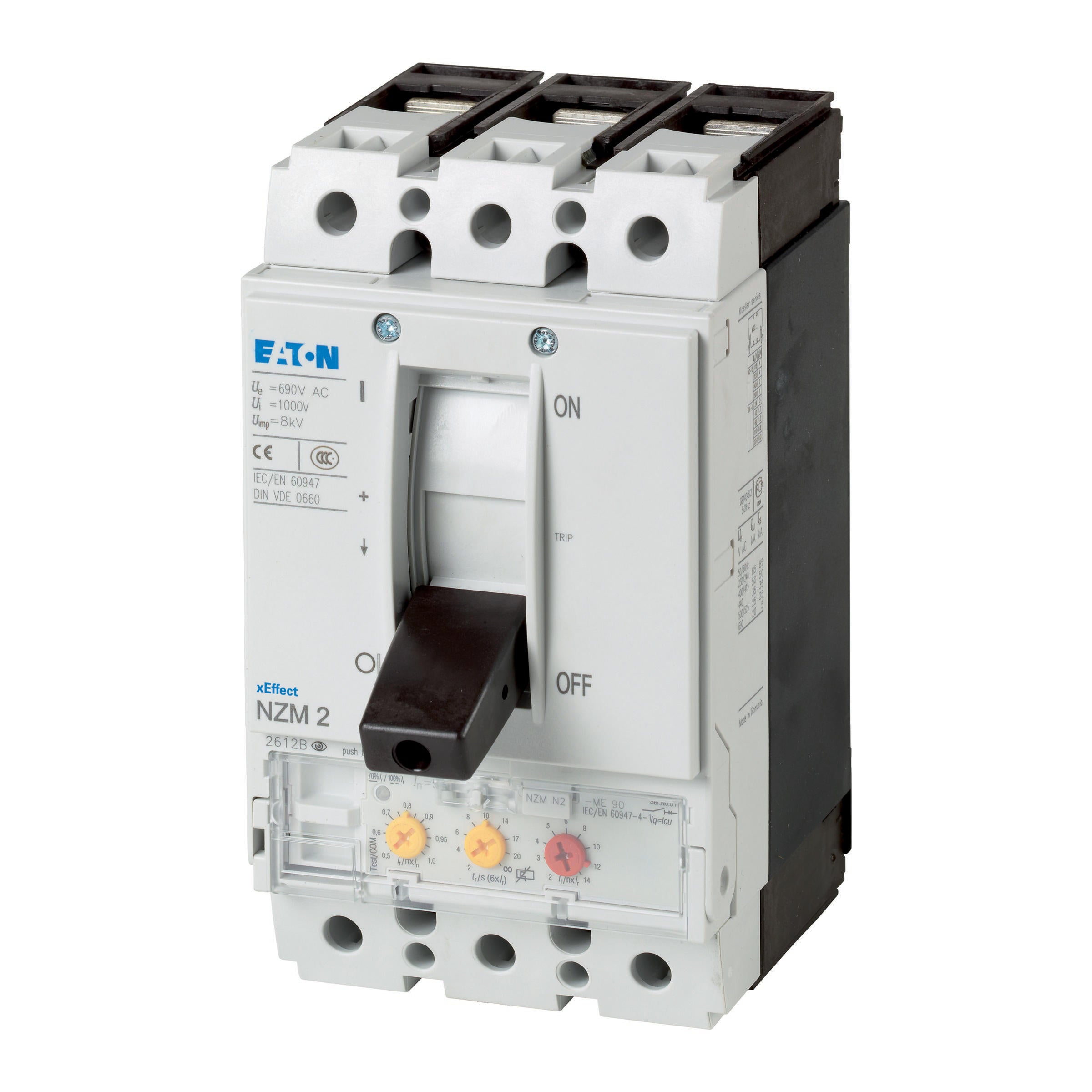

Eaton NZMH2-ME140 3P 140A Motor Protection Circuit Breaker - 265787
The Eaton Industries MCCB motor protection switch measures 105x149x184mm, with an adjustable overload protection range of 70 - 140A, a nominal continuous current Iu 140A, and a screw connection for the main current circuit. Its mechanism consists of electronic disconnection technology. The NZM..-ME series is suitable for the IEC market, covering all applications with just four compact sizes. The mounting is always flexible due to the modular function groups, with an electronic release for motor protection with phase failure sensitivity. It complies with the standards IEC/EN 60947-4-1 and IEC/ EN 60947-2, features RMS value measurement and thermal memory, and has an adjustable time delay setting designed to handle current peaks of tr:2-20 at 6xIr, as well as infinity without overload release.
- Regular price
- $1,331.08 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection switch measures 105x149x184mm, with an adjustable overload protection range of 70 - 140A, a nominal continuous current Iu 140A, and a screw connection for the main current circuit. Its mechanism consists of electronic disconnection technology. The NZM..-ME series is suitable for the IEC market, covering all applications with just four compact sizes. The mounting is always flexible due to the modular function groups, with an electronic release for motor protection with phase failure sensitivity. It complies with the standards IEC/EN 60947-4-1 and IEC/ EN 60947-2, features RMS value measurement and thermal memory, and has an adjustable time delay setting designed to handle current peaks of tr:2-20 at 6xIr, as well as infinity without overload release.
