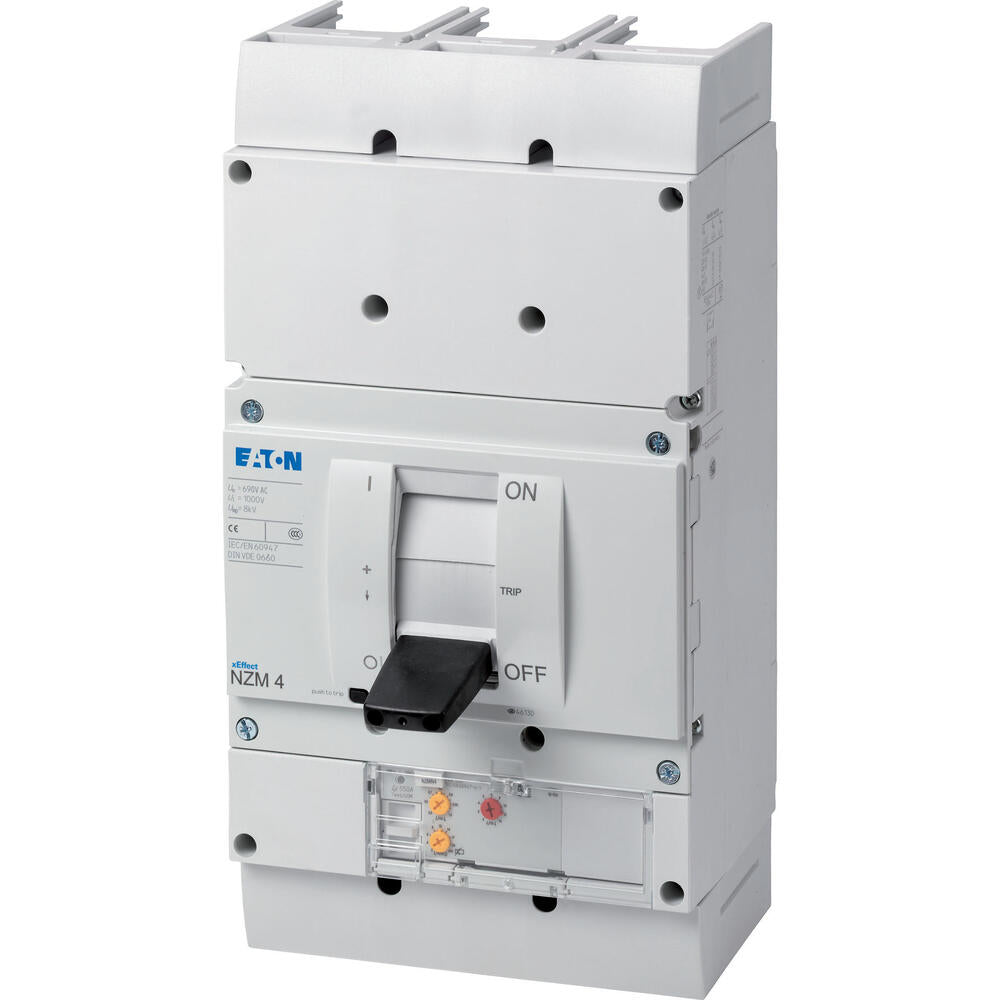

Eaton NZM4 Circuit Breaker 3P 875A 80kA 690V - 283219
Notice: This product will be discontinued in the future
The Eaton Industries MCCB motor protection switch, with dimensions of 210x401x207mm, features an overload range of 438 - 875A and a nominal continuous current of 875A. It is a built-in, fixed device with a screw connection to the main current circuit and uses electronic switch-off technology. It belongs to the NZM..-ME series that fits all applications in four compact sizes and allows flexible mounting due to its modular function groups. The device includes an electronic release for motor protection with phase failure sensitivity, following IEC/EN 60947-4-1, IEC/EN 60947-2 specifications. It uses the r.m.s. value measurement and thermal memory and offers an adjustable time delay setting to handle current peaks, ranging from 2-20 at 6xIr to infinity.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB motor protection switch, with dimensions of 210x401x207mm, features an overload range of 438 - 875A and a nominal continuous current of 875A. It is a built-in, fixed device with a screw connection to the main current circuit and uses electronic switch-off technology. It belongs to the NZM..-ME series that fits all applications in four compact sizes and allows flexible mounting due to its modular function groups. The device includes an electronic release for motor protection with phase failure sensitivity, following IEC/EN 60947-4-1, IEC/EN 60947-2 specifications. It uses the r.m.s. value measurement and thermal memory and offers an adjustable time delay setting to handle current peaks, ranging from 2-20 at 6xIr to infinity.
