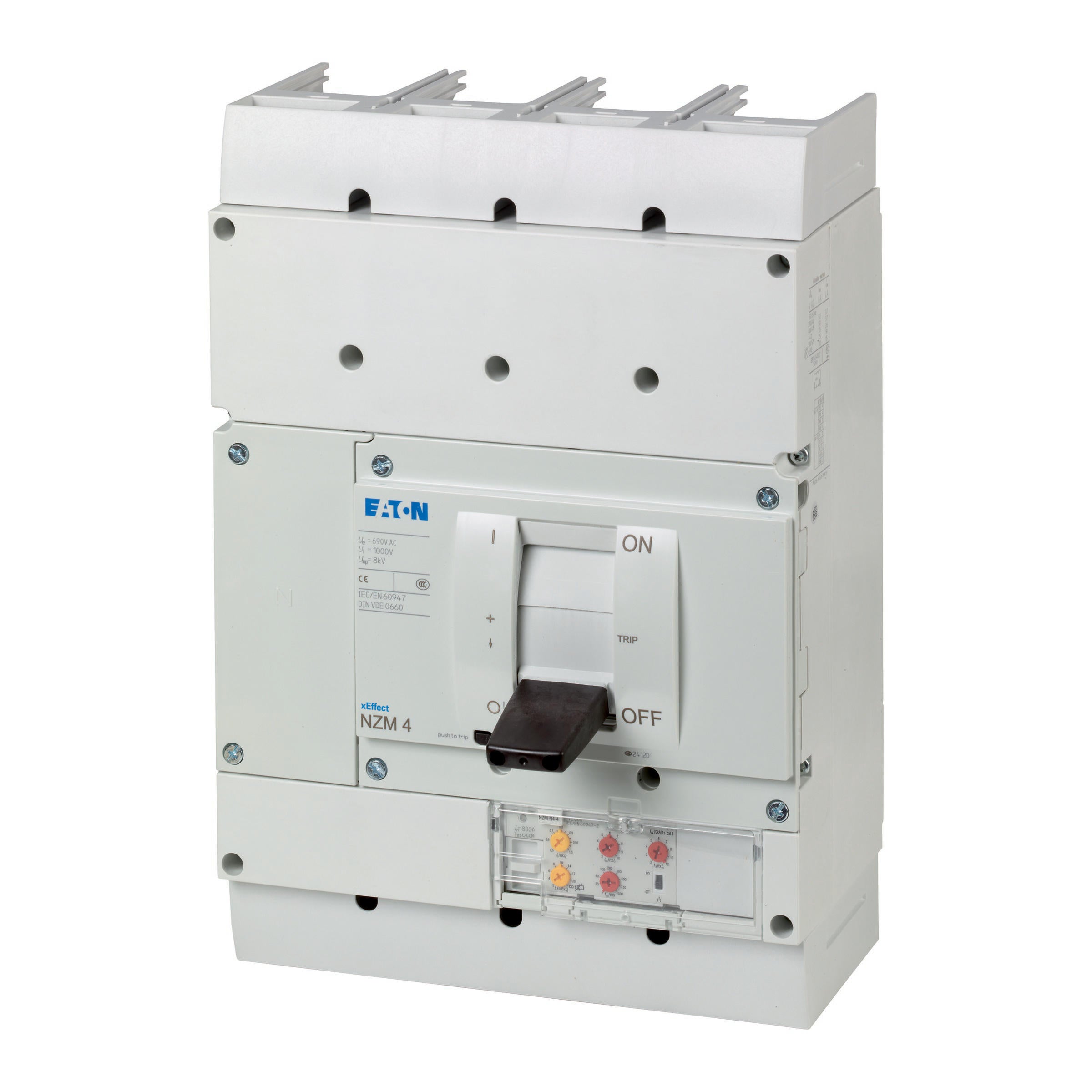

Eaton NZM4 Circuit Breaker 1000A 4P 100KA IEC - 265990
The Eaton Industries MCCB circuit-breaker NZM4, designed for fixed installation, has four poles and a switching capacity of 400/415 V 50 Hz, with an interrupting capacity of 85 kA. The rated current, also referred to as the rated uninterrupted current (In = Iu), is 1000 A. With a nominal voltage of 690V, it has overcurrent protection adjustment range of 500 - 1000A, short-time delayed range of 1000 - 10000A, and instantaneous short circuit range of 2000 - 12000A. The breaker offers functions such as system, cable, selectivity, and generator protection. It is compliant with IEC standards and uses a screw connection for installation.
- Regular price
- $6,577.50 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB circuit-breaker NZM4, designed for fixed installation, has four poles and a switching capacity of 400/415 V 50 Hz, with an interrupting capacity of 85 kA. The rated current, also referred to as the rated uninterrupted current (In = Iu), is 1000 A. With a nominal voltage of 690V, it has overcurrent protection adjustment range of 500 - 1000A, short-time delayed range of 1000 - 10000A, and instantaneous short circuit range of 2000 - 12000A. The breaker offers functions such as system, cable, selectivity, and generator protection. It is compliant with IEC standards and uses a screw connection for installation.
