Eaton NZM4 3P 1600A Circuit-Breaker - 265772
Notice: This product will be discontinued in the future

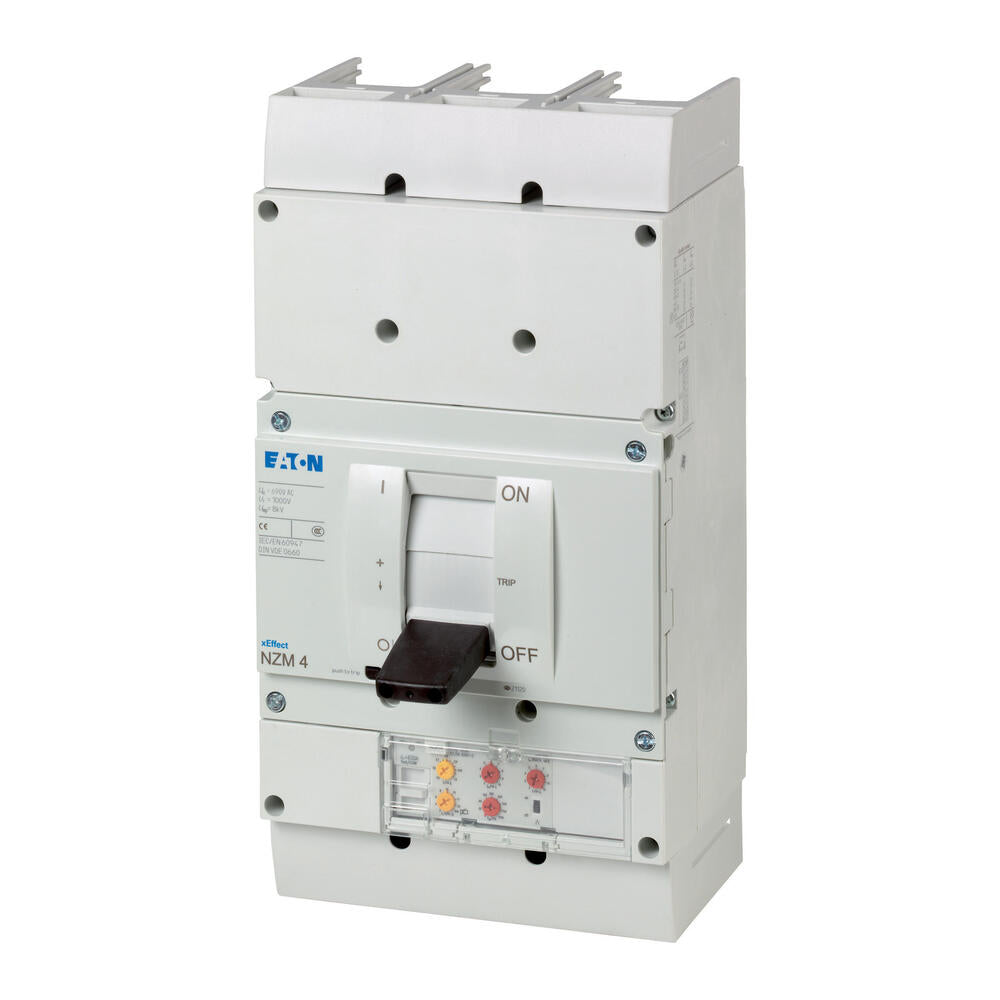

The Eaton Industries MCCB circuit-breaker NZM4, configured with 3 poles, provides a switching capacity of 50kA at 400/415V and 50Hz. The rated current, which is also the rated uninterrupted current, is 1600A. It is designed for fixed installation with a screw connection. This circuit breaker conforms to IEC standards and provides protection for systems, cables, as well as selectivity and generator protection. It also offers an overload protection adjustment range of 800-1600A, a short-delay setting range of 1600-16000A, and an instantaneous short-circuit setting range of 3200-19200A.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB circuit-breaker NZM4, configured with 3 poles, provides a switching capacity of 50kA at 400/415V and 50Hz. The rated current, which is also the rated uninterrupted current, is 1600A. It is designed for fixed installation with a screw connection. This circuit breaker conforms to IEC standards and provides protection for systems, cables, as well as selectivity and generator protection. It also offers an overload protection adjustment range of 800-1600A, a short-delay setting range of 1600-16000A, and an instantaneous short-circuit setting range of 3200-19200A.
