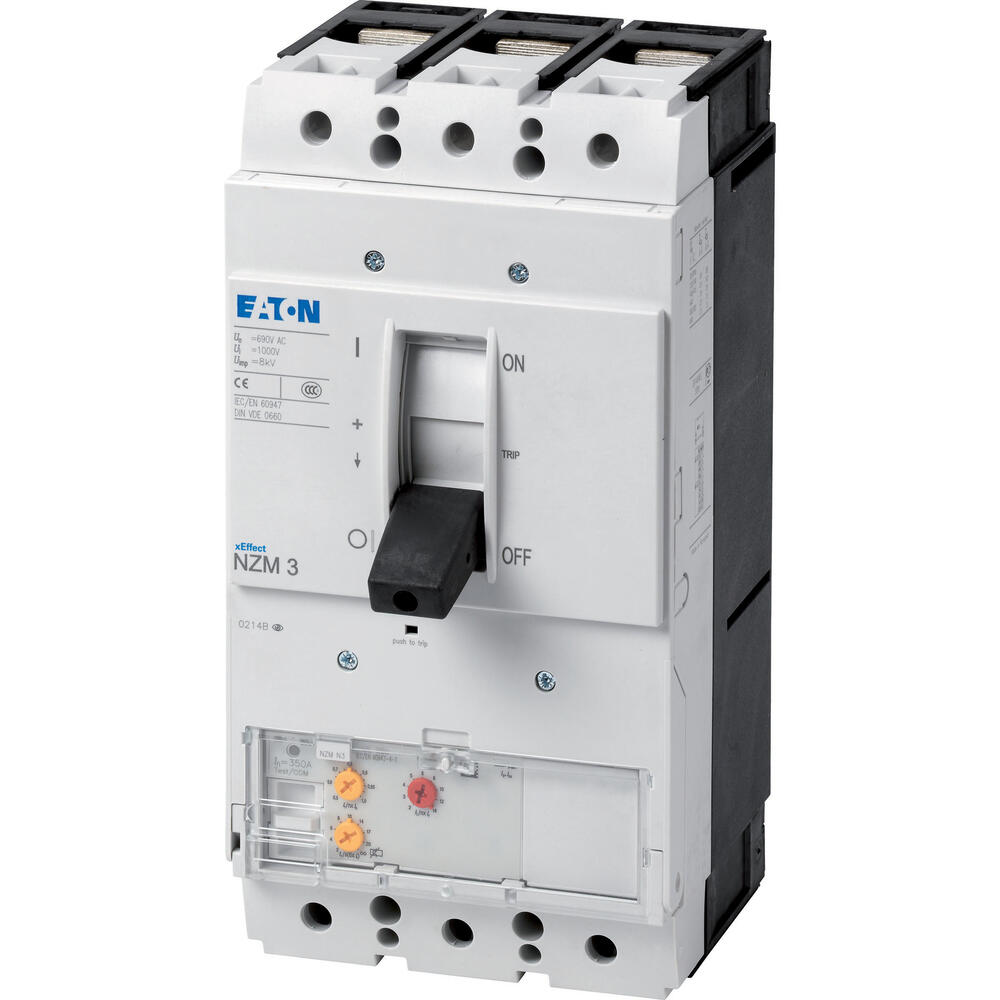

Eaton NZM3 Circuit Breaker 3P 220A 80kA At 690V IEC - 265797
The Eaton Industries MCCB motor protection switch measures 140x166x275mm with an adjustable overload range of 110 - 220A. It is built in a fixed installation pattern with a nominal continuous current Iu of 220A. The main power circuit is connected via a screw connection, and the cutting technology is electronic. The circuit-breakers of the NZM..-ME series come in just four compact sizes and suit the IEC market. Its modular function groups allow for flexible mounting. This series features an electronic release for motor protection with phase failure sensitivity. Notably, these have IEC/EN 60947-4-1, IEC/EN 60947-2 regulations, r.m.s. value measurement, and thermal memory, along with an adjustable time delay setting to surmount current peaks tr:2-20 at 6xIr as well as infinity without overload release.
- Regular price
- $2,500.49 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection switch measures 140x166x275mm with an adjustable overload range of 110 - 220A. It is built in a fixed installation pattern with a nominal continuous current Iu of 220A. The main power circuit is connected via a screw connection, and the cutting technology is electronic. The circuit-breakers of the NZM..-ME series come in just four compact sizes and suit the IEC market. Its modular function groups allow for flexible mounting. This series features an electronic release for motor protection with phase failure sensitivity. Notably, these have IEC/EN 60947-4-1, IEC/EN 60947-2 regulations, r.m.s. value measurement, and thermal memory, along with an adjustable time delay setting to surmount current peaks tr:2-20 at 6xIr as well as infinity without overload release.
