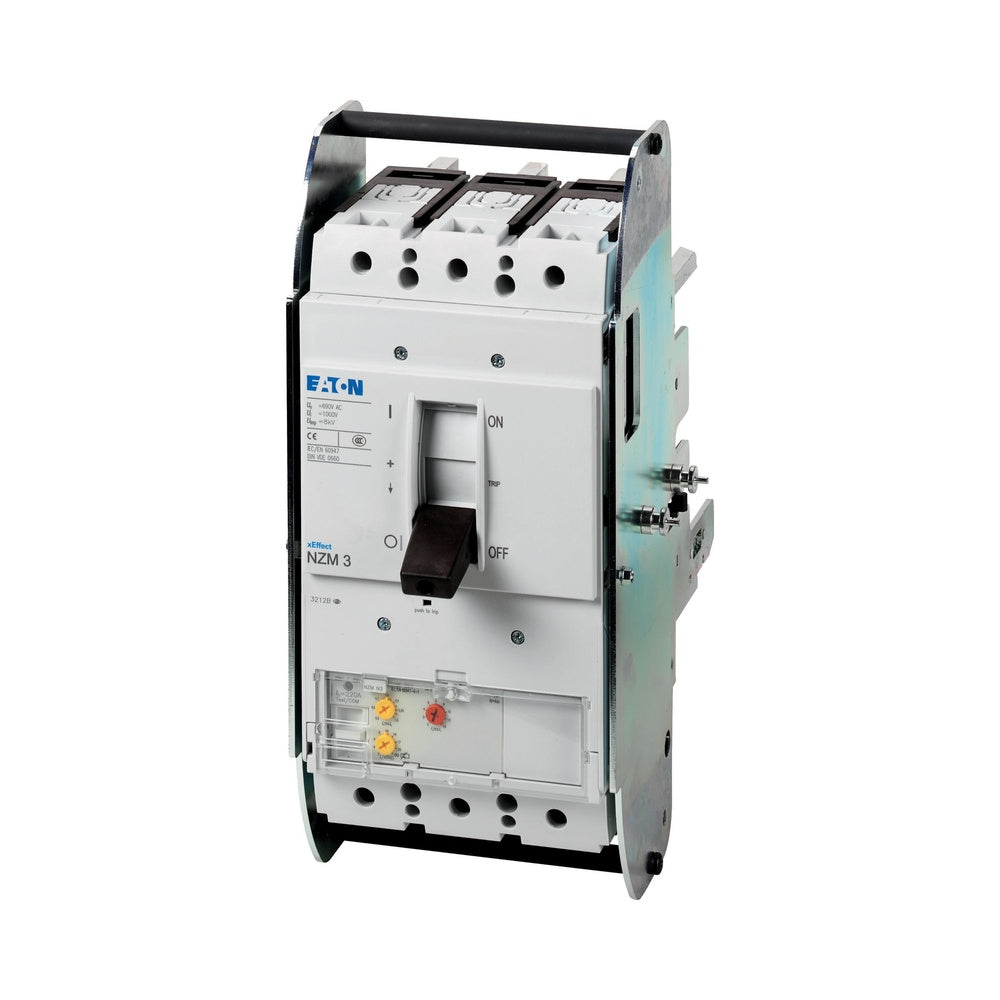

Eaton NZM3 3P 220A 150KA Circuit Breaker Withdrawable Unit - 110855
The Eaton Industries MCCB motor protection switch is a compact device, measuring 185x260x346mm. Its overload protection is adjustably set between 110 and 220A and features a nominal continuous current Iu of 220A. The device can be mounted with a screw connection, and its disconnection technique is electronic. To cover all applications, it is compatible with the NZM..-ME series and only requires four compact sizes for the IEC market. It includes an electronic release for motor protection with phase failure sensitivity, an r.m.s. value measurement and thermal memory, and an adjustable time delay setting to manage current peaks at 2-20 at 6xIr as well as infinity. Compliant with IEC/EN 60947-4-1 and IEC/EN 60947-2 standards.
- Regular price
- $3,162.78 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection switch is a compact device, measuring 185x260x346mm. Its overload protection is adjustably set between 110 and 220A and features a nominal continuous current Iu of 220A. The device can be mounted with a screw connection, and its disconnection technique is electronic. To cover all applications, it is compatible with the NZM..-ME series and only requires four compact sizes for the IEC market. It includes an electronic release for motor protection with phase failure sensitivity, an r.m.s. value measurement and thermal memory, and an adjustable time delay setting to manage current peaks at 2-20 at 6xIr as well as infinity. Compliant with IEC/EN 60947-4-1 and IEC/EN 60947-2 standards.
