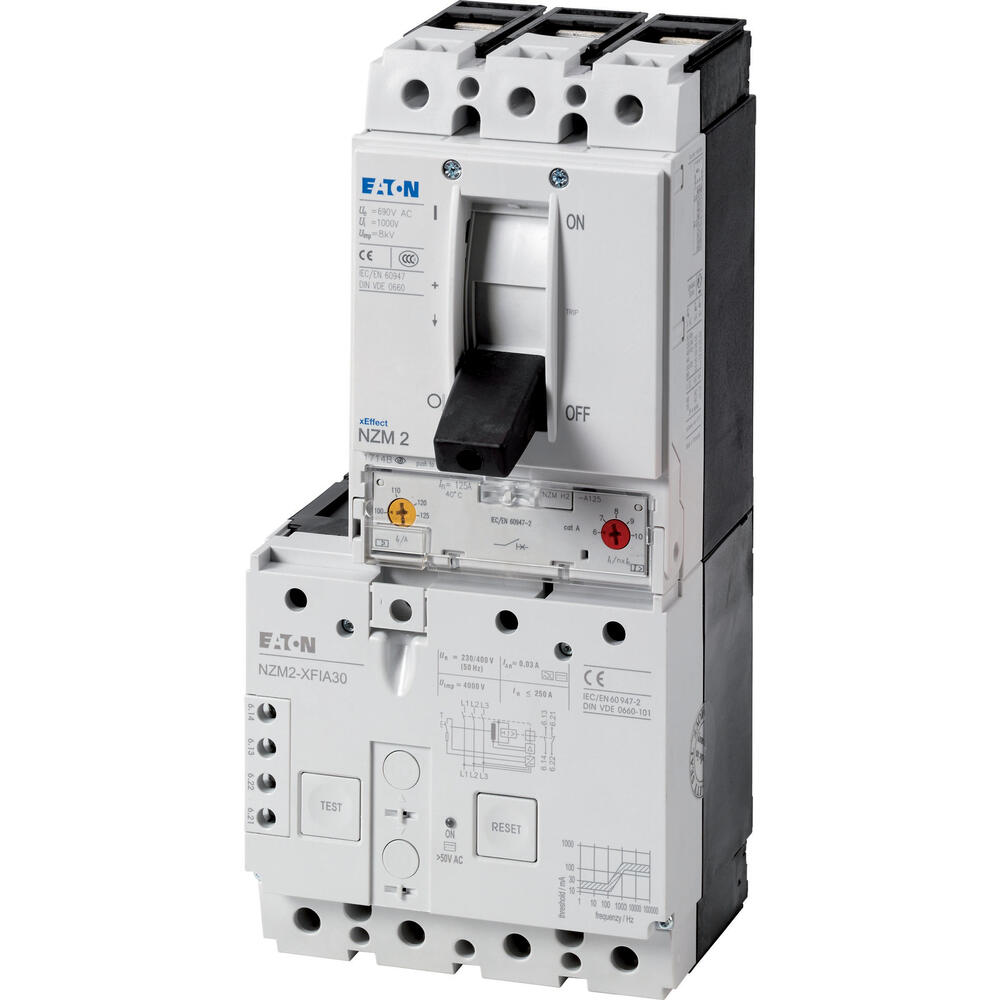

Eaton NZM2 3P 200A Residual Circuit Breaker With Box Terminals - 116305

Eaton NZM2 3P 200A Residual Circuit Breaker With Box Terminals - 116305
Eaton NZM2 3P 200A Residual Circuit Breaker With Box Terminals - 116305
Image may vary slightly
See specifications for accurate information.
Reference: E3K94
Brand: EATON INDUSTRIES
Mfr. Part: 116305

The Eaton Industries MCCB Circuit-breaker NZM2 is a three-pole unit with a switching capacity of 400/415V 50Hz and an interrupting capacity (Icu) of 150kA. It has a rated current, also known as the rated uninterrupted current (In = Iu) of 200A. The device is designed with a built-in, fixed installation type and equipped with a box terminal. It is standard/approved by IEC and serves a multi-faceted protective function, ensuring system and cable protection, fire protection, and personnel protection. The overload protection adjustable range is 160 - 200A, while the un-delayed short circuit adjustable range is 1200 - 2000A.

View all
Note: product cannot be returned
$2960.03
excl VAT
In stock +70 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 70 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 72 - 73 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries MCCB Circuit-breaker NZM2 is a three-pole unit with a switching capacity of 400/415V 50Hz and an interrupting capacity (Icu) of 150kA. It has a rated current, also known as the rated uninterrupted current (In = Iu) of 200A. The device is designed with a built-in, fixed installation type and equipped with a box terminal. It is standard/approved by IEC and serves a multi-faceted protective function, ensuring system and cable protection, fire protection, and personnel protection. The overload protection adjustable range is 160 - 200A, while the un-delayed short circuit adjustable range is 1200 - 2000A.

Downloads

Specifications

Rated permanent current Iu (A)
200
Rated voltage (V)
400 V to 400 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
150
Overload release current setting (A)
160 A to 200 A
Adjustment range short-term delayed short-circuit release (A)
0 A to 0 A
Adjustment range undelayed short-circuit release (A)
1200 A to 2000 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Frame clamp
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
With integrated under voltage release
No
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Rocker lever
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
