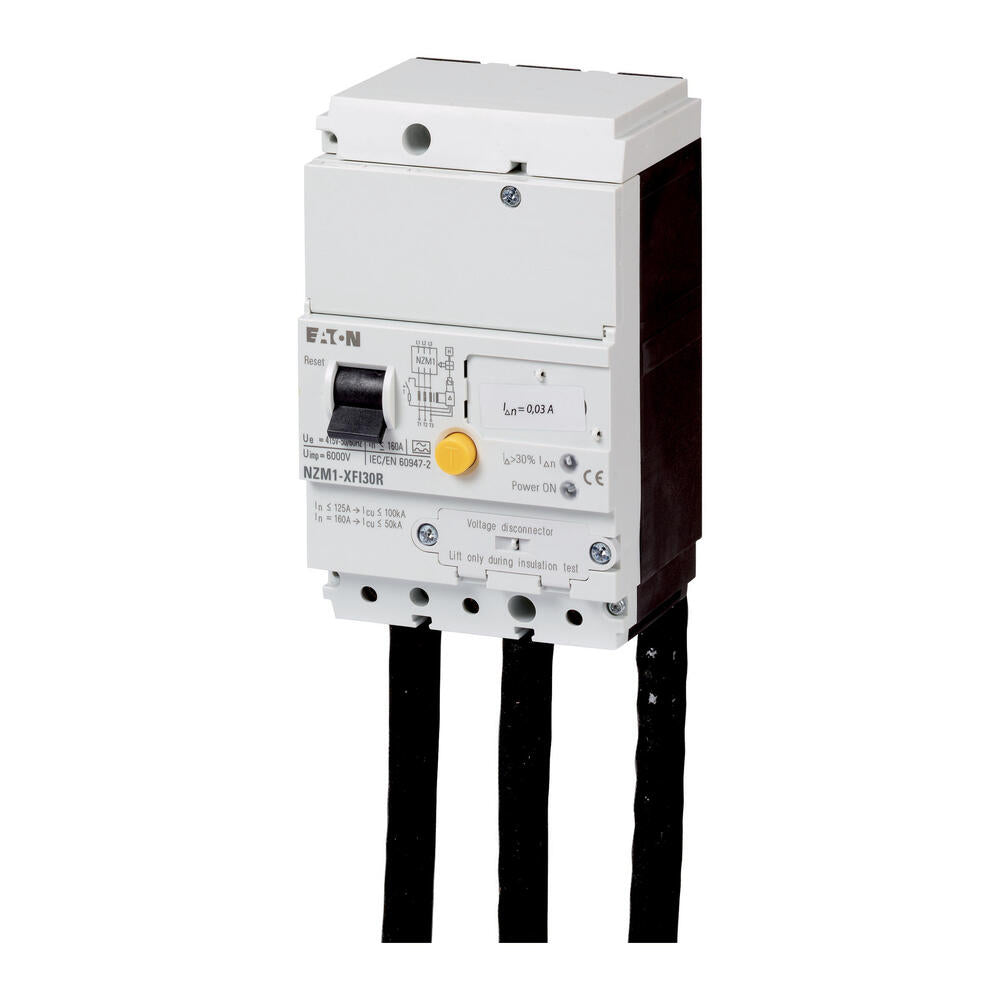

Eaton NZM1-XFI30R Earth-Fault Protection Right 30mA 3P - 104603
The Eaton Industries MCCB residual current relay is an accessory for NZM series circuit-breakers, used globally in three- and single-phase systems. It is suitable for 3 and 4 pole NZM1(-4) circuit-breakers and switch-disconnectors N1(-4), with a mains voltage independent of 200-415 V, 50/60 Hz. With a fixed setting delay time of 10 ms at I△n= 0.03 A, it indicates trips and warnings by LED and allows for the addition of max. 2 auxiliary contacts. This relay can't be used with insulated enclosures, main switch assembly kits, shunt or undervoltage releases, or early-make auxiliary contacts. The short-circuit breaking capacity depends on the fitted NZM1, NS1 or the back-up fuse with switch-disconnector N1.
- Regular price
- $542.06 USD
Description
The Eaton Industries MCCB residual current relay is an accessory for NZM series circuit-breakers, used globally in three- and single-phase systems. It is suitable for 3 and 4 pole NZM1(-4) circuit-breakers and switch-disconnectors N1(-4), with a mains voltage independent of 200-415 V, 50/60 Hz. With a fixed setting delay time of 10 ms at I△n= 0.03 A, it indicates trips and warnings by LED and allows for the addition of max. 2 auxiliary contacts. This relay can't be used with insulated enclosures, main switch assembly kits, shunt or undervoltage releases, or early-make auxiliary contacts. The short-circuit breaking capacity depends on the fitted NZM1, NS1 or the back-up fuse with switch-disconnector N1.
