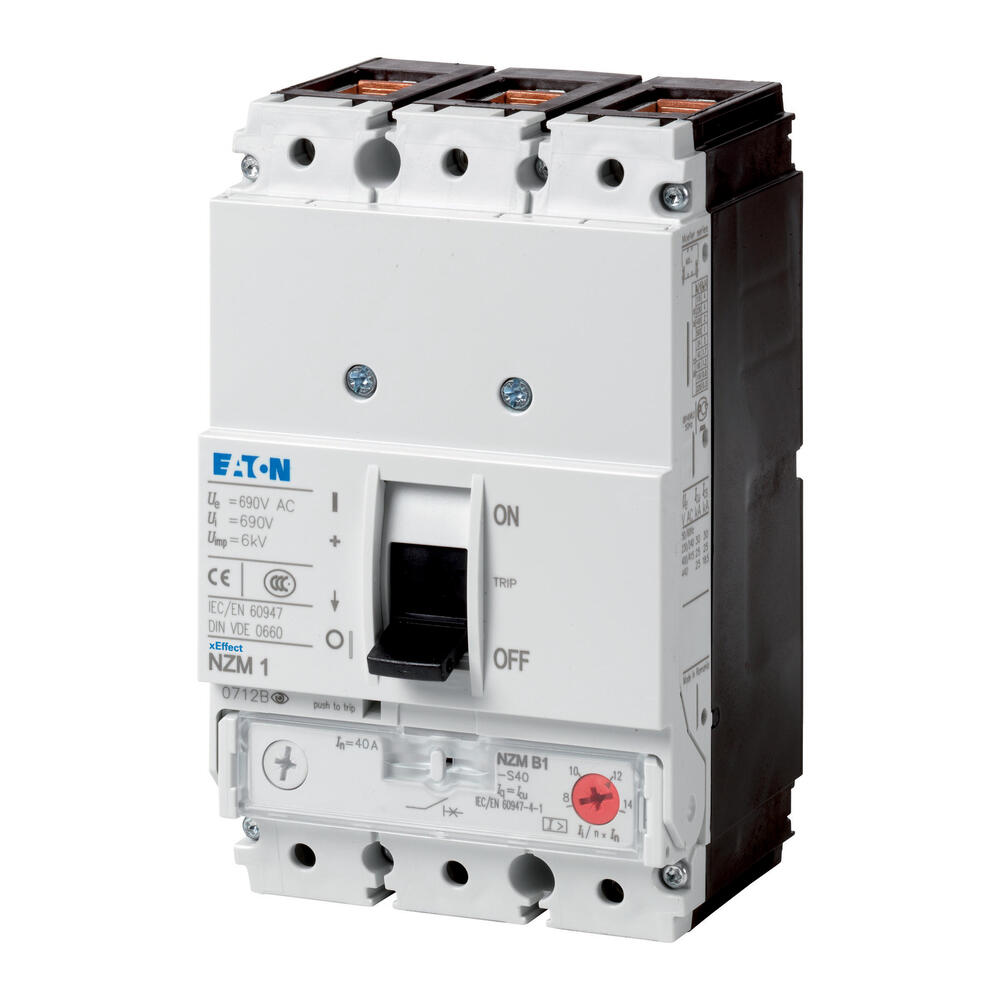

Eaton NZM1 Circuit Breaker 3P 8A 25KA UL IEC Certified - 103020
The Eaton Industries MCCB motor protection switch is a versatile and compact unit with dimensions of 90x88x165.5mm. It is designed for flush mount installation and features a magnetic trip mechanism. It operates with a continuous nominal current of 8A and has a protection degree of IP20. The device can function with an operating voltage of 440V. The NZM..-S..CNA series circuit breakers can cover a range of applications with only four compact sizes. They come with magnetic short-circuit release in connection with an overload relay and a short-circuit release lacking overload trip. They also conform to UL/CSA and IEC regulations, with IEC switching performance values inscribed on the rating plate.
- Regular price
- $444.71 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection switch is a versatile and compact unit with dimensions of 90x88x165.5mm. It is designed for flush mount installation and features a magnetic trip mechanism. It operates with a continuous nominal current of 8A and has a protection degree of IP20. The device can function with an operating voltage of 440V. The NZM..-S..CNA series circuit breakers can cover a range of applications with only four compact sizes. They come with magnetic short-circuit release in connection with an overload relay and a short-circuit release lacking overload trip. They also conform to UL/CSA and IEC regulations, with IEC switching performance values inscribed on the rating plate.
