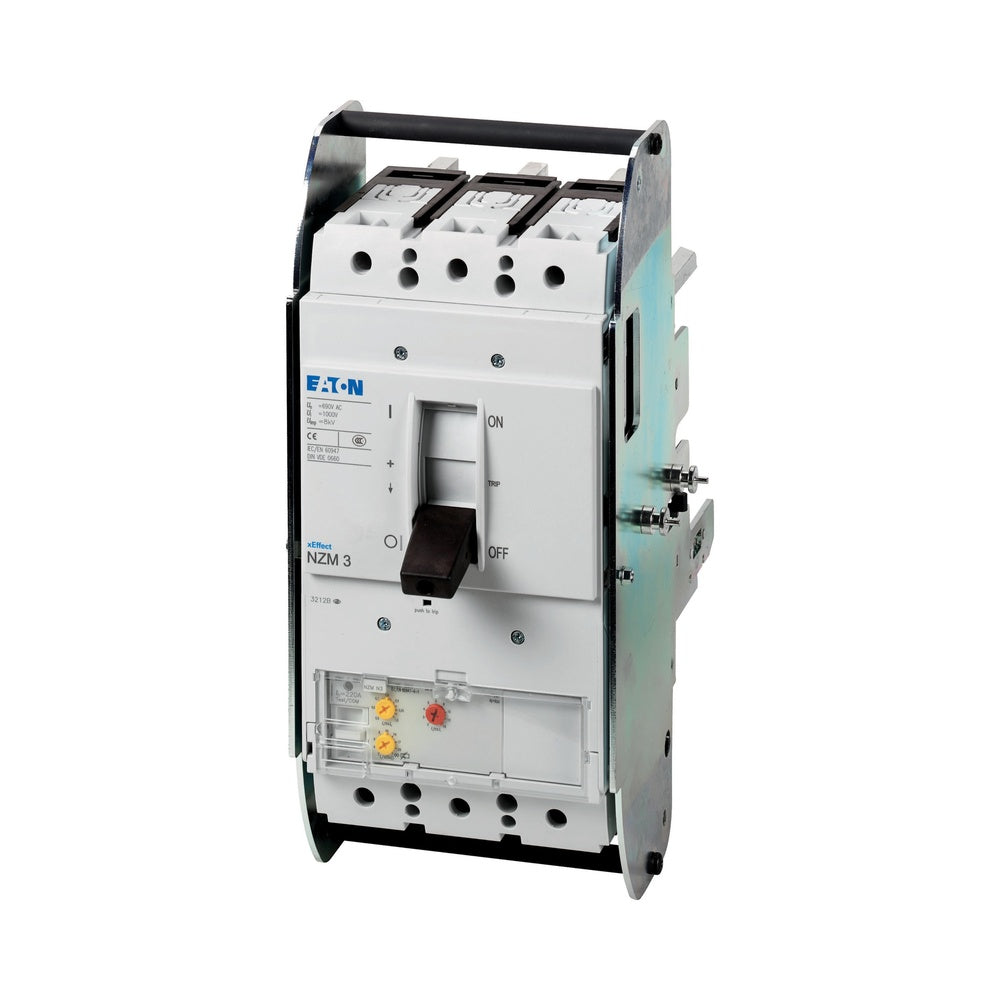

Eaton Motor Protection Circuit Breaker 225-450A 3P - 110848
The Eaton Industries MCCB motor protection breaker measures 185x260x346mm, with an adjustable overload protection range of 225 - 450A. The device's form is built-in and insertable, with the nominal continuous current Iu set at 450A. It features a screw connection for the main circuit and electronic cut-off technology. The NZM..-ME series circuit-breakers are suitable for IEC market and offers flexible mounting due to modular function groups. The set includes electronic release for motor protection with phase failure sensitivity, meeting IEC/EN 60947-4-1 and IEC/EN 60947-2 standards, equipped with r.m.s. value measurement, thermal memory, and adjustable time delay setting to overcome current peaks tr:2-20 at 6xIr as well as infinity (without overload release).
- Regular price
- $3,784.24 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection breaker measures 185x260x346mm, with an adjustable overload protection range of 225 - 450A. The device's form is built-in and insertable, with the nominal continuous current Iu set at 450A. It features a screw connection for the main circuit and electronic cut-off technology. The NZM..-ME series circuit-breakers are suitable for IEC market and offers flexible mounting due to modular function groups. The set includes electronic release for motor protection with phase failure sensitivity, meeting IEC/EN 60947-4-1 and IEC/EN 60947-2 standards, equipped with r.m.s. value measurement, thermal memory, and adjustable time delay setting to overcome current peaks tr:2-20 at 6xIr as well as infinity (without overload release).
