Eaton K20X15 Rail System Clamp For CU20X5(X10 - X15) - 002284 [10 Pieces]

Eaton K20X15 Rail System Clamp For CU20X5(X10 - X15) - 002284 [10 Pieces]
Eaton K20X15 Rail System Clamp For CU20X5(X10 - X15) - 002284 [10 Pieces]

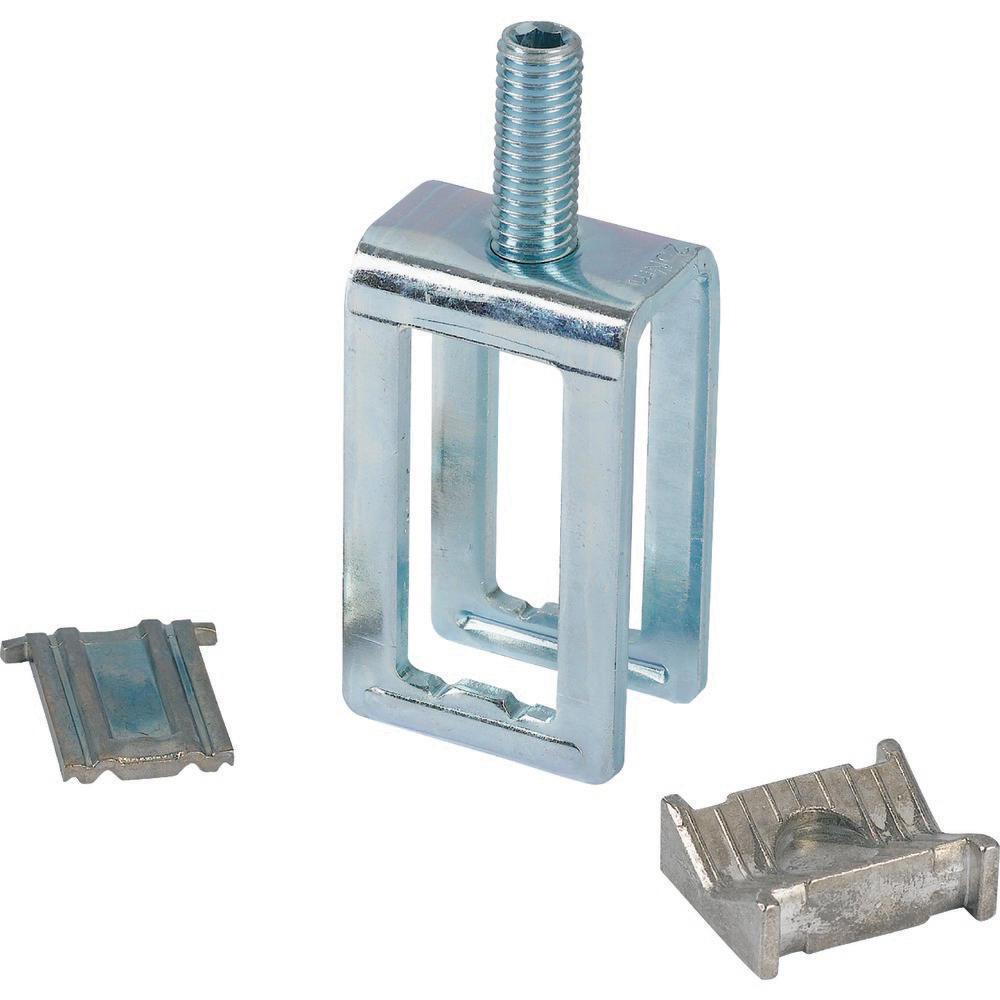

Image may vary slightly
See specifications for accurate information.
Reference: E3DRX-X10
Brand: EATON INDUSTRIES
Mfr. Part: 002284

The Eaton Industries XEnergy connector clamp for the power busbar is designed for busbar thickness ranging from 5 to 15mm, and a busbar width of 20mm. The width of the clamp itself is 43mm. This connector clamp is suitable for flat, round, and sector cable connections. It can accommodate a maximum conductor cross-section of 300mm² and can handle a maximum nominal operating current of 630A.

Contains 10 pieces

View all
Note: product cannot be returned
$241.48
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XEnergy connector clamp for the power busbar is designed for busbar thickness ranging from 5 to 15mm, and a busbar width of 20mm. The width of the clamp itself is 43mm. This connector clamp is suitable for flat, round, and sector cable connections. It can accommodate a maximum conductor cross-section of 300mm² and can handle a maximum nominal operating current of 630A.

Contains 10 pieces

Downloads

Specifications

Busbar thickness (mm)
5 mm to 15 mm
Busbar width (mm)
20 mm to 20 mm
Suitable for
Flat rail
Width clamp (mm)
43
Max. conductor cross section (mm²)
300
Max. rated operation current Ie (A)
630
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
Yes
Suitable for strip conductor connection
Yes
