Reference: E374C
Brand: EATON INDUSTRIES
Mfr. Part: 182443

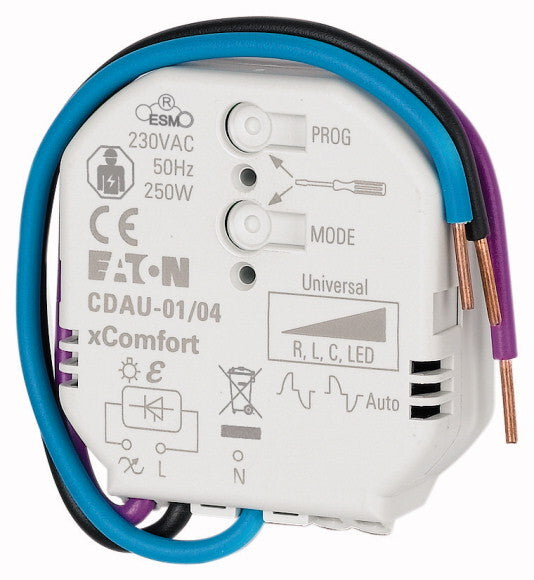

Small Design Smart Dimming Actuator 0-250W/230VAC is suitable for dimming a variety of loads, including both dimmable and non-dimmable LEDs. It has the ability to dim even the smallest LED load, starting from 0W!

It's easy to select or define a dim profile for optimal performance. This device is energy efficient and protected against short circuit, overload, and over temperature with auto recovery.

Its small design allows for installation behind switches, retractable switches, motion sensors, wall sockets, or in junction boxes.

View all
$146.08
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 25 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Small Design Smart Dimming Actuator 0-250W/230VAC is suitable for dimming a variety of loads, including both dimmable and non-dimmable LEDs. It has the ability to dim even the smallest LED load, starting from 0W!

It's easy to select or define a dim profile for optimal performance. This device is energy efficient and protected against short circuit, overload, and over temperature with auto recovery.

Its small design allows for installation behind switches, retractable switches, motion sensors, wall sockets, or in junction boxes.

Downloads

Specifications

Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
xComfort
Radio frequent bidirectional
Yes
Model
Dimming actuator
Mounting method
Flush mounted (plaster)
Width in number of modular spacings
3
With bus connection
Yes
Bus module detachable
No
Substation input
No
Local operation/hand operation
No
With LED indication
Yes
Number of outputs
1
Output power (W)
0 W to 250 W
Power boost suitable
No
Type of load
Universal and LED Retrofit
Max. control current (mA)
0
Max. switching power LED (W)
100
Voltage (V)
230 V to 230 V
Parallel-service possible
No
Frequency (Hz)
50 Hz to 50 Hz
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Min. depth of built-in installation box (mm)
18
