EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440

EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440
EATON INDUSTRIES PK Earth Leakage Circuit Breaker - 236440

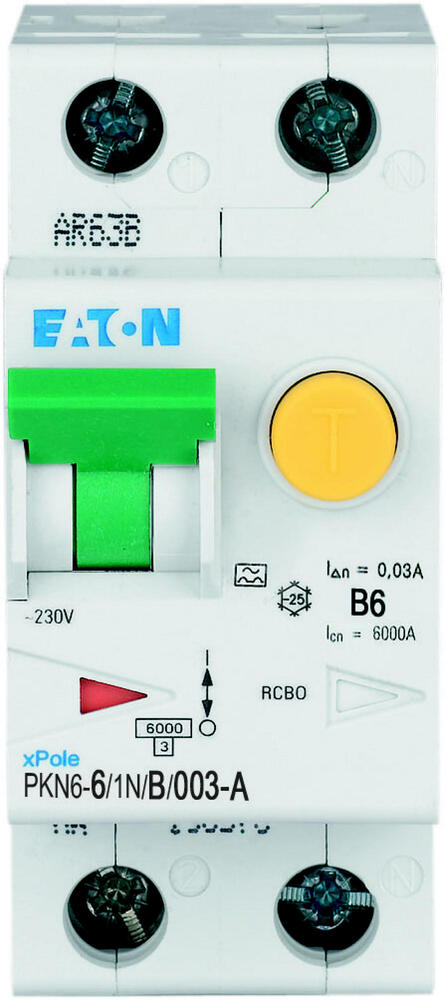

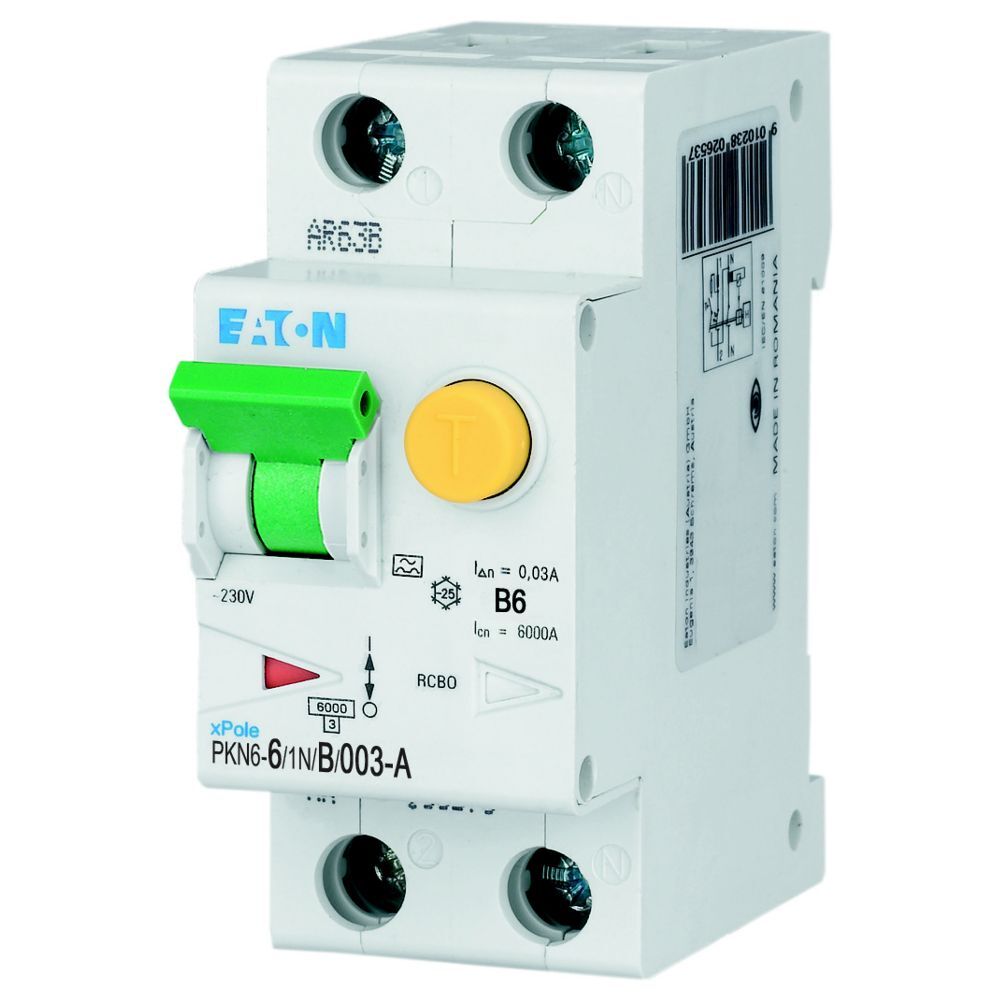

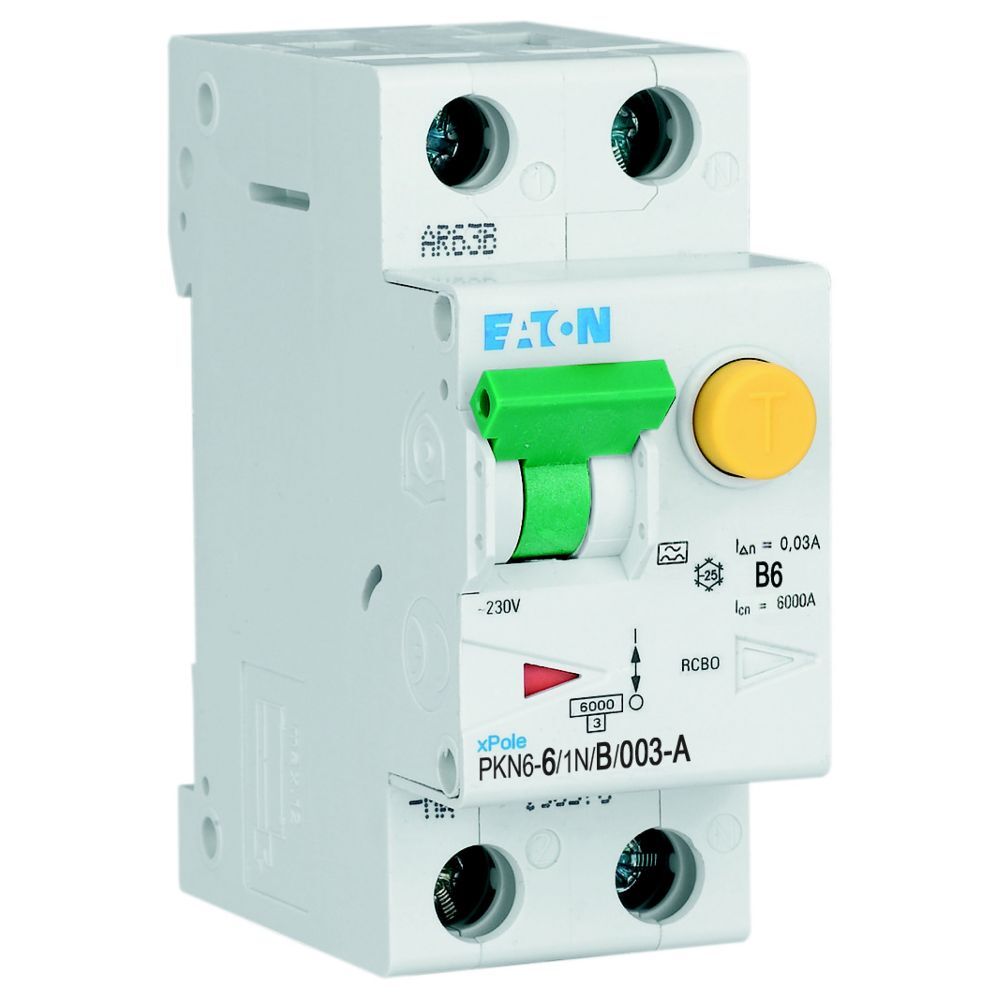

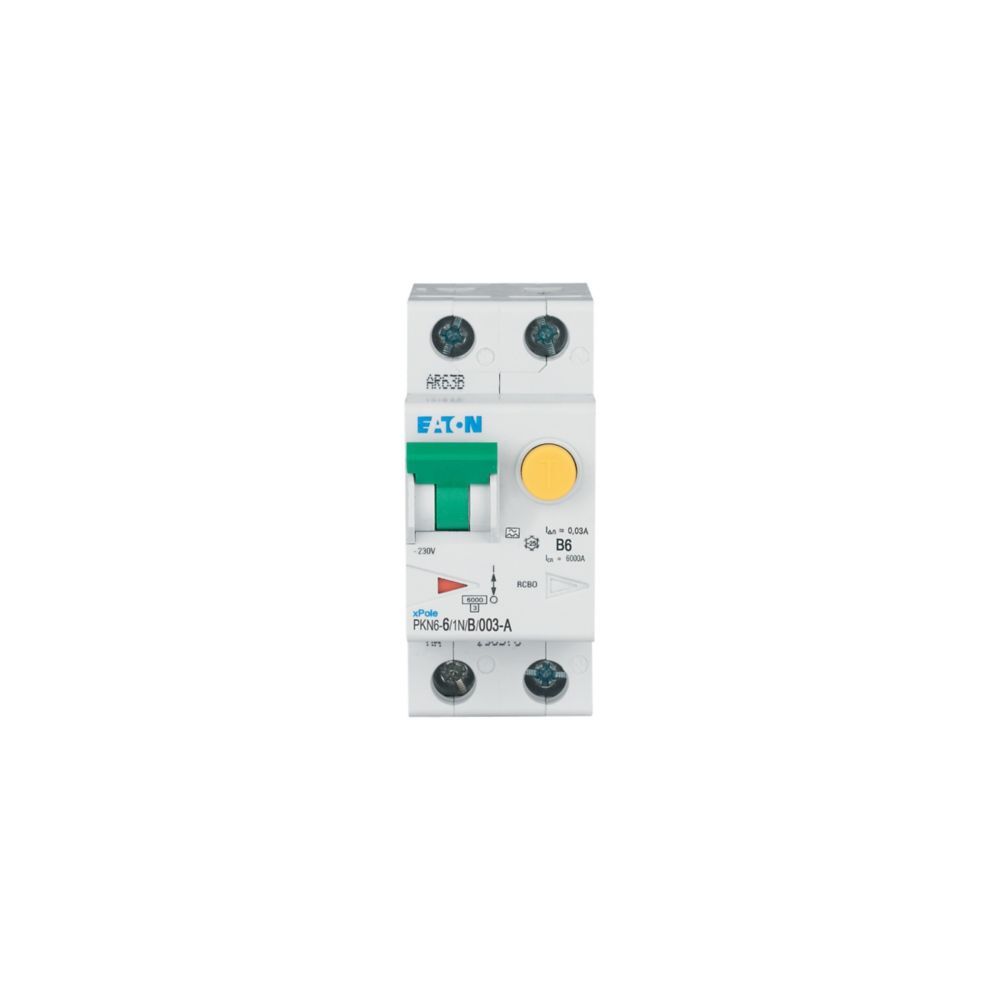

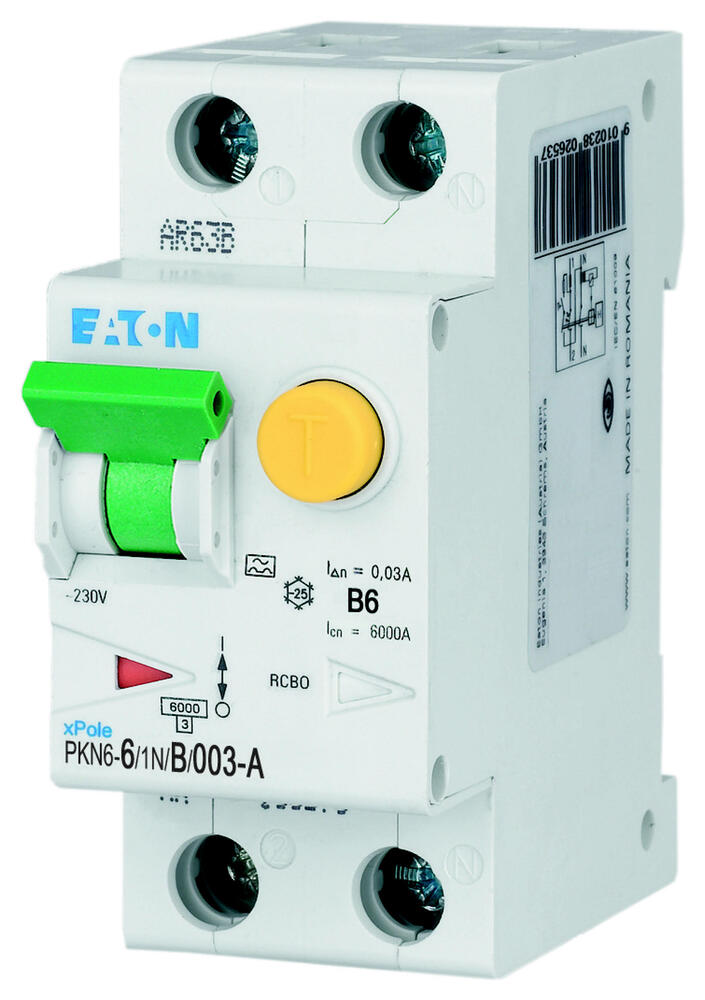

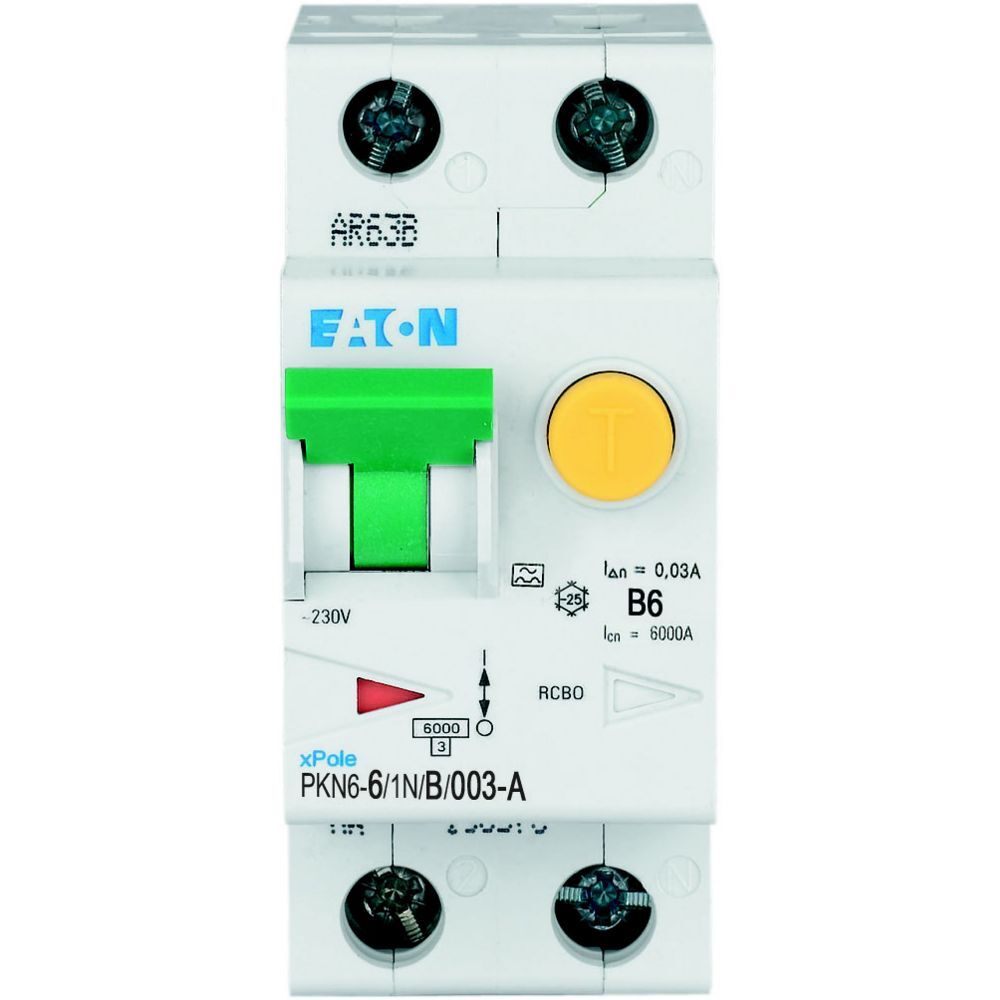

Image may vary slightly
See specifications for accurate information.
Reference: E2ZE4
Brand: EATON INDUSTRIES
Mfr. Part: 236440

This earth leakage circuit breaker from Eaton Moeller's PKN6 series has a double comfort clamp lift/frame top and bottom. Free choice comb rail position above or below. The color of switch lever indicates the rated current. Contact position indicator red - green. This PKN6 ground fault circuit breaker is limited current surge resistant 250A and plus current sensitive. This Type A of the Eaton Moeller PKN6 ground fault circuit breakers protects DC fault currents at special non-flattened shapes.

View all
$125.44
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This earth leakage circuit breaker from Eaton Moeller's PKN6 series has a double comfort clamp lift/frame top and bottom. Free choice comb rail position above or below. The color of switch lever indicates the rated current. Contact position indicator red - green. This PKN6 ground fault circuit breaker is limited current surge resistant 250A and plus current sensitive. This Type A of the Eaton Moeller PKN6 ground fault circuit breakers protects DC fault currents at special non-flattened shapes.

Downloads

Specifications

Number of poles (total)
2
Number of protected poles
1
Rated voltage (V)
230
Rated insulation voltage Ui (V)
440
Rated impulse withstand voltage Uimp (kV)
4
Rated current (A)
6
Rated fault current (A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009 (kA)
6
Rated short-circuit breaking capacity according to IEC 60947-2 (kA)
0
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA)
6
Disconnection characteristic
Undelayed
Surge current capacity (kA)
0.25
Voltage-type
AC
Frequency
50 Hz
Release characteristic
B
Concurrently switching neutral conductor
Yes
With interlocking device
No
Over voltage category
3
Pollution degree
2
Ambient temperature during operating (°C)
-25 °C to 40 °C
Width in number of modular spacings
2
Built-in depth (mm)
69.5
Flush-mounted installation
No
Anti-nuisance tripping version
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Connectable conductor cross section solid-core (mm²)
1 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²)
1 mm² to 25 mm²
