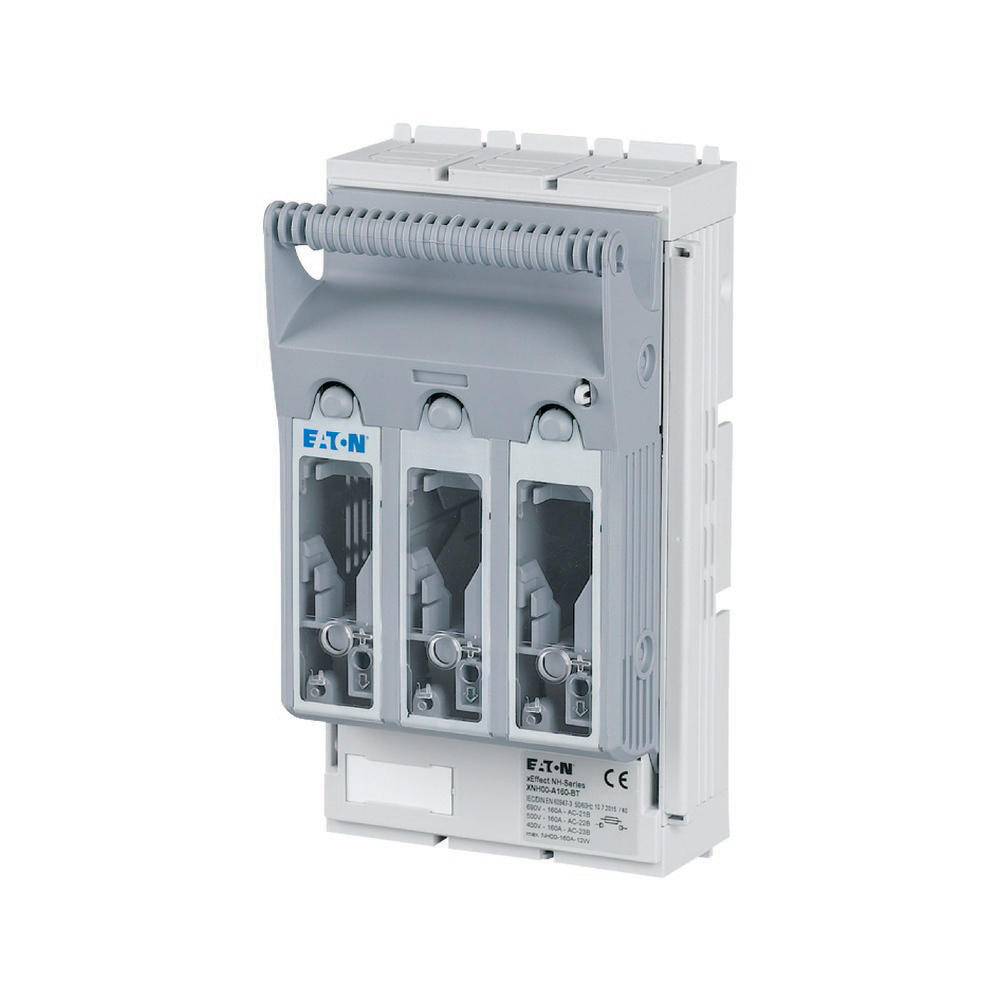

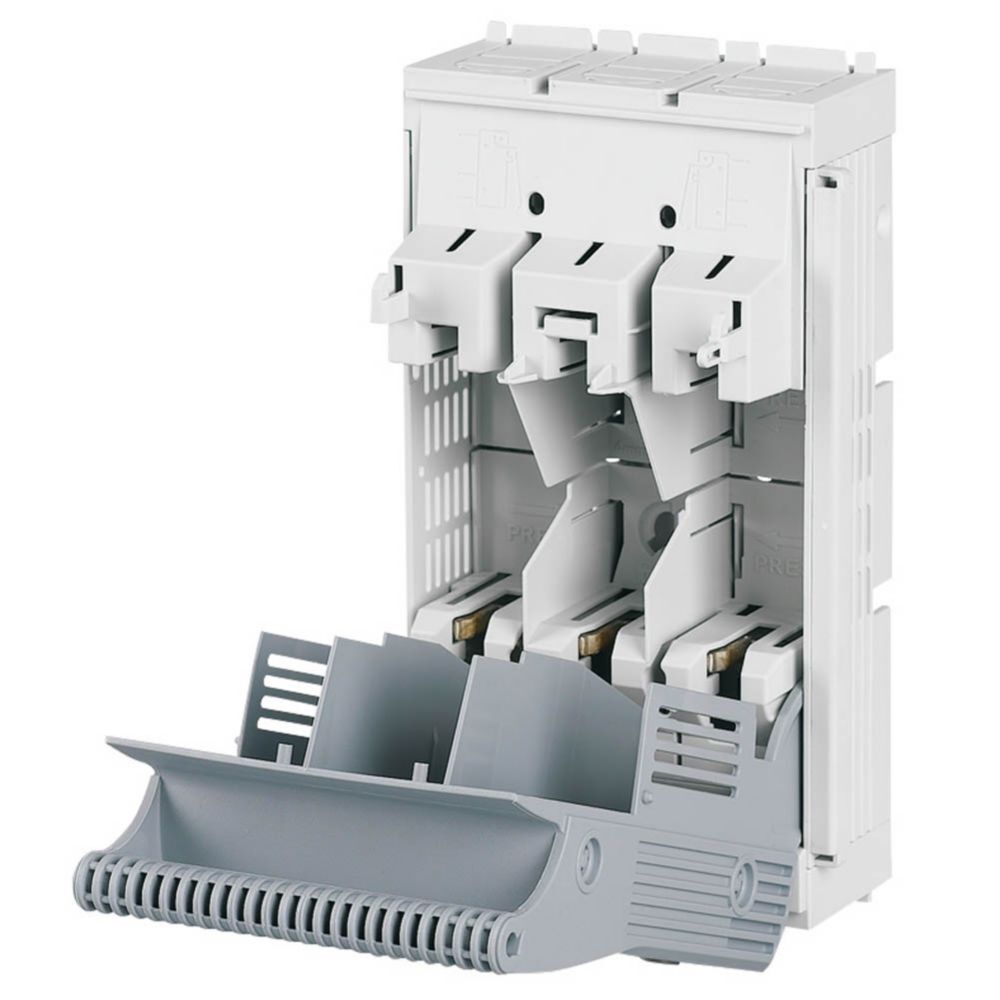

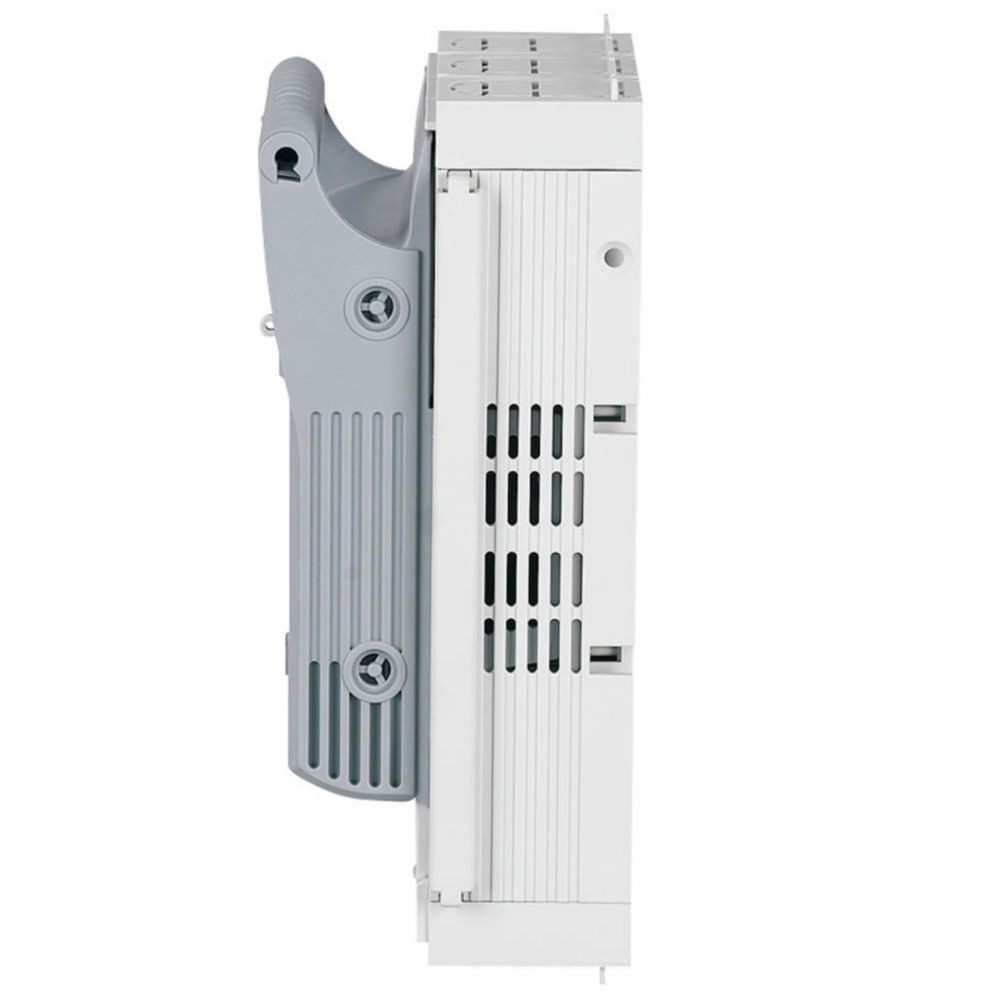

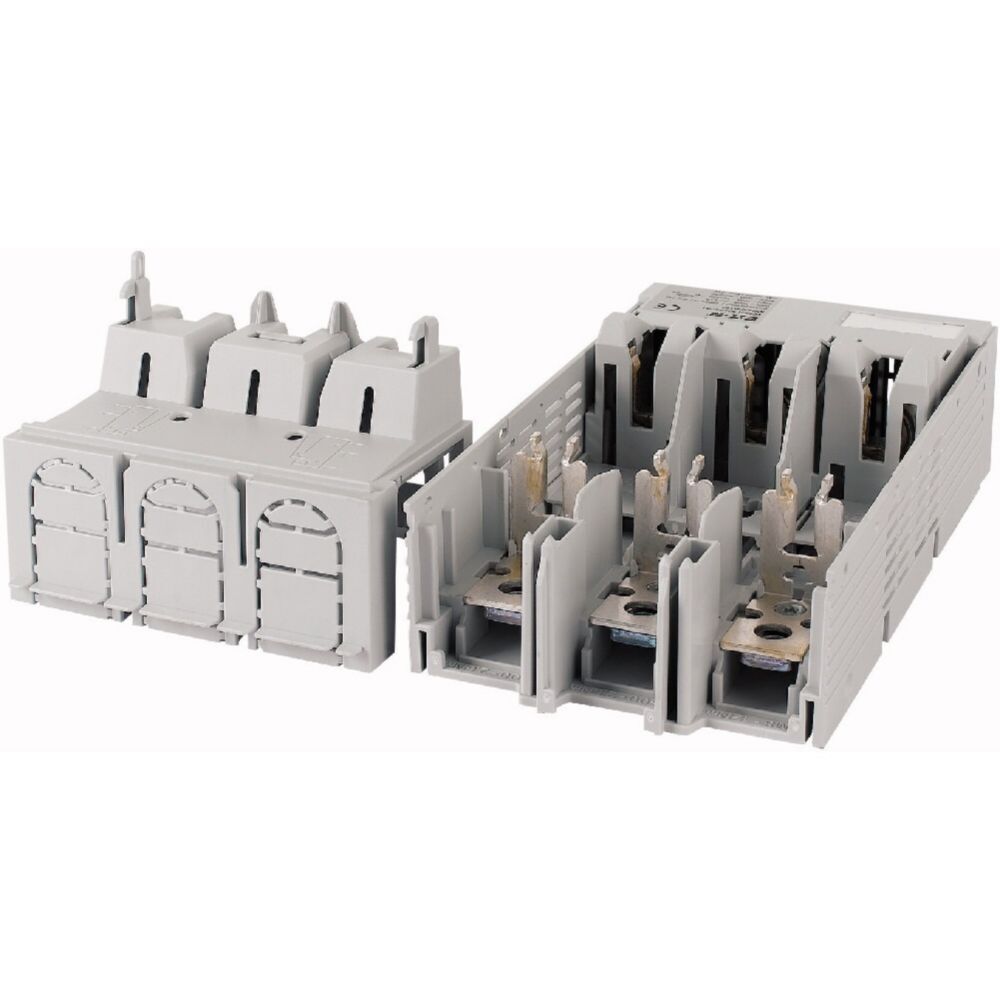

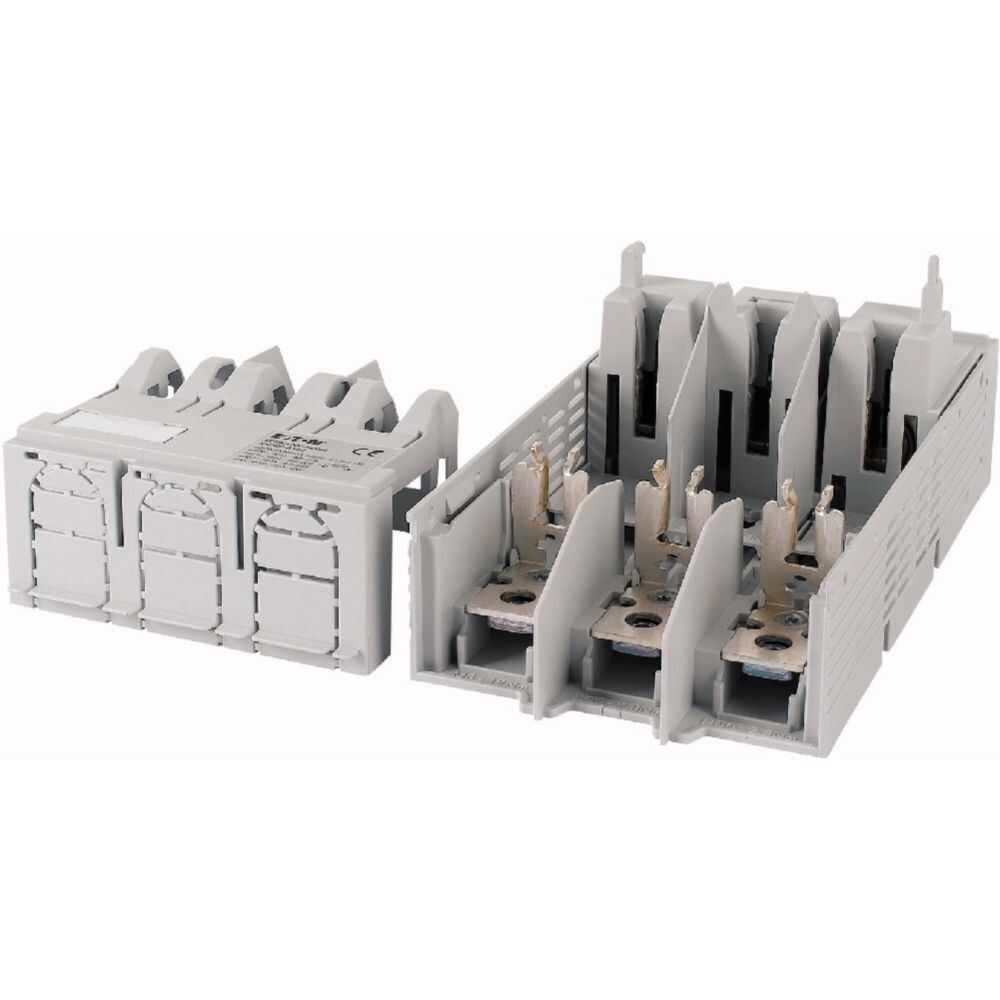

EATON INDUSTRIES NH Safety Load Disconnector - 183025

EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
EATON INDUSTRIES NH Safety Load Disconnector - 183025
Image may vary slightly
See specifications for accurate information.
Reference: E3754
Brand: EATON INDUSTRIES
Mfr. Part: 183025

Eaton xEffect - XNH circuit protection. NH fuse-switch 3p flange connection M8 max. 95 mm�, mounting plate, NH000 & NH00.

View all
$73.31
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 24 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Eaton xEffect - XNH circuit protection. NH fuse-switch 3p flange connection M8 max. 95 mm�, mounting plate, NH000 & NH00.

Downloads

Specifications

Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC (V)
690
Rated permanent current Iu (A)
160
Rated operation power at AC-23, 400 V (kW)
0
Conditioned rated short-circuit current Iq (kA)
120
Rated short-time withstand current lcw (kA)
11
Suitable for fuses
NH00
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Screw connection
Cable entry
Other
Equipped with connectors
No
Suitable for floor mounting
Yes
Suitable for front mounting
No
Suitable for busbar mounting
No
Type of control element
Cover grip
Position control element
Front side
Motor drive optional
No
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
Other
