EATON INDUSTRIES Mains Surge Protector - 167622

EATON INDUSTRIES Mains Surge Protector - 167622
EATON INDUSTRIES Mains Surge Protector - 167622
Image may vary slightly
See specifications for accurate information.
Reference: E347C
Brand: EATON INDUSTRIES
Mfr. Part: 167622

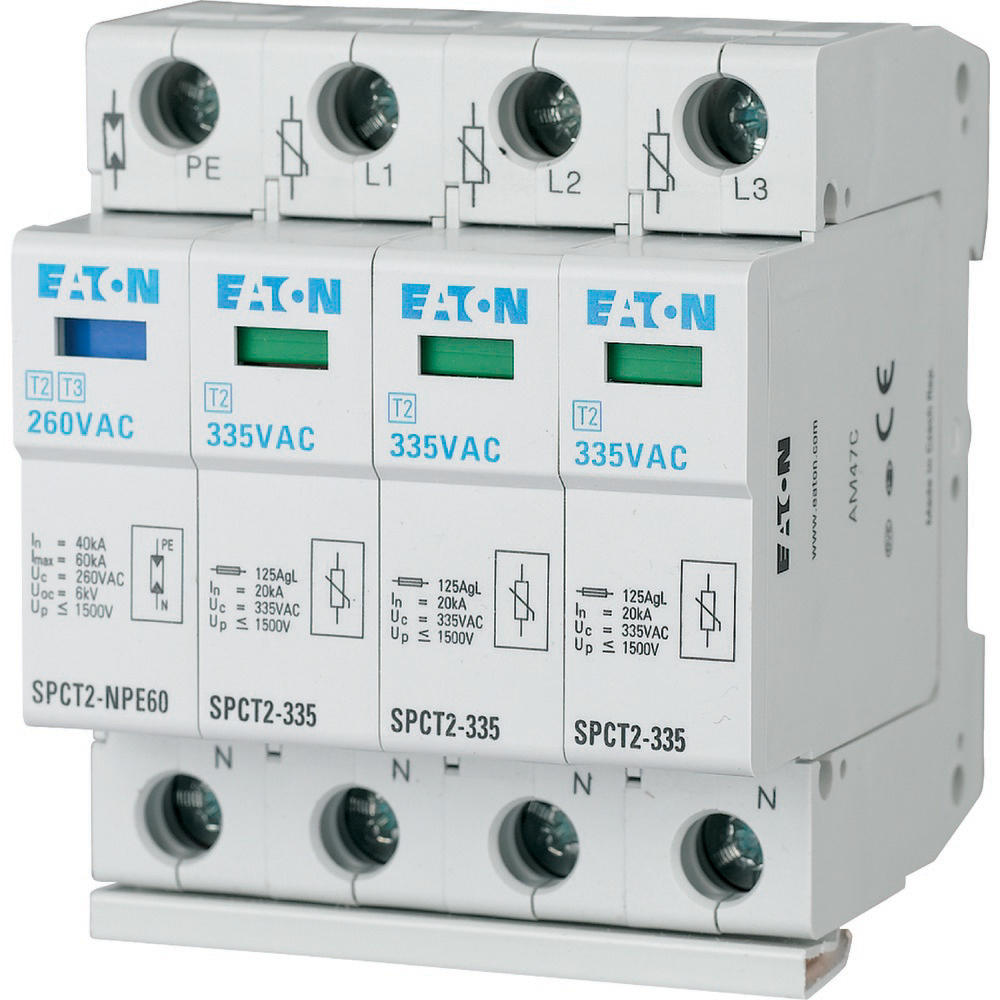

Eaton Moeller series xPole - SPCT2 Surge Protection Device. Plug-in surge arresters, 3pole+N, 335VAC, 20 kA.

View all
$205.14
excl VAT
In stock +40 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 42 - 43 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

For protecting consumer systems against transient overvoltages caused by indirect lightning strikes and switching operations, test class II is used according to IEC 61643-1+A1. The SPD-type T2 according to EN 61643-11, and SPC-S-HK auxiliary contact for remote signaling can be added. It can be bussed with all Xtra Combinations switchgear caused by indirect lightning strikes and switching operations.

Test class II is used according to IEC 61643-1+A1, SPD-type T2 according to EN 61643-11, SPC-S-HK auxiliary contact for remote signaling can be added, and it can be bussed with all Xtra Combinations switchgear.

Downloads

Specifications

System configuration DC
No
System configuration IT
Yes
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
Yes
Number of conductors (without earthing)
3
Nominal discharge surge current (8/20) (kA)
20
Max. discharge surge current (8/20) (kA)
40
Nominal voltage AC (V)
335
Nominal voltage DC (V)
0
Max. continuous voltage AC (V)
335
Max. continuous voltage DC (V)
0
Max. PV-voltage (V)
0
Voltage protection level (kV)
1.6
Voltage protection level L-N (kV)
0
Voltage protection level N-PE (kV)
0
Max. overcurrent protection device, parallel connection (fuse) (A)
0
Max. overcurrent protection device, series connection (fuse) (A)
125
Short-circuit breaking capacity (Isccr) (kA)
0
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG (A)
0
Integrated backup fuse
No
Leakage-current free
No
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded) (mm²)
25
Max. conductor cross section flexible (fine-strand) (mm²)
35
With remote signalling contact
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
