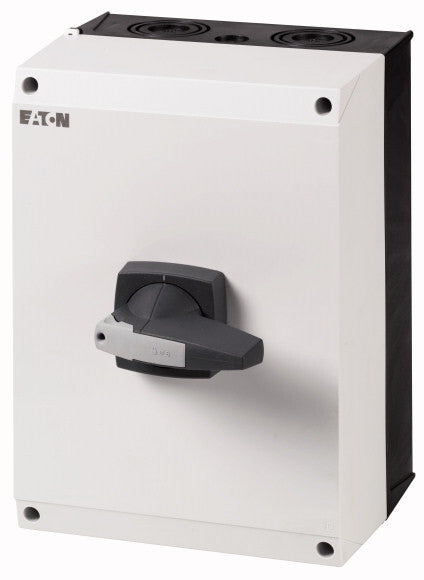

EATON INDUSTRIES Load Breaker - 172796
Eaton Industries load breaker, main switch design, working switch design, 1 switch, max. Rated operating voltage Ue at A 690V, operating voltage (measurement voltage) 690V, rated continuous current Iu 160A, rated continuous current, AC-23, 400 V 140A, rated continuous current, AC-21, 400 V 160A.
- Regular price
- $408.04 USD
We sell only to registered businesses
Description
Switch-disconnector, Product range: Switch-disconnector, Main switch, maintenance switch, Part group reference: DMM, with a grey knob.
Notes: in CI-K5 enclosure. Information about equipment supplied includes auxiliary contact fitted by the user. It has 4 poles and 1 padlock, 5 mm.
The Locking facility is lockable in the 0 (Off) position. Degree of Protection is IP65. The design is for surface mounting. Motor rating AC-23A, 50 - 60 Hz 400 V equals P = 80 kW.
The Rated uninterrupted current equals Iu = 160 A.
The standards it adheres to are:
- IEC/EN 60947
- VDE 0660
- IEC/EN 60204
The Switch-disconnector is according to IEC/EN 60947-3.
