EATON INDUSTRIES IS Recessed Switch Modular - 276272

Notice: This product is discontinued

Discontinued
EATON INDUSTRIES IS Recessed Switch Modular - 276272
EATON INDUSTRIES IS Recessed Switch Modular - 276272
EATON INDUSTRIES IS Recessed Switch Modular - 276272
EATON INDUSTRIES IS Recessed Switch Modular - 276272
EATON INDUSTRIES IS Recessed Switch Modular - 276272
EATON INDUSTRIES IS Recessed Switch Modular - 276272
EATON INDUSTRIES IS Recessed Switch Modular - 276272
EATON INDUSTRIES IS Recessed Switch Modular - 276272
Image may vary slightly
See specifications for accurate information.
Reference: E2GYP
Brand: EATON INDUSTRIES
Mfr. Part: 276272

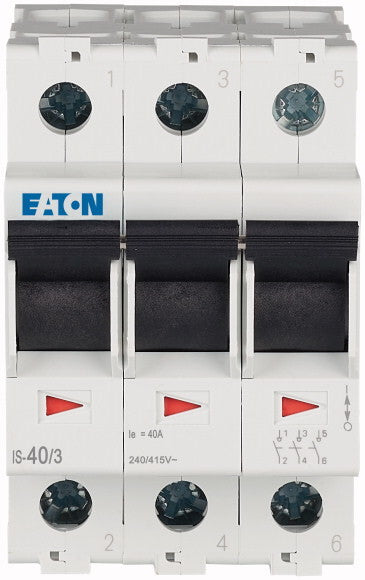

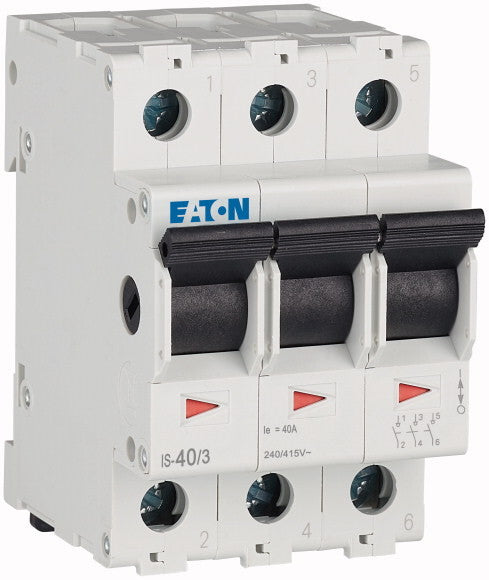

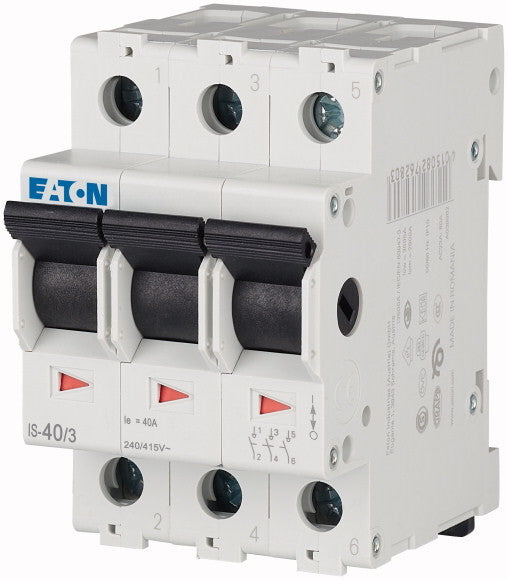

Eaton Industries IS recessed switch modular, nom. (measurement) current 40A, switching function other, 3 make contacts, 3 poles, 3 break contacts, degree of protection (IP) IP40, width in module units 3, mounting depth 69.5mm, cap (calotte) other, short-circuit resistance (Icw) 2kA, lamp type other.

View all
Note: product cannot be returned

Notice: This product is discontinued

Description
Specifications

Description

Eaton Industries IS recessed switch modular, nom. (measurement) current 40A, switching function other, 3 make contacts, 3 poles, 3 break contacts, degree of protection (IP) IP40, width in module units 3, mounting depth 69.5mm, cap (calotte) other, short-circuit resistance (Icw) 2kA, lamp type other.

Specifications

Switching function
Other
Number of contacts as normally open contact
3
Number of contacts as normally closed contact
3
Number of contacts as change-over contact
0
Number of poles
3
Rated current
40 A
Rated voltage
415 V
Min. rated voltage
240 V
Rated switching capacity
12.5 kA
Short-circuit breaking capacity (Icw)
2 kA
Voltage-type
AC
With signal lamp
No
Colour calotte
Other
Lamp type
Other
Lamp socket
Other
Max. lamp power
0 W
Width in number of modular spacings
3
Built-in depth
69.5 mm
Degree of protection (IP)i
IP40
Imprint/indication
Symbol "arrows"
