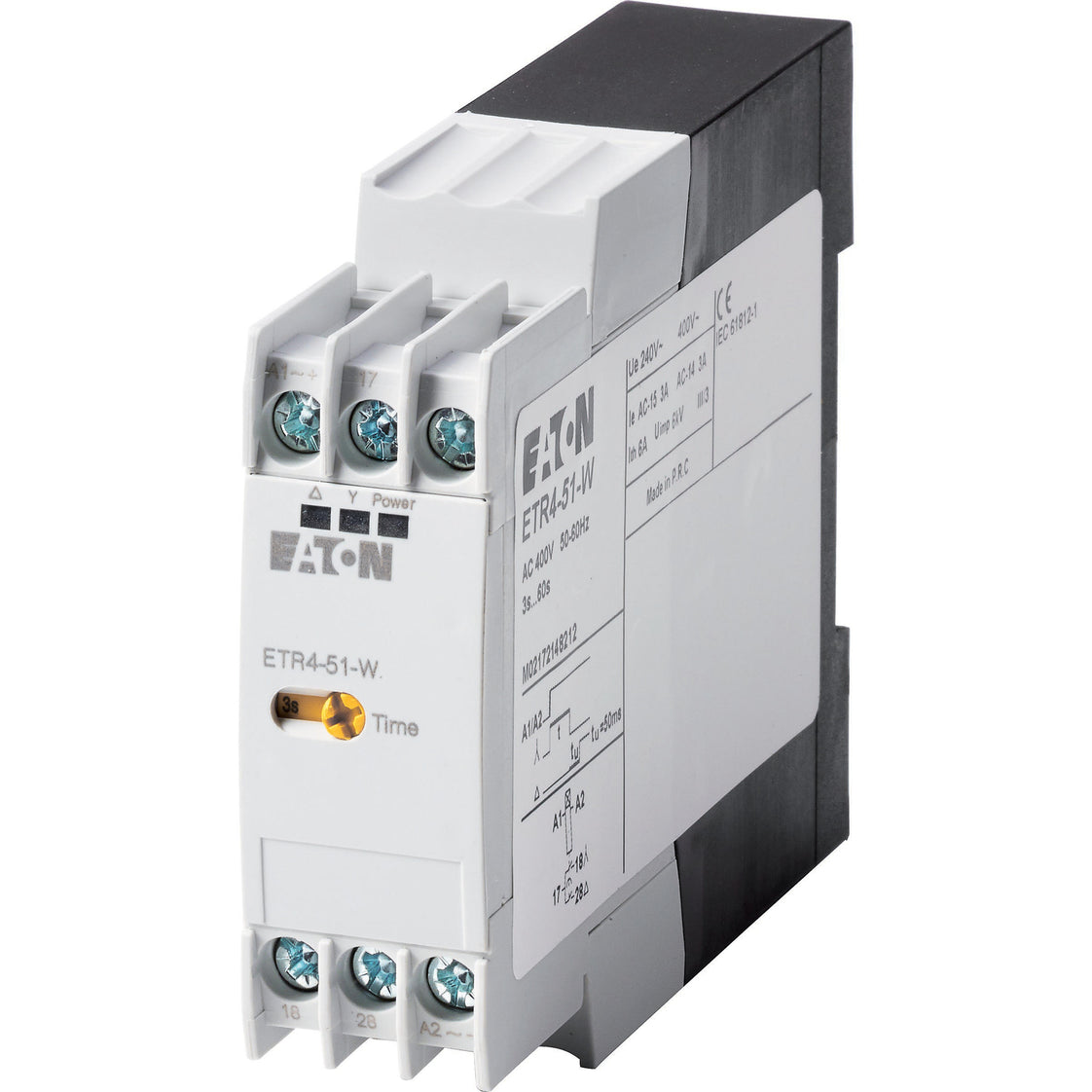

Eaton ETR4-51-W Star Delta Timer Relay 400VAC - 031885
Reference:
E3XCY
Brand:
EATON INDUSTRIES
Mfr. Part:
031885
Industrial electronic timing relay designed for star-delta switching applications. Features 22.5mm width, 3-60s adjustable time range, and 50ms switching time. Includes photoelectric input with optically isolated control, offering 30 million mechanical operations lifespan. Operates on 400VAC 50/60Hz and mounts on DIN top-hat rail in any position.
- Regular price
- $155.84 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days
We sell only to registered businesses
Description
Specifications
Downloads
Description
Industrial electronic timing relay designed for star-delta switching applications. Features 22.5mm width, 3-60s adjustable time range, and 50ms switching time. Includes photoelectric input with optically isolated control, offering 30 million mechanical operations lifespan. Operates on 400VAC 50/60Hz and mounts on DIN top-hat rail in any position.
Pros:
- 30 million operations mechanical lifespan
- Flexible 3-60 second adjustable time range
- Optically isolated control saves wiring and contacts
- Universal mounting position on DIN rail
