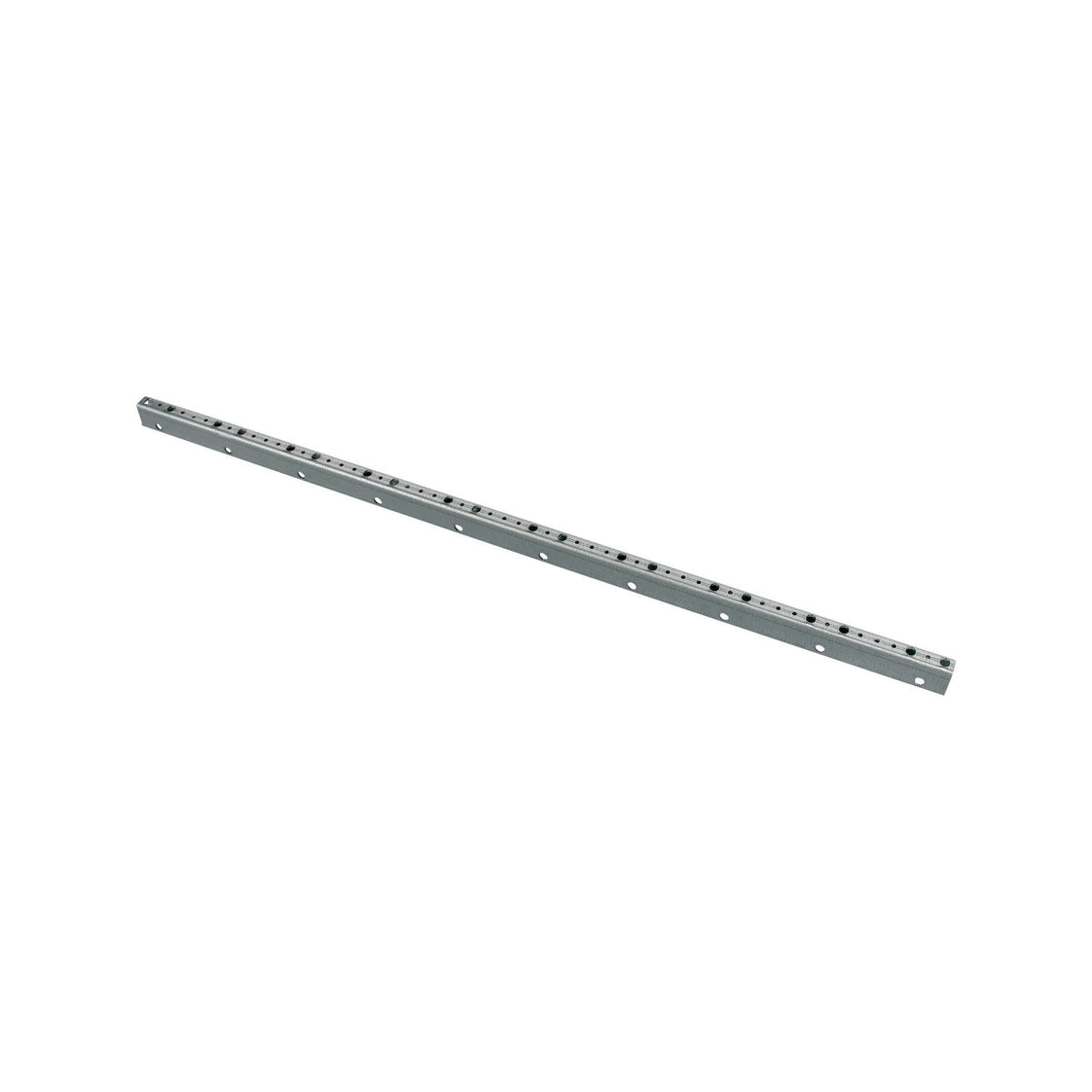

Eaton EPTV450 Vertical Mounting Rail 415mm For Module Height 450mm - 143840

Eaton EPTV450 Vertical Mounting Rail 415mm For Module Height 450mm - 143840
Eaton EPTV450 Vertical Mounting Rail 415mm For Module Height 450mm - 143840

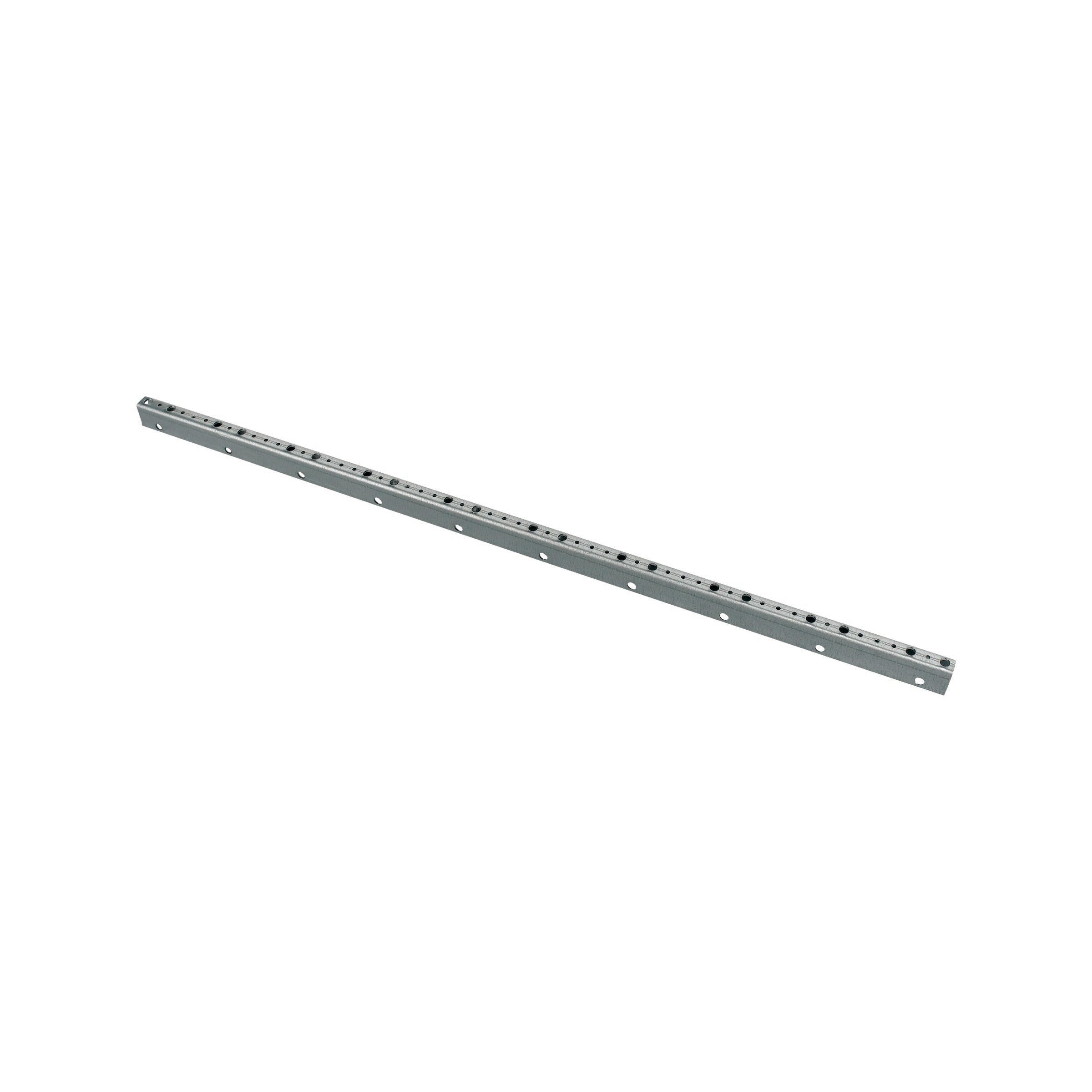

Image may vary slightly
See specifications for accurate information.
Reference: E3J64
Brand: EATON INDUSTRIES
Mfr. Part: 143840

The Eaton Industries XBoard XVTL EP profile is designed for cabinet/desk use. This steel profile features a length of 415mm and utilizes a metric design, implying that its dimensions and implementation adhere to the metric system. The profile is attached through screw fastening, ensuring a secure fit. The height of the carry rail profile is also 415mm. The surface of the profile is galvanized, offering enhanced durability and resistance to wear. It is part of the standard flush-mounting EP system, a surface mounting solution for factory finished, type-tested switchgear assemblies.

View all
Note: product cannot be returned
$9.20
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XBoard XVTL EP profile is designed for cabinet/desk use. This steel profile features a length of 415mm and utilizes a metric design, implying that its dimensions and implementation adhere to the metric system. The profile is attached through screw fastening, ensuring a secure fit. The height of the carry rail profile is also 415mm. The surface of the profile is galvanized, offering enhanced durability and resistance to wear. It is part of the standard flush-mounting EP system, a surface mounting solution for factory finished, type-tested switchgear assemblies.

Downloads

Specifications

Length (mm)
25
Width (mm)
The product's width without packaging.
16
Height (mm)
The product's height without packaging.
415
Slit width (mm)
9.5
Material thickness (mm)
2
Profile shape
U-profile
Model
Singular profile
Type of perforation
3 sides punched
Hole width (mm)
3.6
With toothing
No
Snap-off
No
Load bearing capacity (kN)
0
Area moment of inertia Iy (cm4)
0
Area of inertia Iz (cm4)
0
Moment of resistance Wy (cm³)
0
Moment of resistance Wz (cm³)
0
Suitable for circuit integrity
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Surface protection
The type of surface protection of the component.
Galvanic/electrolytic zinc plated
Color
Other
RAL-number
0
Weight (kg)
0.338
