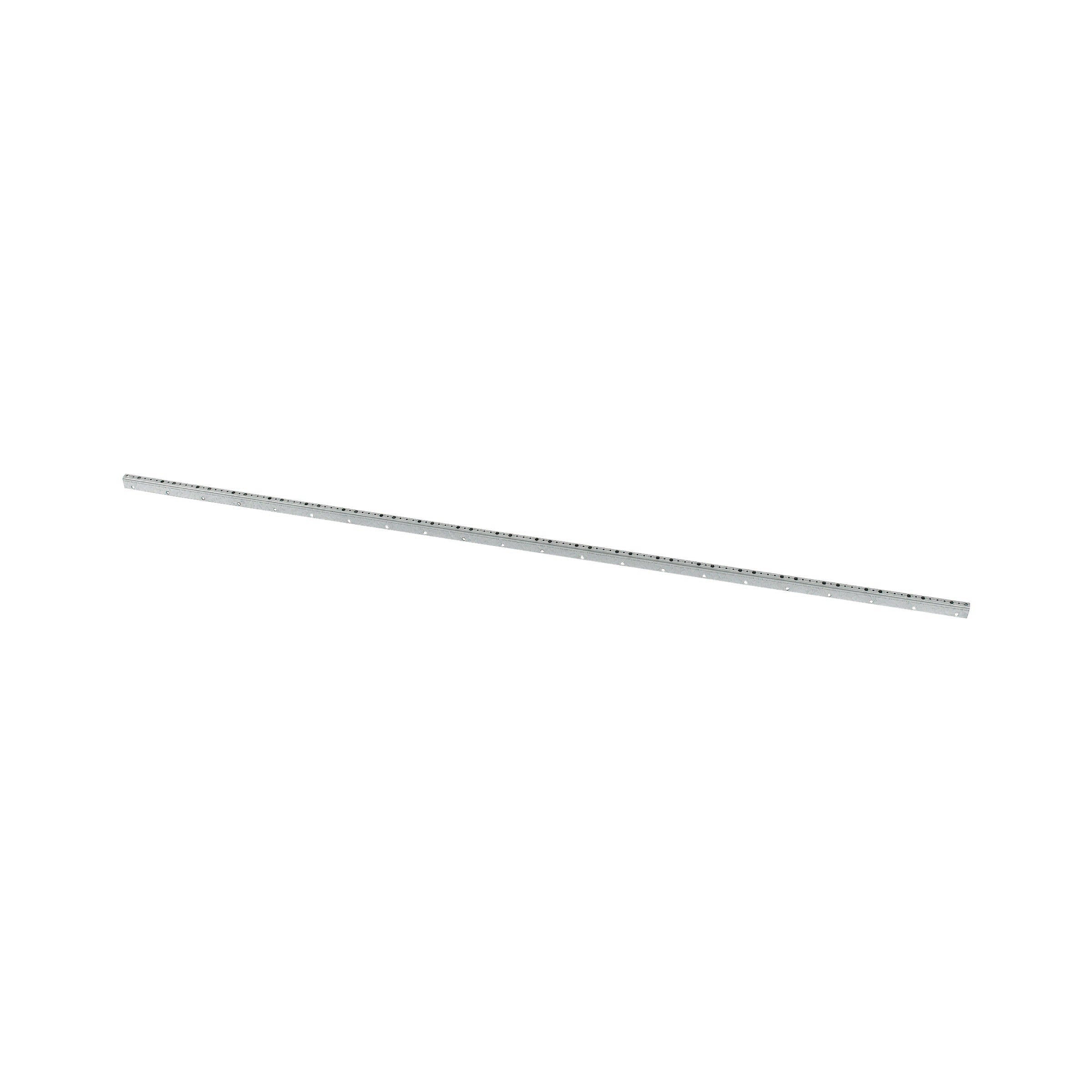

Eaton EPTV1650 Vertical Support Profile Middle 1615mm - 143848

Eaton EPTV1650 Vertical Support Profile Middle 1615mm - 143848
Eaton EPTV1650 Vertical Support Profile Middle 1615mm - 143848
Image may vary slightly
See specifications for accurate information.
Reference: E3J69
Brand: EATON INDUSTRIES
Mfr. Part: 143848

The Eaton Industries XEnergy profile is designed for cabinet or desk installations. It is made of steel and has a length of 1615mm. Its metric design uses screw fixation for easy attachment. The profile height of the support rail is also 1615mm, which provides ample space for installing components. The surface of the profile is galvanized, which increases its durability and resistance to wear and tear. It is akin to the standard flush-mounting EP system, designed for surface mounting of factory finished, type-tested switchgear assemblies.

View all
Note: product cannot be returned
$22.13
excl VAT
In stock +47 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 47 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 49 - 50 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries XEnergy profile is designed for cabinet or desk installations. It is made of steel and has a length of 1615mm. Its metric design uses screw fixation for easy attachment. The profile height of the support rail is also 1615mm, which provides ample space for installing components. The surface of the profile is galvanized, which increases its durability and resistance to wear and tear. It is akin to the standard flush-mounting EP system, designed for surface mounting of factory finished, type-tested switchgear assemblies.

Downloads

Specifications

Length (mm)
25
Width (mm)
The product's width without packaging.
16
Height (mm)
The product's height without packaging.
1615
Slit width (mm)
9.5
Material thickness (mm)
2
Profile shape
U-profile
Model
Singular profile
Type of perforation
3 sides punched
Hole width (mm)
3.6
With toothing
No
Snap-off
No
Load bearing capacity (kN)
0
Area moment of inertia Iy (cm4)
0
Area of inertia Iz (cm4)
0
Moment of resistance Wy (cm³)
0
Moment of resistance Wz (cm³)
0
Suitable for circuit integrity
No
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Material quality
Choose a housing material that will not corrode from the media and environment, and can withstand the application's temperature and pressure.
Other
Surface protection
The type of surface protection of the component.
Galvanic/electrolytic zinc plated
Color
Other
RAL-number
0
Weight (kg)
1.315
