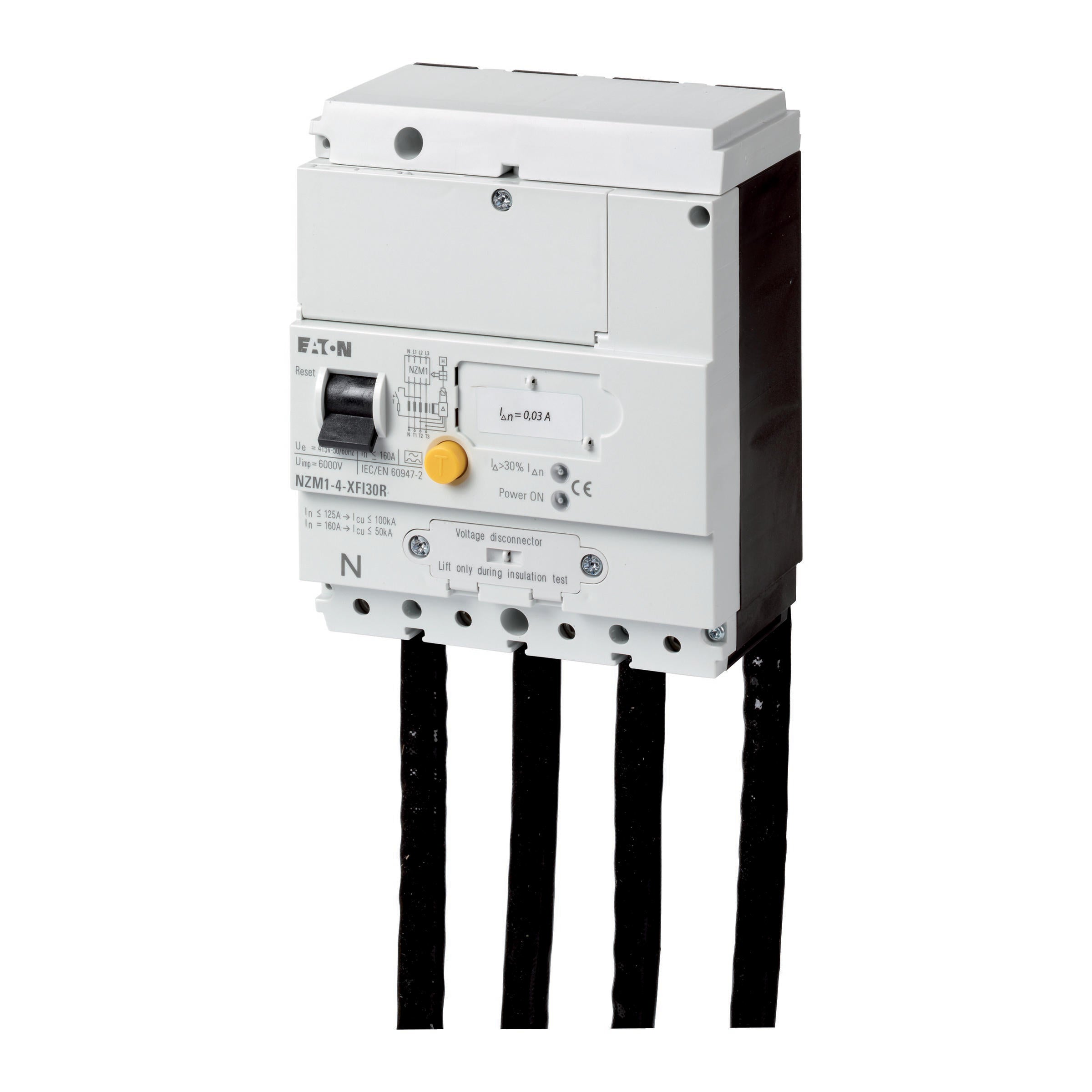

Eaton Earth-Fault Release NZM1 4 Pole 30mA Right - 104606
This is an accessory for the NZM circuit-breaker series. It offers versatile usage and simple installation due to its modular function groups. The product, suitable for three- and single-phase systems, is approved according to IEC/EN 60947-2 but is not UL/CSA approved. It operates on the core-balance principle and is suitable for 3 and 4 pole NZM1(-4) circuit-breakers and switch-disconnectors N1(-4) without requiring mains voltage. With a mains voltage independent Ue = 200 to 415 V 50/60 Hz, it functions optimally at I △n = 0.03 A, with a fixed delay time setting to 10 ms. The product has a trip indication via a yellow LED, and allows the attachment of 2 auxiliary contacts. It's not compatible with insulated enclosure, main switch assembly kit for side panel mounting with mounting bracket, shunt or undervoltage release, or early-make auxiliary contacts. This accessory is determined by the fitted NZM1, NS1 and should be used with NZM1-4, N1-4.
- Regular price
- $530.02 USD
Description
This is an accessory for the NZM circuit-breaker series. It offers versatile usage and simple installation due to its modular function groups. The product, suitable for three- and single-phase systems, is approved according to IEC/EN 60947-2 but is not UL/CSA approved. It operates on the core-balance principle and is suitable for 3 and 4 pole NZM1(-4) circuit-breakers and switch-disconnectors N1(-4) without requiring mains voltage. With a mains voltage independent Ue = 200 to 415 V 50/60 Hz, it functions optimally at I △n = 0.03 A, with a fixed delay time setting to 10 ms. The product has a trip indication via a yellow LED, and allows the attachment of 2 auxiliary contacts. It's not compatible with insulated enclosure, main switch assembly kit for side panel mounting with mounting bracket, shunt or undervoltage release, or early-make auxiliary contacts. This accessory is determined by the fitted NZM1, NS1 and should be used with NZM1-4, N1-4.
