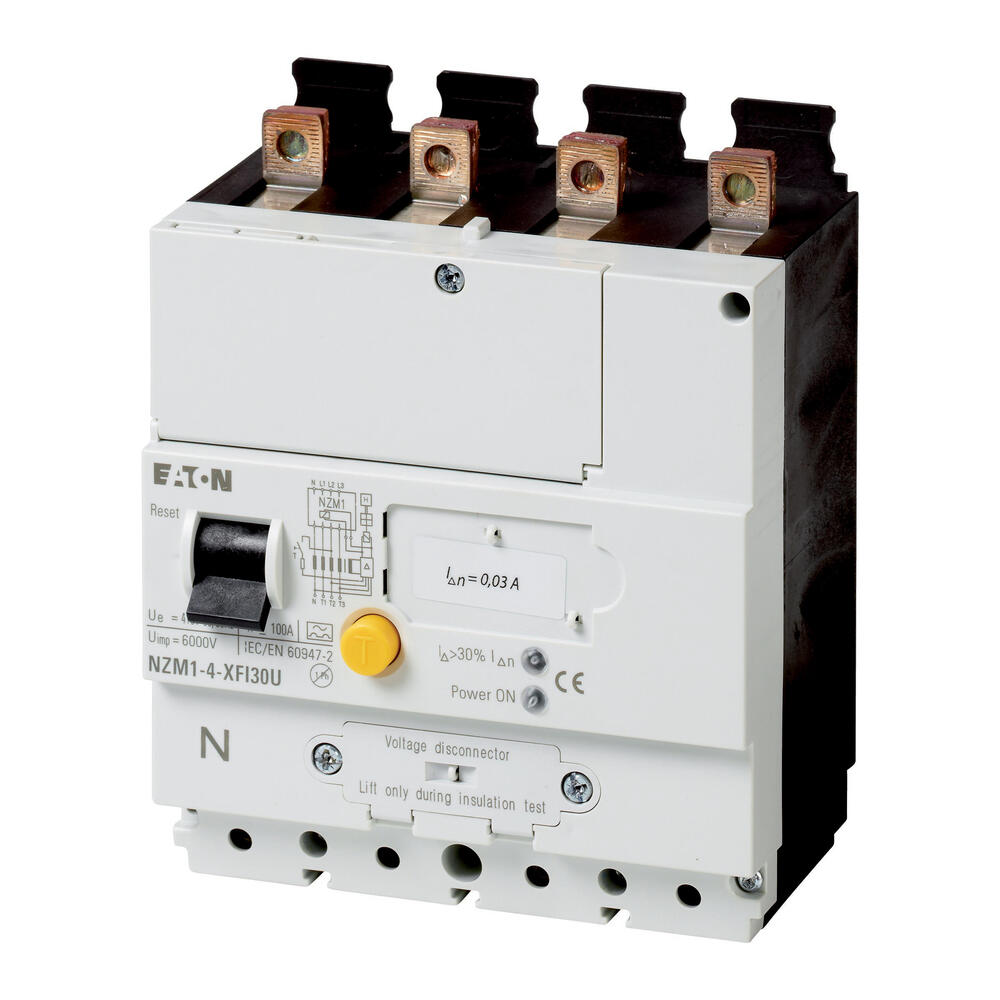

Eaton Earth Fault Protection NZM1 4P Bottom 30mA - 104612
This product is part of the NZM circuit-breaker series which offers a wide range of application options for global usage. Its modular design ensures easy and flexible mounting. It is approved according to IEC/EN 60947-2, but not UL/CSA approved, and is suitable for three- and single-phase systems that are pulse current sensitive. The product is compatible with 3 and 4 pole NZM1(-4) circuit-breakers and switch-disconnectors N1(-4) and is mains voltage independent. It has a fixed delay setting and a yellow LED trip-indication system that can notify of any fault with two optional auxiliary contacts that can be user-fitted. However, it's not to be used with insulated enclosures or main switch assembly kits, shunts, undervoltage releases, or early-make auxiliary contacts. Its ultimate short-circuit breaking capacity depends on the fitted NZM1 or NS1.
- Regular price
- $505.00 USD
Description
This product is part of the NZM circuit-breaker series which offers a wide range of application options for global usage. Its modular design ensures easy and flexible mounting. It is approved according to IEC/EN 60947-2, but not UL/CSA approved, and is suitable for three- and single-phase systems that are pulse current sensitive. The product is compatible with 3 and 4 pole NZM1(-4) circuit-breakers and switch-disconnectors N1(-4) and is mains voltage independent. It has a fixed delay setting and a yellow LED trip-indication system that can notify of any fault with two optional auxiliary contacts that can be user-fitted. However, it's not to be used with insulated enclosures or main switch assembly kits, shunts, undervoltage releases, or early-make auxiliary contacts. Its ultimate short-circuit breaking capacity depends on the fitted NZM1 or NS1.
