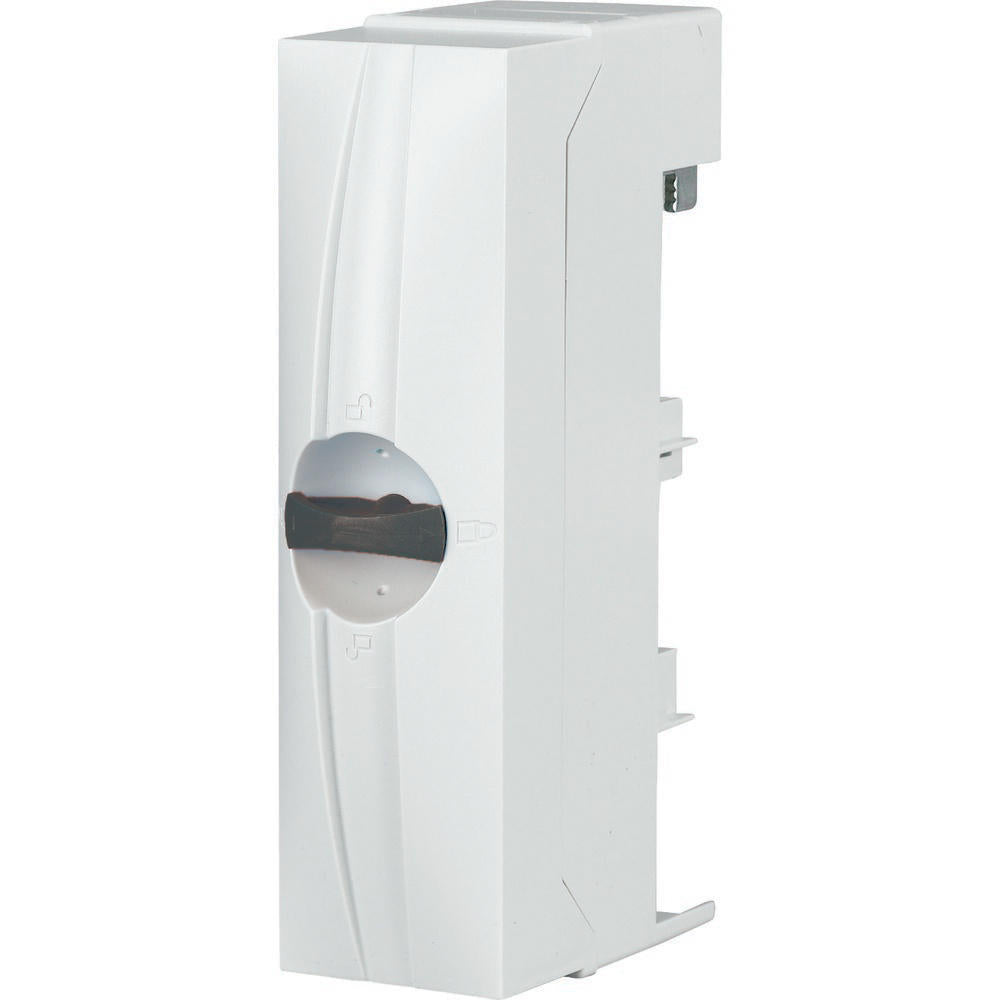

Eaton Connection Terminal Board 3P 35-150mm2 90mm Compact - 138373
The Eaton Industries XEffect Connection Terminal Board is suitable for a 60-mm compact system with 3 poles, features screw terminals, and has a terminal capacity of 35 up to 150mm², AWG2-MCM300, 10x20x1, or 10x16x0.8. It has a nominal operating current (Ie) of 480A, a width of 90mm, and can be utilized for rail dimensions of 12x5/10. It is free of silicon and chlorine, and is self-extinguishing according to UL 94 standards. It has a Comparative Tracking Index (CTI) resistance of 200 and is temperature resistant up to 120°C. The terminal can be removed for the connection of uncut conductors, although passing through is not possible.
- Regular price
- $98.61 USD
We sell only to registered businesses
Description
The Eaton Industries XEffect Connection Terminal Board is suitable for a 60-mm compact system with 3 poles, features screw terminals, and has a terminal capacity of 35 up to 150mm², AWG2-MCM300, 10x20x1, or 10x16x0.8. It has a nominal operating current (Ie) of 480A, a width of 90mm, and can be utilized for rail dimensions of 12x5/10. It is free of silicon and chlorine, and is self-extinguishing according to UL 94 standards. It has a Comparative Tracking Index (CTI) resistance of 200 and is temperature resistant up to 120°C. The terminal can be removed for the connection of uncut conductors, although passing through is not possible.
