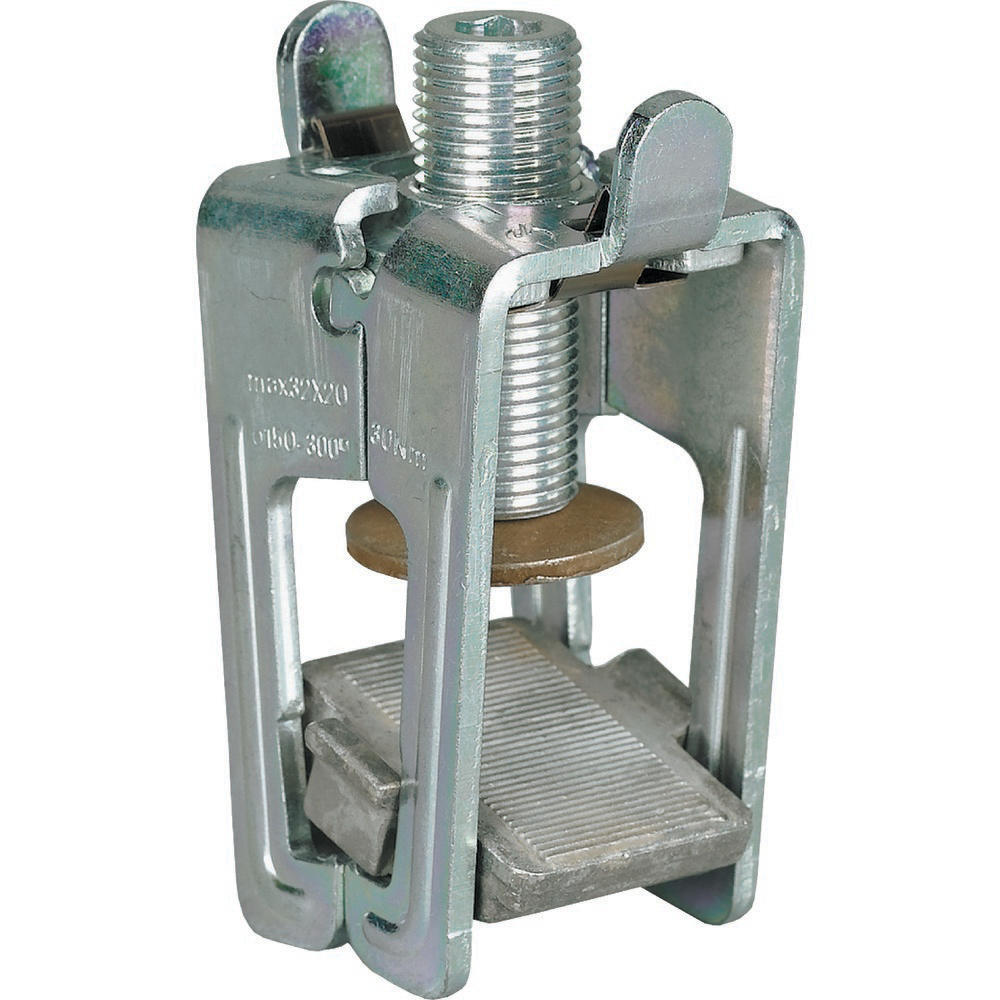

Eaton Clamp Terminal For Copper Band 20x5-30x10 500A - 107197 [3 Pieces]

Eaton Clamp Terminal For Copper Band 20x5-30x10 500A - 107197 [3 Pieces]
Eaton Clamp Terminal For Copper Band 20x5-30x10 500A - 107197 [3 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3ETP-X3
Brand: EATON INDUSTRIES
Mfr. Part: 107197

This is a clamp terminal compatible with SASY60i and SASY185i with a termination space of 32x25mm. It is designed for busbars ranging from 20x5/10mm to 30x10mm, and can accommodate double T and triple T profile-profiles. The width of this terminal clamp is 41mm, with a current rating of 800A. The terminal can handle capacities of 3x20x1 up to 2x (10x32x1) or 32x25. It is suitable for connecting band conductors, round conductors, and sector conductors, with a maximum conductor cross-section of 800mm².

Contains 3 pieces

View all
Note: product cannot be returned
$101.39
excl VAT
In stock +23 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 23 days. Up to 29 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 25 - 26 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a clamp terminal compatible with SASY60i and SASY185i with a termination space of 32x25mm. It is designed for busbars ranging from 20x5/10mm to 30x10mm, and can accommodate double T and triple T profile-profiles. The width of this terminal clamp is 41mm, with a current rating of 800A. The terminal can handle capacities of 3x20x1 up to 2x (10x32x1) or 32x25. It is suitable for connecting band conductors, round conductors, and sector conductors, with a maximum conductor cross-section of 800mm².

Contains 3 pieces

Downloads

Specifications

Busbar thickness (mm)
5 mm to 10 mm
Busbar width (mm)
20 mm to 30 mm
Suitable for
Flat rail
Width clamp (mm)
41
Max. conductor cross section (mm²)
800
Max. rated operation current Ie (A)
800
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
Yes
Suitable for strip conductor connection
Yes
