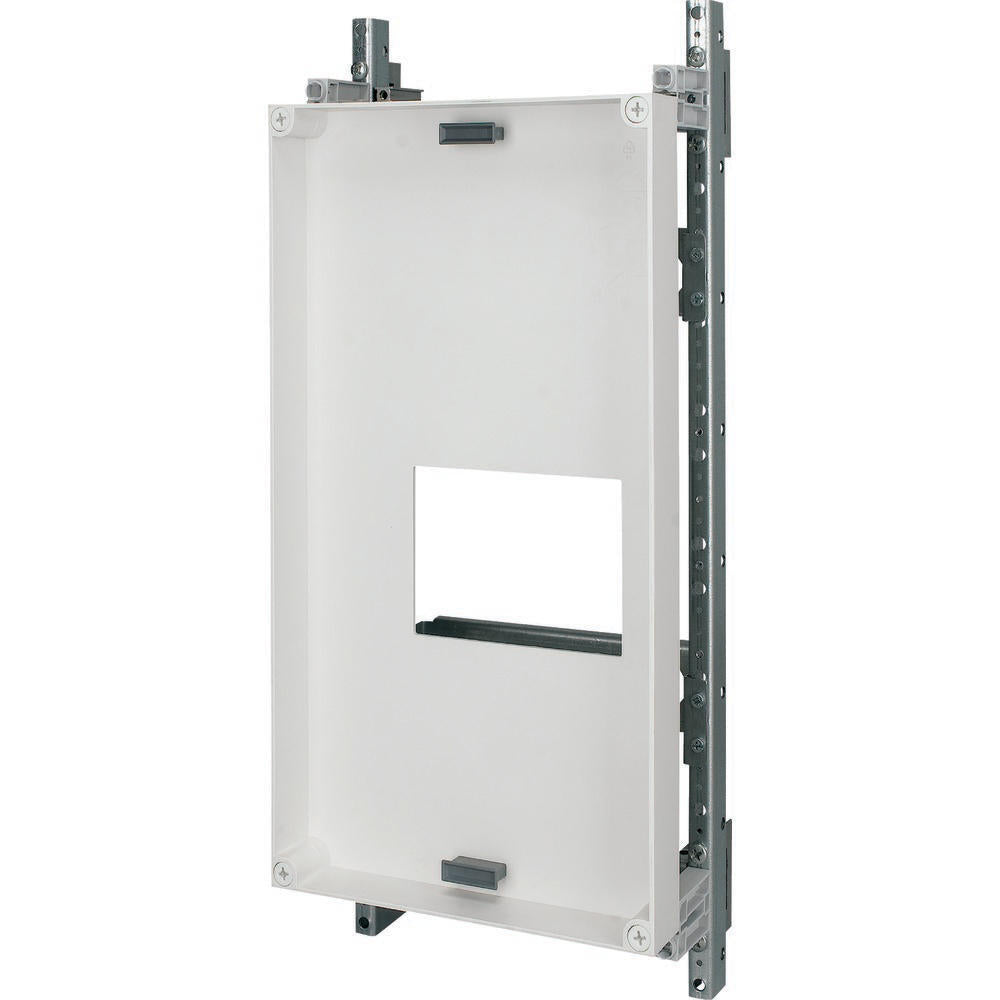

Eaton Circuit Breaker Mounting Unit NZM1 160A 3P 4P EP22NZM1-OG - 143975

Eaton Circuit Breaker Mounting Unit NZM1 160A 3P 4P EP22NZM1-OG - 143975
Eaton Circuit Breaker Mounting Unit NZM1 160A 3P 4P EP22NZM1-OG - 143975
Image may vary slightly
See specifications for accurate information.
Reference: E3FX2
Brand: EATON INDUSTRIES
Mfr. Part: 143975

The Eaton Industries XBoard EP is a flush-mounting unit designed for component assembly. It is constructed from steel and measures 250mm by 107mm by 300mm, with an assembly depth of 107mm. The unit comes with a cover and a mounting plate, which is of the module type. It is intended for use with the NZM1 300A 3/4P series cabinet. As a standard EP system, it is designed for surface mounting of factory-finished, type-tested switchgear assemblies.

View all
Note: product cannot be returned
$106.60 USD
excl VAT
In stock Ships in 16d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 27 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 18 - 19 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications

Description

The Eaton Industries XBoard EP is a flush-mounting unit designed for component assembly. It is constructed from steel and measures 250mm by 107mm by 300mm, with an assembly depth of 107mm. The unit comes with a cover and a mounting plate, which is of the module type. It is intended for use with the NZM1 300A 3/4P series cabinet. As a standard EP system, it is designed for surface mounting of factory-finished, type-tested switchgear assemblies.

Specifications

Heighti
300 mm
Widthi
250 mm
Depthi
41.5 mm
With cover
Yes
Plastic cover plate
Yes
Number of poles
4
Suitable for switch disconnector
Yes
Equipped with switch disconnector
No
Suitable for power circuit breaker
Yes
Equipped with power circuit-breaker
No
Suitable for no-voltage switch
No
Equipped with no-voltage switch
No
Suitable for reverser
No
Equipped with reverser
No
Rated operation current
160 A
Number of switches
1
With auxiliary terminal
No
