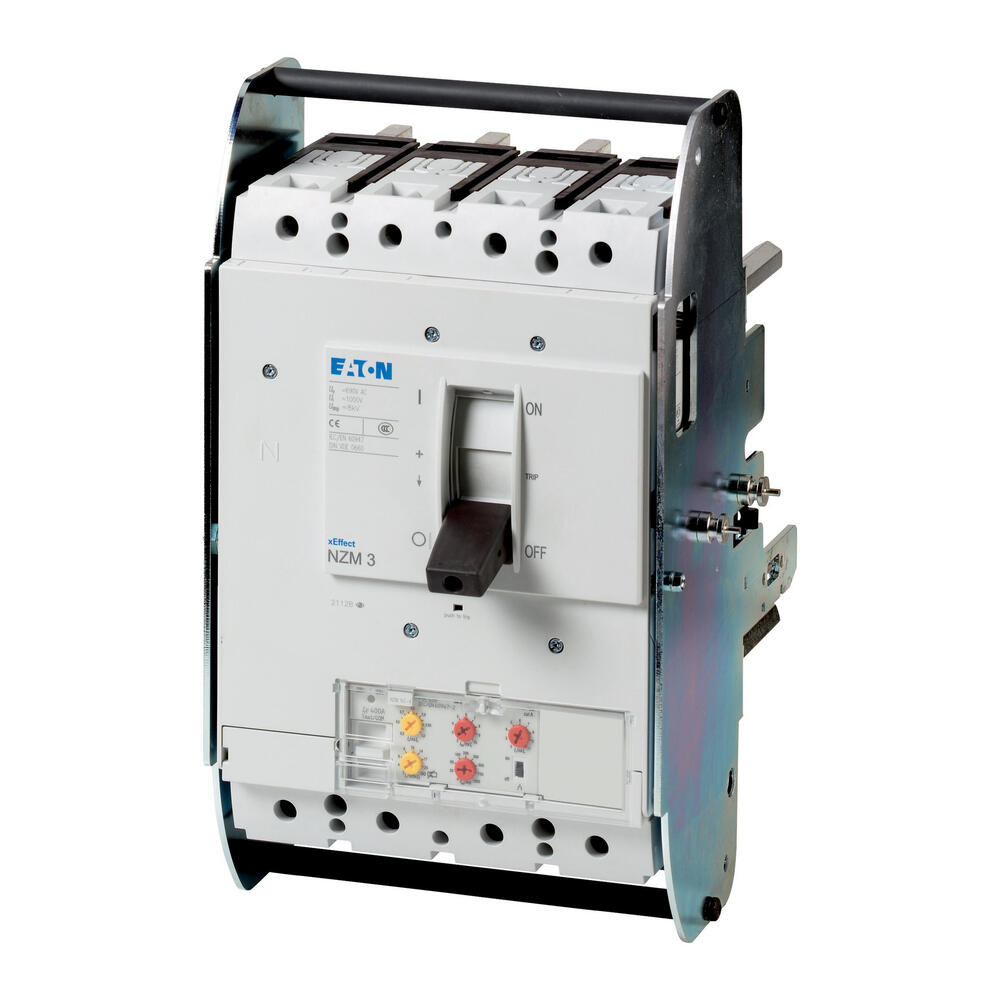

Eaton Circuit Breaker 4P 630A Withdrawable Unit NZMN3 - 110877
The Eaton Industries MCCB Circuit-breaker NZM3 boasts of a four pole switching capability with a rated uninterrupted current (In = Iu) of 630A. It has a switching capacity of 50 kA at 400/415 V 50 Hz, and a nominal voltage of 690V. It comes with a rated current, adjustable overload protection in the range of 315 - 630A, momentarily delayed setting of 472 - 4410A, and non-delayed short circuit setting of 1260 - 5040A. The installation type is withdrawable and uses a screw connection. This breaker is approved under IEC standards and has protective functions including systems, cable, selectivity and generator protection.
- Regular price
- $4,171.91 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB Circuit-breaker NZM3 boasts of a four pole switching capability with a rated uninterrupted current (In = Iu) of 630A. It has a switching capacity of 50 kA at 400/415 V 50 Hz, and a nominal voltage of 690V. It comes with a rated current, adjustable overload protection in the range of 315 - 630A, momentarily delayed setting of 472 - 4410A, and non-delayed short circuit setting of 1260 - 5040A. The installation type is withdrawable and uses a screw connection. This breaker is approved under IEC standards and has protective functions including systems, cable, selectivity and generator protection.
