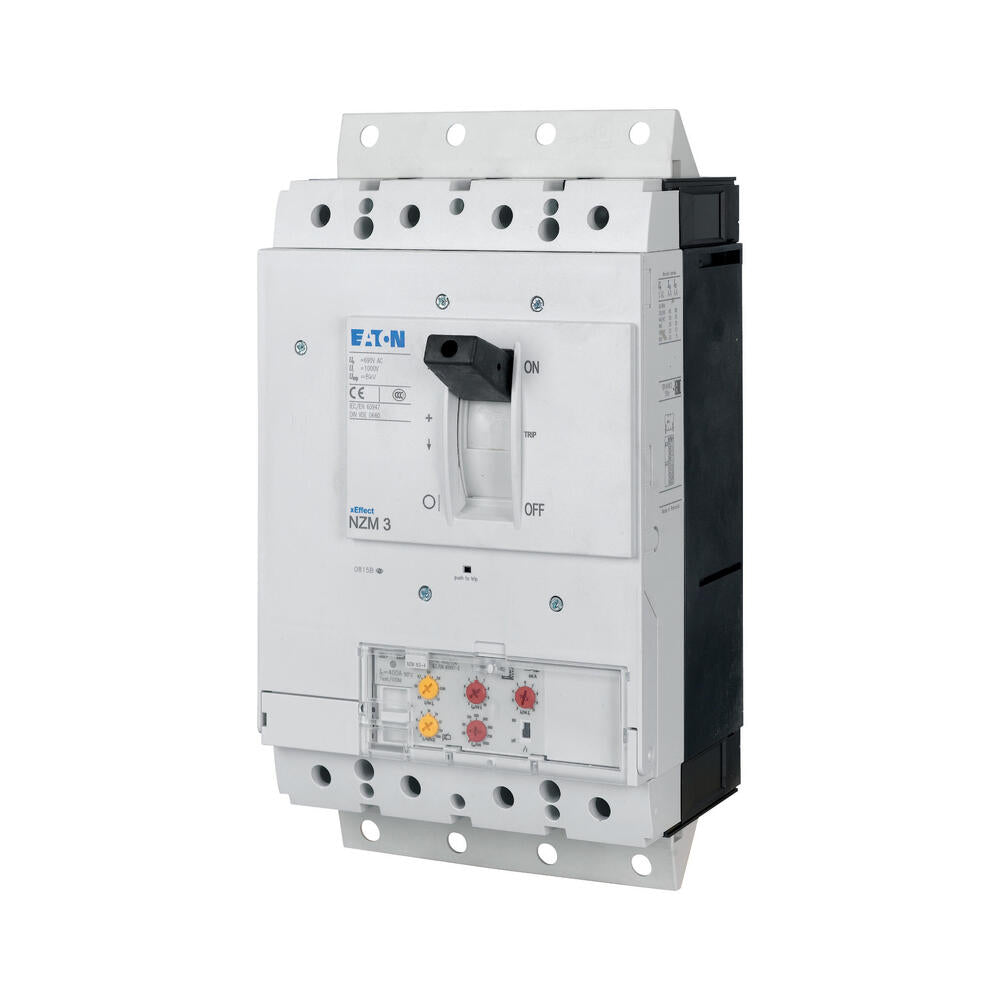

Eaton Circuit Breaker 4P 630A Plug-In Module NZMN3-4-VE630-SVE 50KA IEC - 168507
The Eaton Industries MCCB circuit breaker is equipped with four poles and has a nominal continuous current of 630A with a nominal voltage of 690V. It has a nominal breaking capacity of 50kA at 400/415V 50Hz, compliant with IEC standards. The protective function of the asset includes systems, cable, selectivity, and generator protections. Its overload protection setting range is 315-630A and boasts an adjustable short-term delay range from 100-4410A, and instantaneous short-circuit setting range between 1260-5040A.
- Regular price
- $4,037.04 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB circuit breaker is equipped with four poles and has a nominal continuous current of 630A with a nominal voltage of 690V. It has a nominal breaking capacity of 50kA at 400/415V 50Hz, compliant with IEC standards. The protective function of the asset includes systems, cable, selectivity, and generator protections. Its overload protection setting range is 315-630A and boasts an adjustable short-term delay range from 100-4410A, and instantaneous short-circuit setting range between 1260-5040A.
