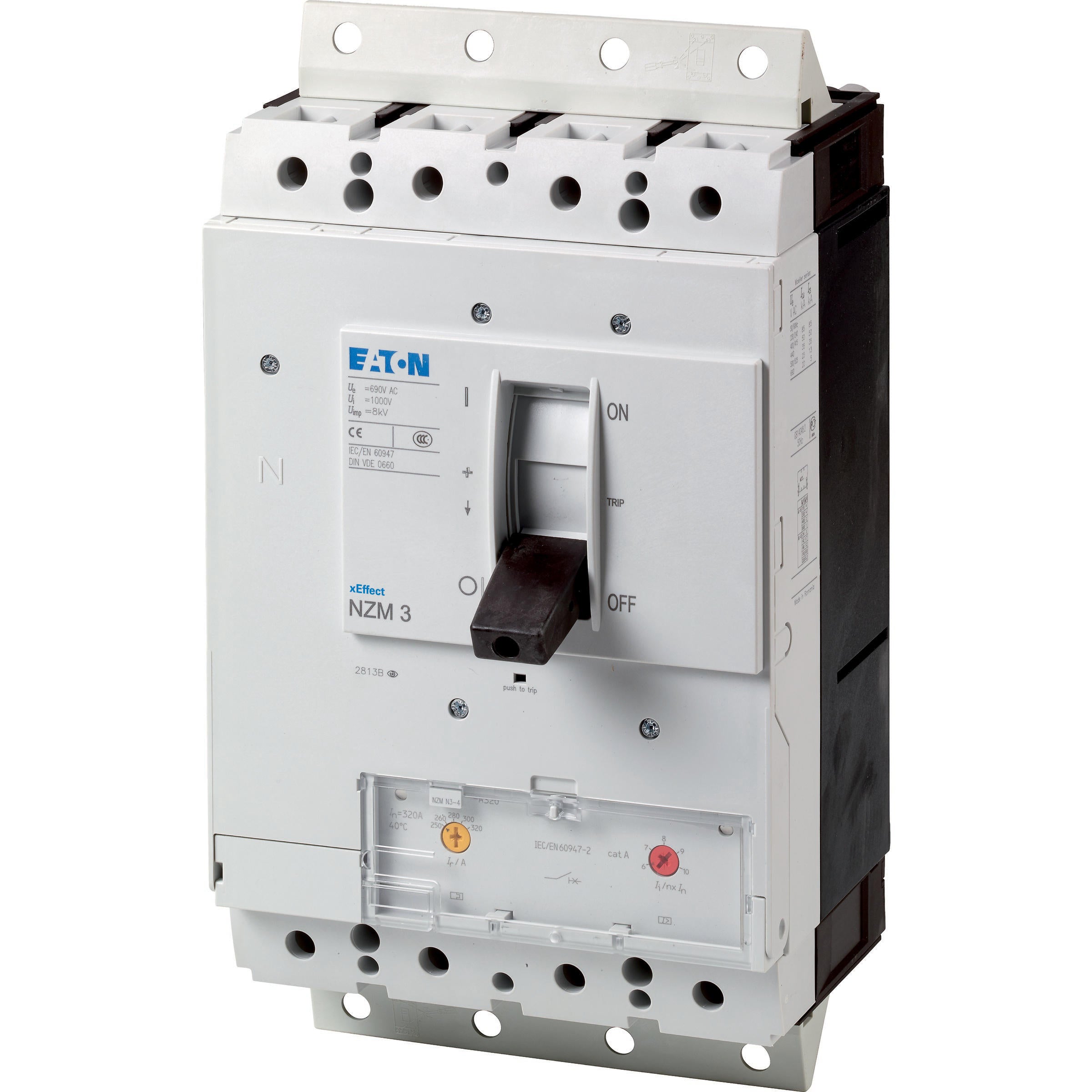

Eaton Circuit-Breaker 4P 400A 50KA Plug-In Module NZMN3-4-A400-SVE - 168510

Eaton Circuit-Breaker 4P 400A 50KA Plug-In Module NZMN3-4-A400-SVE - 168510
Eaton Circuit-Breaker 4P 400A 50KA Plug-In Module NZMN3-4-A400-SVE - 168510
Image may vary slightly
See specifications for accurate information.
Reference: E3KD4
Brand: EATON INDUSTRIES
Mfr. Part: 168510

The Eaton Industries MCCB circuit-breaker is part of their NZM series. With just four compact sizes, the series covers all application cases and is suitable for the IEC market. These modular function groups are designed to provide flexibility in mounting. The circuit-breaker features thermomagnetic releases for system and cable protection. It is important to note that the set value in the neutral conductor syncs with the set value Ir of the phase conductor.

View all
Note: product cannot be returned
$2381.63
excl VAT
In stock +33 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 33 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 35 - 36 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries MCCB circuit-breaker is part of their NZM series. With just four compact sizes, the series covers all application cases and is suitable for the IEC market. These modular function groups are designed to provide flexibility in mounting. The circuit-breaker features thermomagnetic releases for system and cable protection. It is important to note that the set value in the neutral conductor syncs with the set value Ir of the phase conductor.

Downloads

Specifications

Rated permanent current Iu (A)
400
Rated voltage (V)
690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA)
50
Overload release current setting (A)
320 A to 400 A
Adjustment range short-term delayed short-circuit release (A)
0 A to 0 A
Adjustment range undelayed short-circuit release (A)
6 A to 10 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device plug-in technique
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
With integrated under voltage release
No
Number of poles
4
Position of connection for main current circuit
Front side
Type of control element
Rocker lever
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
